Overview

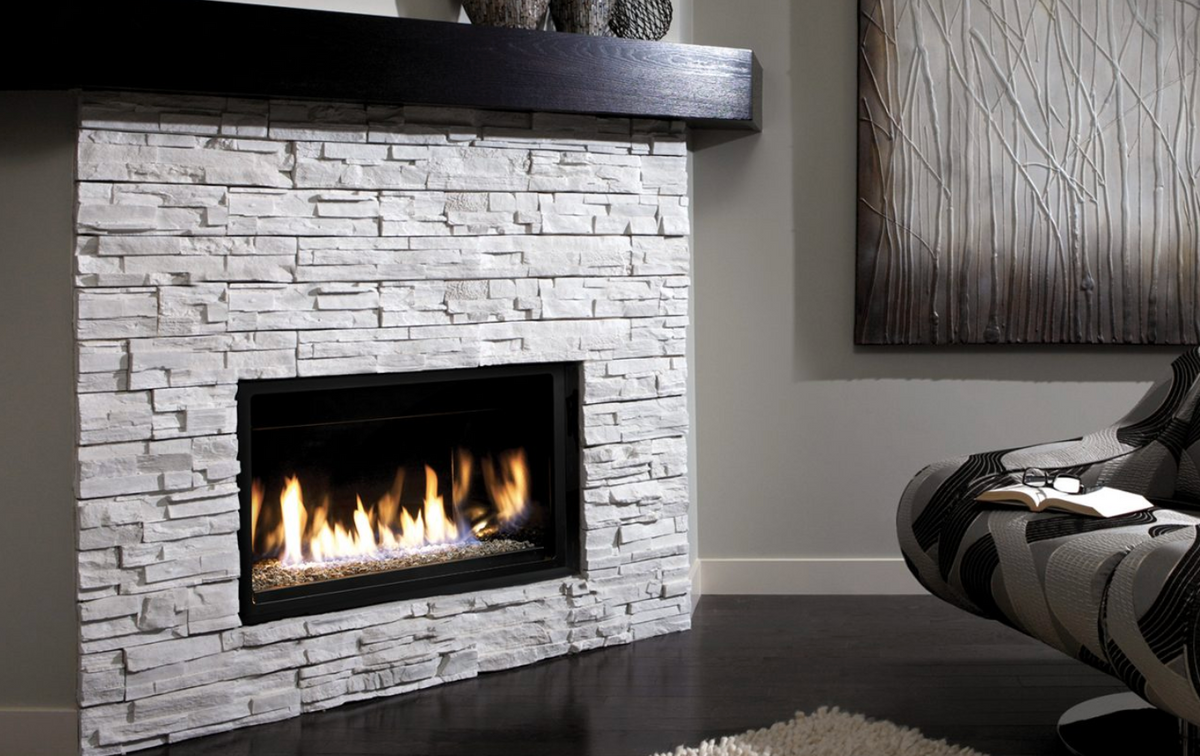

Warm up your favourite room with the beauty of the ZCV 36" Linear Fireplace.
Features:
- Hi/Low Millivolt or IPI valve system will operate during power failures.
- Decorative Bronze Glass
- Mobile Home, Bedroom and Bed Sitting Room approved
- Safety Screen Barrier
- Linear Burner
- Wall Switch
- Tempered Glass
- Listed for USA/Canada as a Vented Gas Fireplace
Specifications:
| Model | ZCVRB3622N/NE | ZCVRB3622LP/LPE |
| Fuel | Natural Gas | Propane |
| Flue | Top | Top |
| Gas Control | Millivolt/IPI | Millivolt/IPI |
| Max BTU | 17,500 | 17,500 |
| Min BTU | 12,000 | 14,000 |
| FE (p.4.1-02)% | 61.36% / 65.82% | 62.72% / 64.55% |
| Venting | 4/7" | 4/7" Flex or 4/6 5/8" Hard Pipe |
| Viewing Area | 29 3/4" W x 16 1/8" H | 29 3/4" W x 16 1/8" H |
| Actual Width | 36" | 36" |
| Actual Height | 37 1/8" | 37 1/8" |
| Actual Depth | 17 7/16" | 17 7/16" |
| Framing Width | 36 3/8" | 36 3/8" |
| Framing Height | 37 1/4" | 37 1/4" |
| Framing Depth | 17 1/2" | 17 1/2" |
