Overview

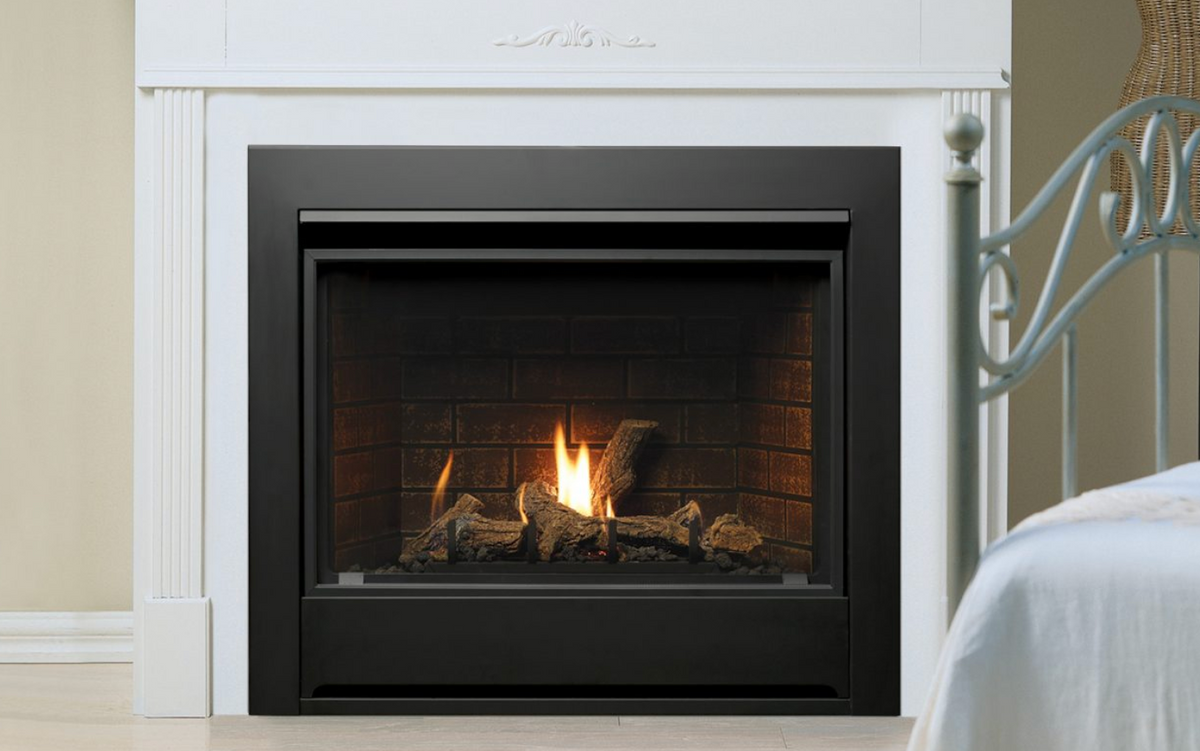

Enjoy the elegance and warmth of glowing embers and dancing flames around our traditional oak log set. It is sure to be the focal point of your home. Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long lasting value. With a fully sealed combustion chamber there is no pollution spillage to depreciate the indoor air quality of your home.
Features:
- Hi/low Millivolt or IPI valve system, will operate during power failures
- Proprietary burner, with realistic burn
- Mobile Home, Bedroom and Bed Sitting Room approved
- Safety Screen Barrier
- Tube Burner
- Tempered Glass
- Listed for USA/Canada as a Vented Gas Fireplace

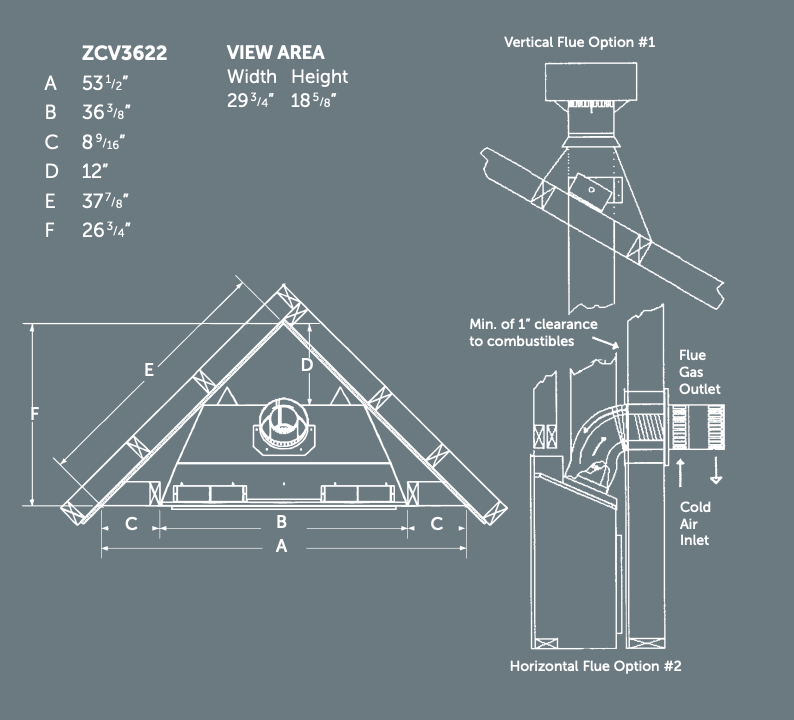

Specifications:
| Model | ZCV3622N/NE | ZCV3622LP/LPE |
| Fuel | Natural Gas | Propane |
| Flue | Top | Top |
| Gas Control | Millivolt/IPI | Millivolt/IPI |
| Max BTU | 18,000 | 18,000 |
| Min BTU | 13,000 | 15,000 |
| FE (p.4.1-02)% | 60.54% / 63.46% | 62.09% / 65.09% |
| Venting | 4/7" | 4/7" Flex or 4/6 5/8" Hard Pipe |
| Viewing Area | 29 3/4" W x 18 5/8" H | 29 3/4" W x 18 5/8" H |
| Actual Width | 36" | 36" |
| Actual Height | 37 1/8" | 37 1/8" |
| Actual Depth | 17 7/16" | 17 7/16" |
| Framing Width | 36 3/8" | 36 3/8" |
| Framing Height | 37 1/4" | 37 1/4" |
| Framing Depth | 17 1/2" | 17 1/2" |
