Overview
Kingsman’s Direct Vent models are easily adaptable to our patented Designer Clean View technology or standard louvers. Enjoy an incredible line of options and styles – from contemporary to classic – plus the beauty and pleasure of a cozy fire.
Features:
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- Dual burner with Realistic Flame Pattern
- A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
- Safety Screen Barrier
- Tempered Glass
- Wall Switch
- Listed for USA/Canada as a Vented Gas Fireplace
Specifications:
| Model | HBZDV3624N/NE | HBZDV3624LP/LPE |
| Fuel | Natural Gas | Propane |
| Flue | Top | Top |
| Gas Control | Millivolt/IPI | Millivolt/IPI |
| Max BTU | 24,000 | 22,000 |
| Min BTU | 14,000 | 15,000 |
| FE (p.4.1-02)% | 50.48% / 52.30% | 52.59% / 54.24% |
| Venting | 4/7" Flex or 4/6 5/8" Hard Pipe | 4/7" Flex or 4/6 5/8" Hard Pipe |

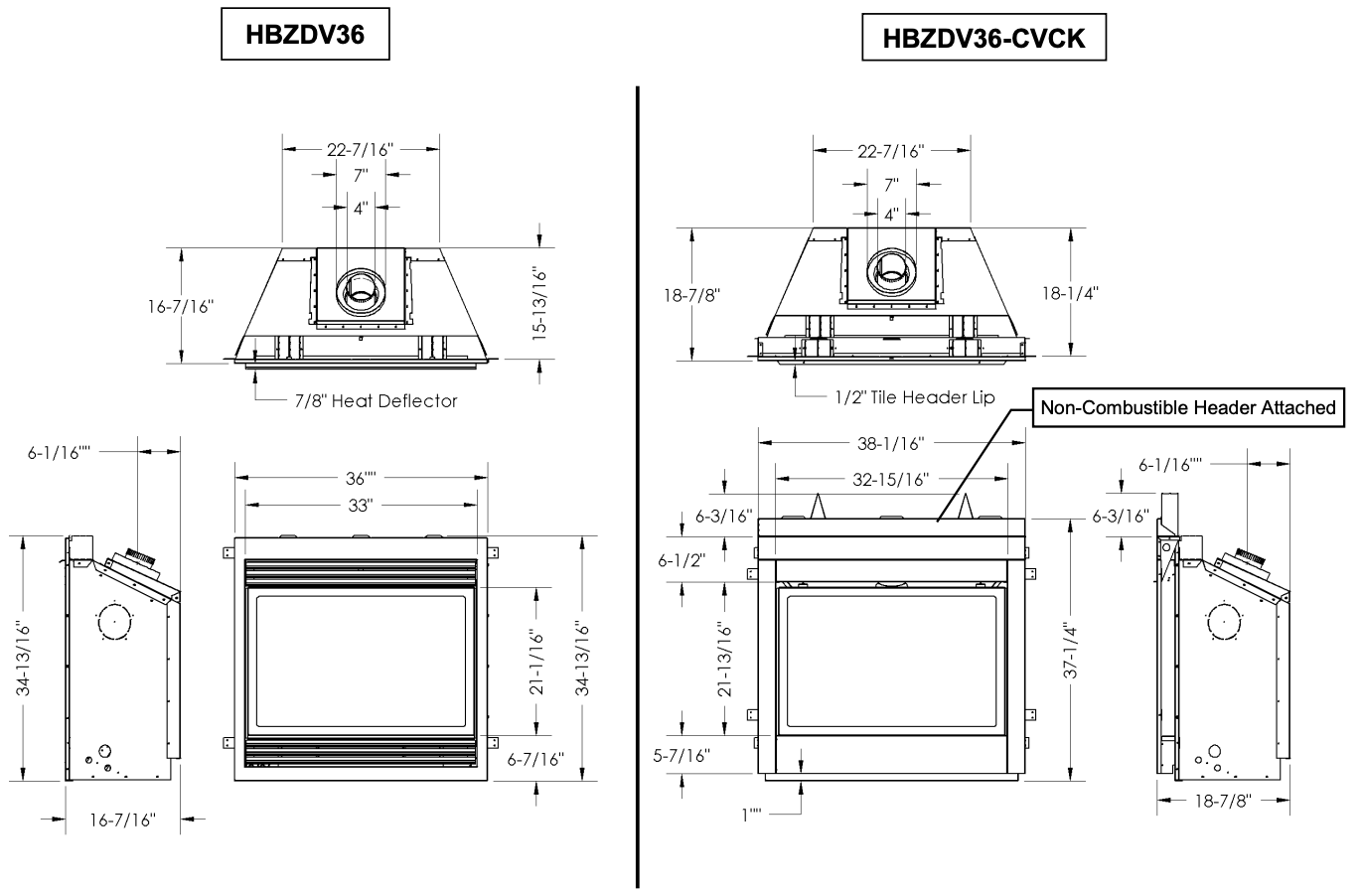

| Viewing Area | 29 3/4" W x 18 5/8" H | 29 3/4" W x 18 5/8" H |
| Actual Width (CVCK) | 38 1/16" | 38 1/16" |
| Actual Height (CVCK) | 34 11/16" | 34 11/16" |
| Actual Depth(CVCK) | 18 7/8" | 18 7/8" |
| Actual Width (Louvers) | 36" | 36" |
| Actual Height (Louvers) | 34 13/16" | 34 13/16" |
| Actual Depth(Louvers) | 16 7/16" | 16 7/16" |
