Overview
Make the most of the best view in the house with the MCVP 42" Zero Clearance Direct Vent Peninsula Gas Fireplaces. Ideally suited for new construction or renovations anywhere in your home.
Features:
- Dedicated Clean View appliance
- Millivolt or IPI valve system allows operation during a power failure with Hi/Low heat and flame adjustment
- Safety Screen Barrier
- Wall Switch
- Tempered or Ceramic Glass
- RH Burner
- Choice of log set or glass media
Specifications:
| Model | MCVP42N/NE | MCVP42LP/LPE | MCVP42NH/NHE | MCVP42LPH/LPHE |
| Fuel | Natural Gas | Propane | Natural Gas | Propane |
| Flue | Top | Top | Top | Top |
| Gas Control | Millivolt/IPI | Millivolt/IPI | Millivolt/IPI | Millivolt/IPI |
| Max BTU | 30,250 | 28,500 | 31,250 | 29,000 |
| Min BTU | 21,000 | 23,000 | 21,250 | 23,000 |
| FE (p.4.1-02)% | 53.00% / 54.63% | 53.82% / 55.32% | 64.55% / 66.49% | 65.66% / 67.42% |
| Venting | 5/8" | 5/8" | 5/8" | 5/8" Flex or Hard Pipe |

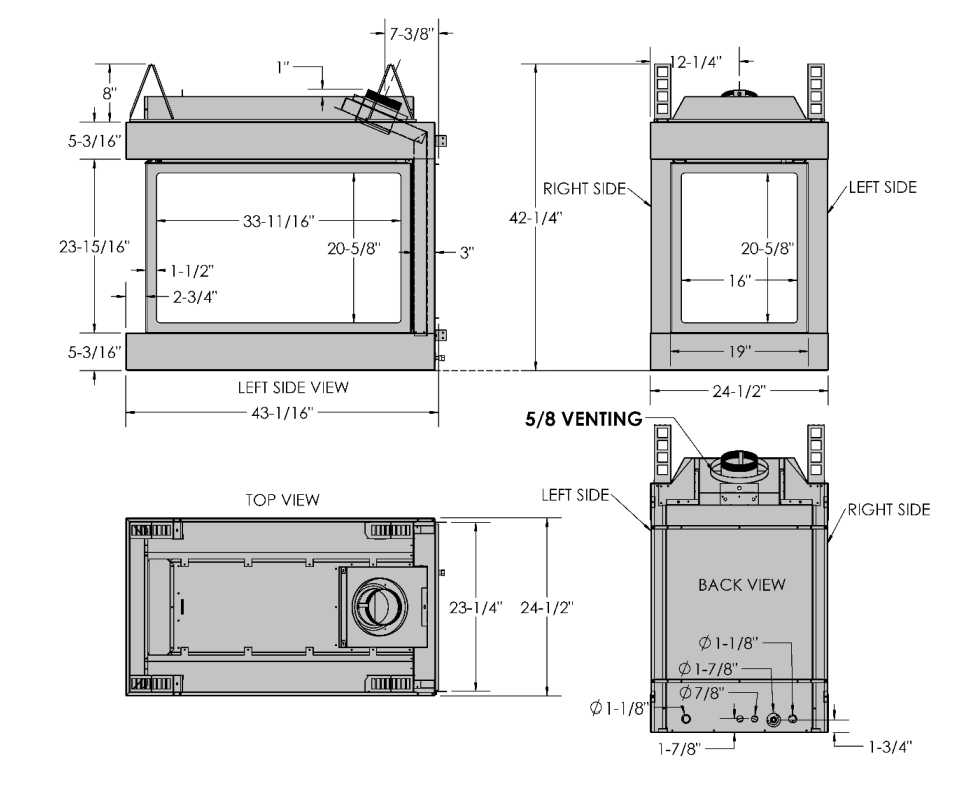

| Actual Width | 43 1/16" | 43 1/16" | 43 1/16" | 43 1/16" |
| Actual Height | 42 1/4" | 42 1/4" | 42 1/4" | 42 1/4" |
| Actual Depth | 24 1/2" | 24 1/2" | 24 1/2" | 24 1/2" |
| Glass Type | Tempered | Tempered | Ceramic | Ceramic |
