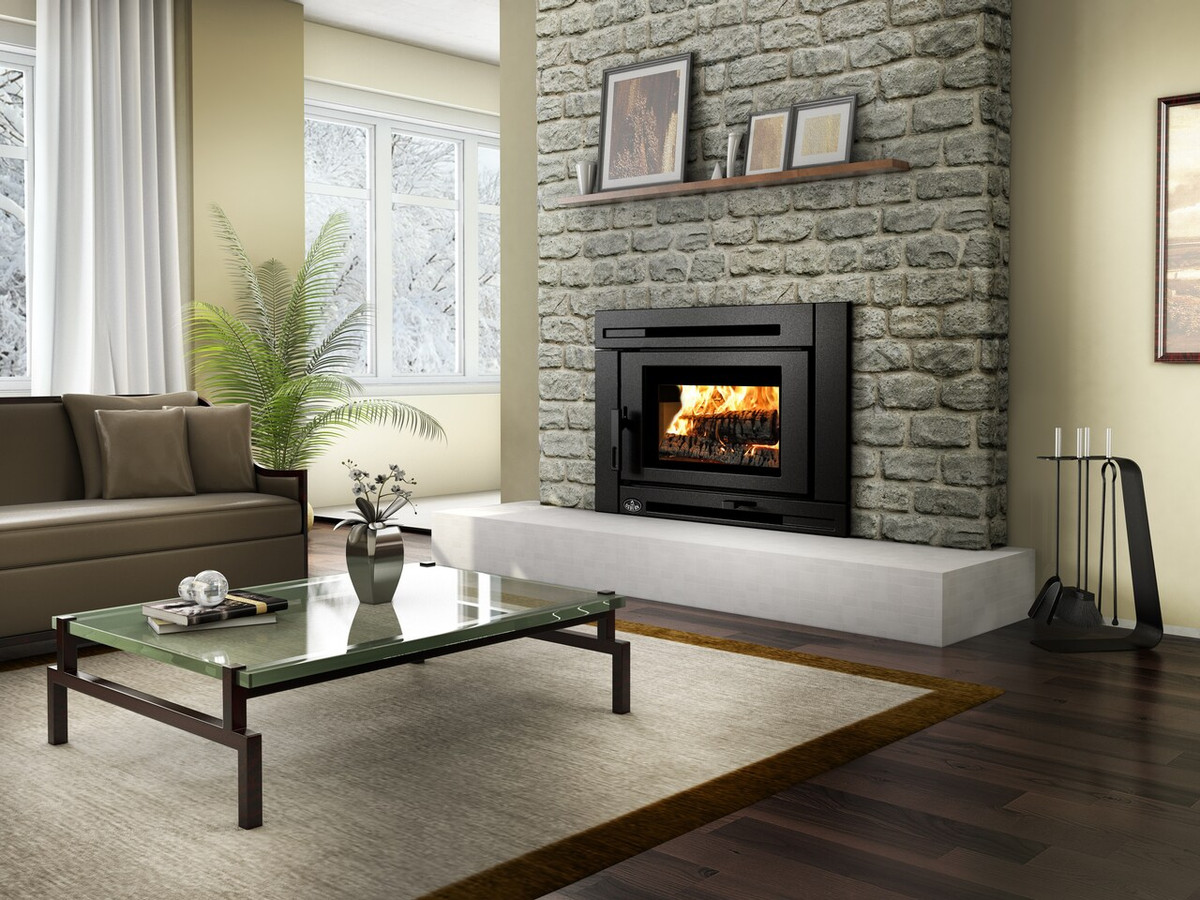

Osburn MATRIX-I Wood-Burning Insert - OB02028

Starting at: Subtotal: $3,949.00 $3,949.00
UPC:
773388164199
Osburn MATRIX-I Wood-Burning Insert - OB02028

In Stock

Osburn MATRIX-I Wood-Burning Insert - OB02028

Starting at: Subtotal: $3,949.00 $3,949.00
UPC:
773388164199

| Model #: OB02028

Clear All

  • BTU: 75,000

  • Viewing Width: 19 5/8"

  • Viewing Height: 11 7/8"

  • Unit Width: 36 1/8"

  • Unit Height: 25 1/8"

  • Unit Depth: 23 1/8"

  • Firebox Width: 21"

  • Firebox Height: 11 7/8"

  • Firebox Depth: 16 3/4"

Please select all the required options

Starting at: Subtotal: $3,949.00 $3,949.00
Osburn MATRIX-I Wood-Burning Insert - OB02028

In Stock

Osburn MATRIX-I Wood-Burning Insert - OB02028

Starting at: Subtotal: $3,949.00 $3,949.00

         Manual             Spec Sheet



The Osburn Matrix Wood Insert combines bold contemporary styling with dependable heating performance and the quality Osburn is known for. With an optimal efficiency of up to 79% and an average particulate emissions rate of just 2.3 g/h, the Matrix delivers efficient, cleaner-burning warmth while meeting modern emissions standards. Its substantial yet streamlined design creates a striking focal point in any masonry fireplace, while an improved door mechanism provides smoother, more convenient operation. For larger fireplace openings, optional intermediate trim panels can be added to create a clean, finished installation. Built for lasting performance and everyday comfort, the Matrix brings modern design and proven Osburn craftsmanship together in one powerful wood-burning insert.



Main Features:



  • Heats Up to 2,100 Sq. Ft. – Powerful heating performance for medium to large living spaces.
  • Up to 8-Hour Burn Time – Enjoy long-lasting warmth with fewer reloads.
  • Spacious 2.4 Cu. Ft. Firebox – Provides plenty of room for a substantial, steady-burning fire.
  • Fits Logs Up to 20" – Accommodates larger firewood for added convenience and longer burns.
  • Non-Catalytic Combustion – Delivers dependable performance with straightforward operation and maintenance.
  • Blower Included – Helps circulate warm air throughout the room for more even heating.
  • Low 2.3 g/h Emissions – Designed for cleaner, more efficient wood-burning performance.
  • Standard 6" Chimney Connection – Compatible with common wood-burning venting systems.
  • Fireplace opening - minimum (Height X Width X Depth) - 23 3/8" X 28 7/8" X 19 5/8"

Specifications:



  • Model: OB02028
  • Fuel Type: Wood Burning
  • Max Heat Output: Max Heat Output 75,000 BTU/hr
  • Viewing Area: 19 5/8" W X 11 7/8" H
  • Unit Dimensions: 36 1/8" W X 25 1/8" H X 23 1/8" D
  • Firebox Dimensions: 21" W × 11 7/8" H × 16 3/4" D
  • Door Opening Dimension: 17 1/2" W x 8 3/4" H
  • Door Type: Single, Glass with Cast Iron Frame
  • Glass Type: Ceramic Glass
  • Chimney Diameter: (6")
  • Maximum Log Length: 20"
  • Minimum Chimney Height (Feet): 12'
  • Weight: 491 lbs
  • Warranty: Limited lifetime



Accessories:

  • Faceplate Backing Plate - 29" X 44" Faceplate Backing Plate Kit, 29" X 50" Faceplate Backing Plate Kit
  • Bottom Faceplate Backing Plate - Bottom Faceplate Backing Plate 44" X 6", Bottom Faceplate Backing Plate 50" X 6"
  • Projection Kit (Requires Faceplate Backing Plate) - Projection Kit For Insert 2" Or 4"
  • Firescreen - Rigid Fire Screen
  • Liner Adapter - Offset Liner Adapter
  • Air Intake - 5" Fresh Air Intake Kit With 4' Of Insulated Flex Pipe, 5" Fresh Air Intake Kit With Register, Airtight Damper, & 10' Insulated Flex Pipe

Warranty



  • Lifetime Coverage – Combustion chamber welds and cast iron door frame. Labor covered for 5 years.
  • Lifetime Parts Coverage – Ceramic glass, qualifying plating manufacturing defects, and convector air-mate. No labor coverage.
  • 7-Year Parts Coverage – Surrounds, heat shields, ash drawer, steel legs, pedestal, aluminum trims, vermiculite, C-Cast or equivalent baffle, secondary air tubes, removable stainless steel combustion chamber, deflectors, and supports.
  • 5-Year Parts / 3-Year Labor – Handle assembly, glass retainers, and air control mechanism.
  • 5-Year Parts Coverage – Removable carbon steel combustion chamber components.
  • 2-Year Parts / 1-Year Labor – Standard and optional blowers, heat sensors, switches, rheostats, wiring, and electronics.
  • 1-Year Parts Coverage – Paint peeling, gaskets, insulation, ceramic fiber blankets, qualifying refractory bricks, and other options.
  • Replacement Parts – Parts replaced under warranty are covered for 90 days.
  • Lifetime Coverage Limit – Parts with lifetime coverage are limited to one replacement.
