Overview
Inspired by nature and designed for modern living, the Osburn Matrix 2700 Wood Insert blends timeless cast iron styling with advanced wood-burning performance. Its expansive viewing area puts the fire front and center, creating a warm, inviting focal point while delivering efficient, dependable heat throughout your living space. The Matrix 2700 comes standard with a cast iron faceplate and heat-activated blower for a refined, built-in appearance and improved heat circulation. Personalize the look with your choice of a black or brushed silver-plated door overlay, and add the optional fire screen for a more traditional open-fire experience.
Main Features:
- Powerful Heating Performance: Recommended for spaces from 750–2,200 sq. ft.
- Long, Comfortable Burns: Enjoy up to 8 hours of burn time between loads.
- Spacious 2.5 cu. ft. Firebox: Accommodates logs up to 20" long for fewer reloads.
- Clean-Burning Performance: Non-catalytic combustion produces just 1.2 g/h of particulate emissions.
- Heat-Activated Blower Included: Helps circulate warmth throughout your living space.
- Moulded Refractory Bricks: Enhance durability while helping maintain efficient combustion.
- Standard 6" Chimney Connection: Designed for compatibility with common wood-burning venting systems.
- Fireplace opening - minimum (Height X Width X Depth): 27 1/8" X 31 3/4" X 22 1/8"
Specifications:
- Model: OB02700
- Fuel Type: Wood Burning
- Max Heat Output: Max Heat Output 80,000 BTU/hr
- Viewing Area: 24 3/8" W X 12 5/8" H

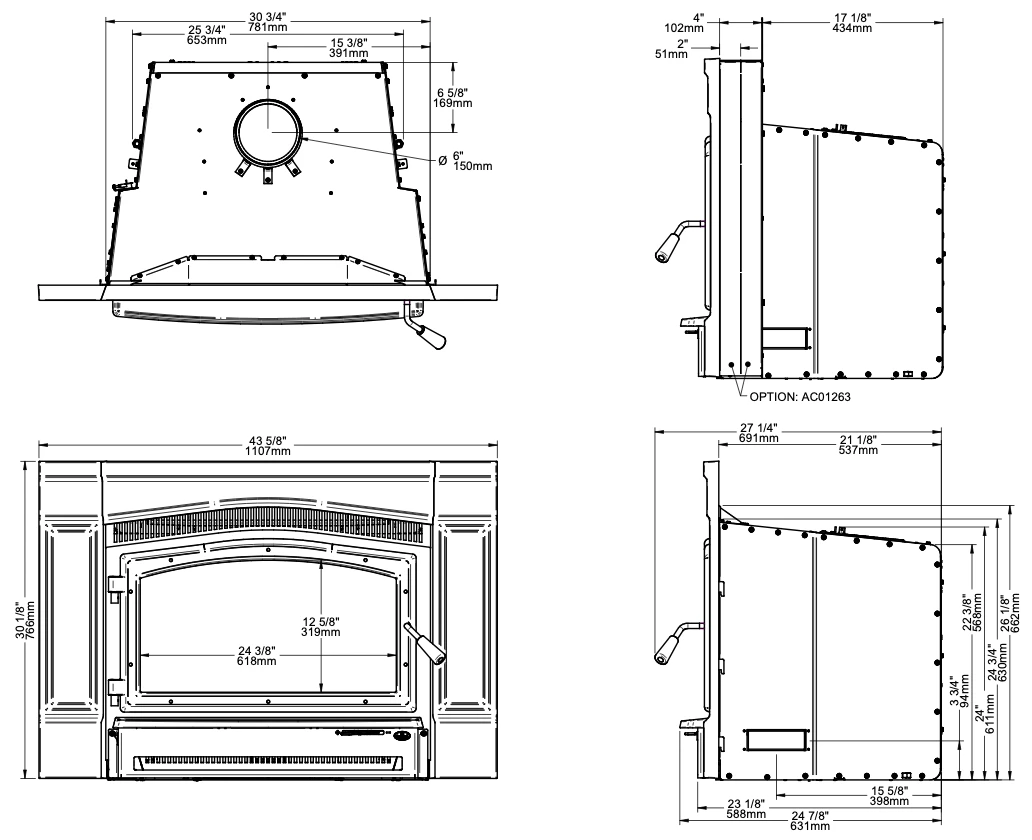

- Unit Dimensions: 43 5/8" W X 30 1/8" H X 27 1/4" D
- Firebox Dimensions: 22 5/8" W × 12 3/8" H × 12 7/8" D
- Door Opening Dimension: 25 3/8" W x 10 1/2" H
- Door Type: Single, Glass with Cast Iron Frame
- Glass Type: Ceramic Glass
- Chimney Diameter: (6")
- Maximum Log Length: 20"
- Minimum Chimney Height (Feet): 15'
- Weight: 535 lbs
- Warranty: Limited lifetime

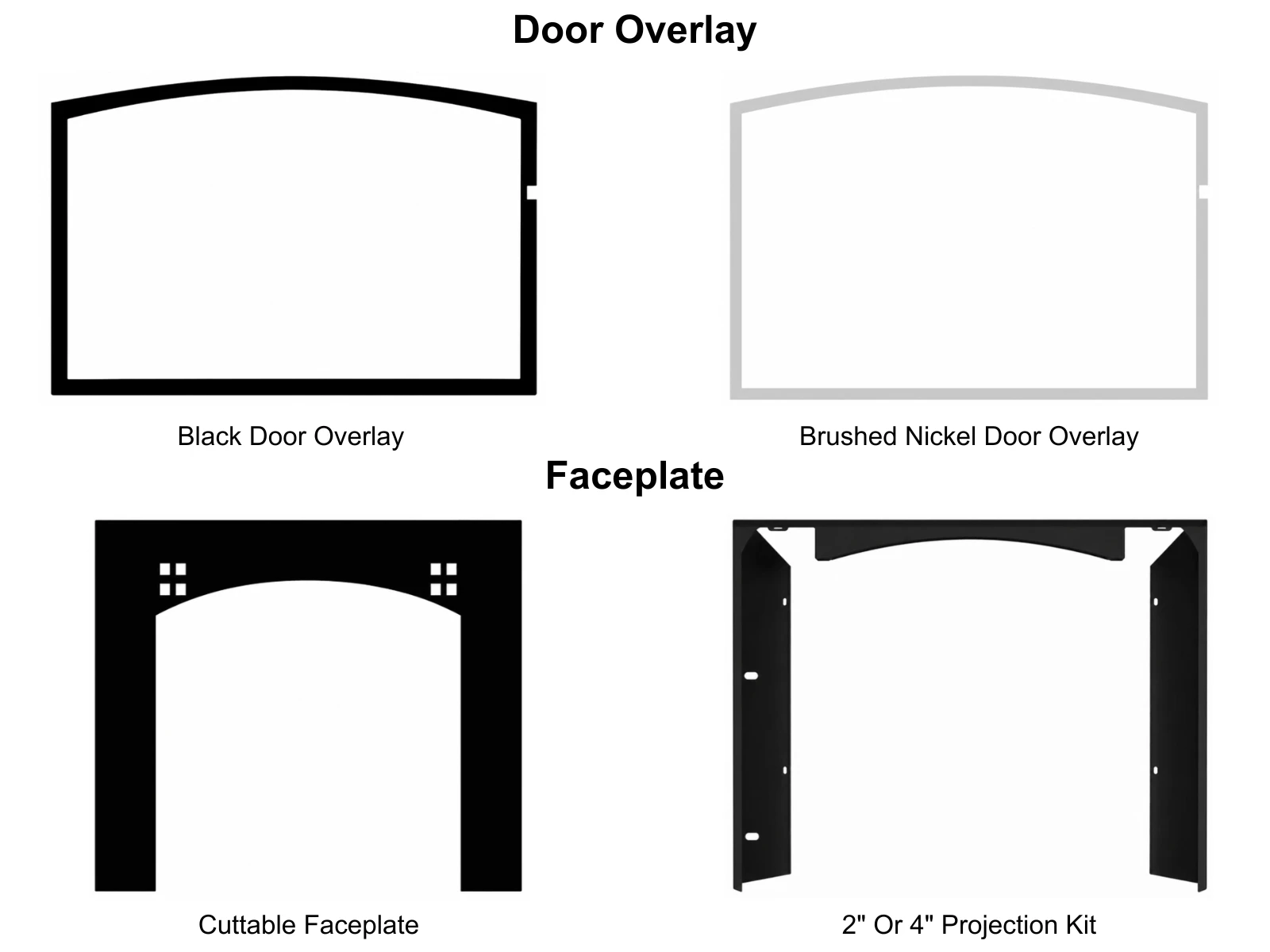

Accessories:
- Door Overlay - Black Door Overlay, Brushed Nickel Door Overlay
- Firescreen Door - Firescreen
- Faceplate - Cuttable Faceplate, 2" Or 4" Projection Kit
- Intake Kit - 5" Fresh Air Intake Kit With 4' Of Insulated Flex Pipe
Warranty
- Lifetime Coverage – Combustion chamber welds and cast iron door frame. Labor covered for 5 years.
- Lifetime Parts Coverage – Ceramic glass, qualifying plating manufacturing defects, and convector air-mate. No labor coverage.
- 7-Year Parts Coverage – Surrounds, heat shields, ash drawer, steel legs, pedestal, aluminum trims, vermiculite, C-Cast or equivalent baffle, secondary air tubes, removable stainless steel combustion chamber, deflectors, and supports.
- 5-Year Parts / 3-Year Labor – Handle assembly, glass retainers, and air control mechanism.
- 5-Year Parts Coverage – Removable carbon steel combustion chamber components.
- 2-Year Parts / 1-Year Labor – Standard and optional blowers, heat sensors, switches, rheostats, wiring, and electronics.
- 1-Year Parts Coverage – Paint peeling, gaskets, insulation, ceramic fiber blankets, qualifying refractory bricks, and other options.
- Replacement Parts – Parts replaced under warranty are covered for 90 days.
- Lifetime Coverage Limit – Parts with lifetime coverage are limited to one replacement.
