Overview
Main Features:
- IntelliFire® Ignition System - Enjoy reliable, worry-free operation with an advanced ignition system that continuously monitors the pilot flame, enhances safety, and helps reduce gas consumption when the fireplace is not in use.
- Direct Vent Technology - Experience clean, efficient warmth with a sealed direct vent system that safely vents combustion gases outdoors while preserving your home's indoor air quality.
- Realistic Split Log Set - Enjoy the timeless beauty of a traditional wood-burning fire with detailed split logs and natural-looking flames that create an inviting focal point.
- Convenient Gas Operation - Get instant warmth at the push of a button without chopping wood, starting fires, or cleaning up ash.
- Efficient Supplemental Heat - Add comfortable, consistent warmth to your favorite living spaces while using less energy than an open wood-burning fireplace.
Specifications:
- Fuel Type: Natural Gas or Propane
- Max Heat Output: Max Heat Output 30,000 BTU/hr
- Viewing Area: 27 1/2" W x 15 15/16" H

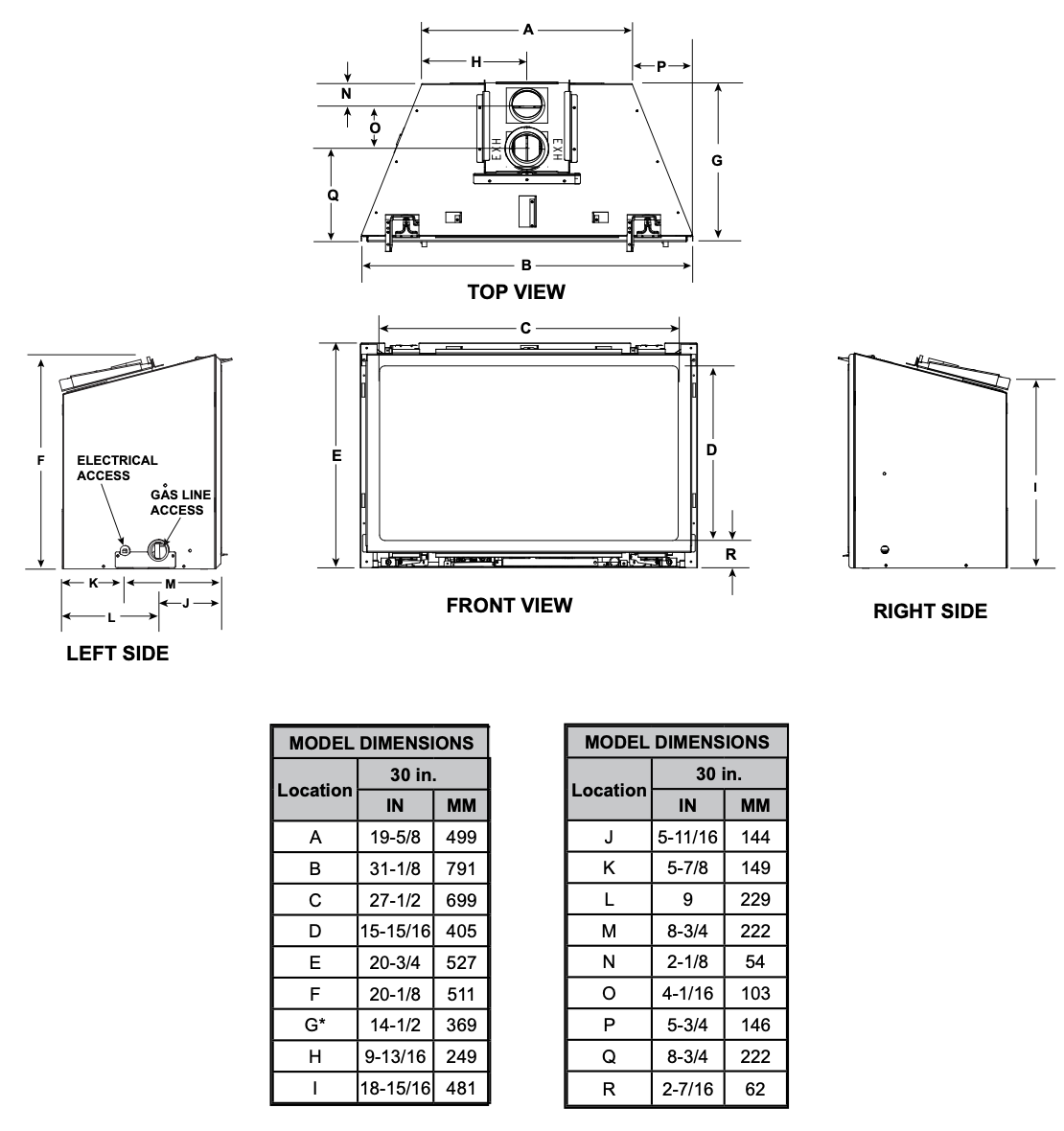

- Unit Dimensions: 31 1/8" W x 20 3/4" H x 14 1/2" D
- Minimum Fireplace Opening: 31 5/8" W x 21" H x 15" D
- Venting: 3" Co-Linear Direct Vent Flex Liner (Top Vent Only)
- Ignition: IntelliFire Ignition System

Accessories:

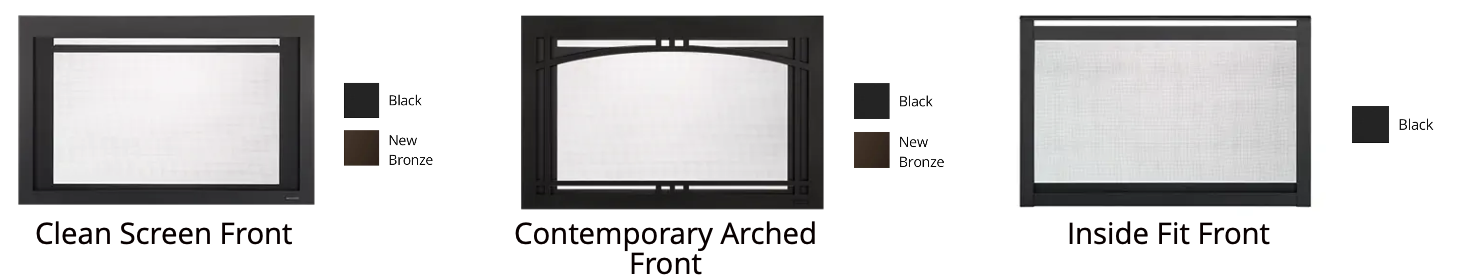

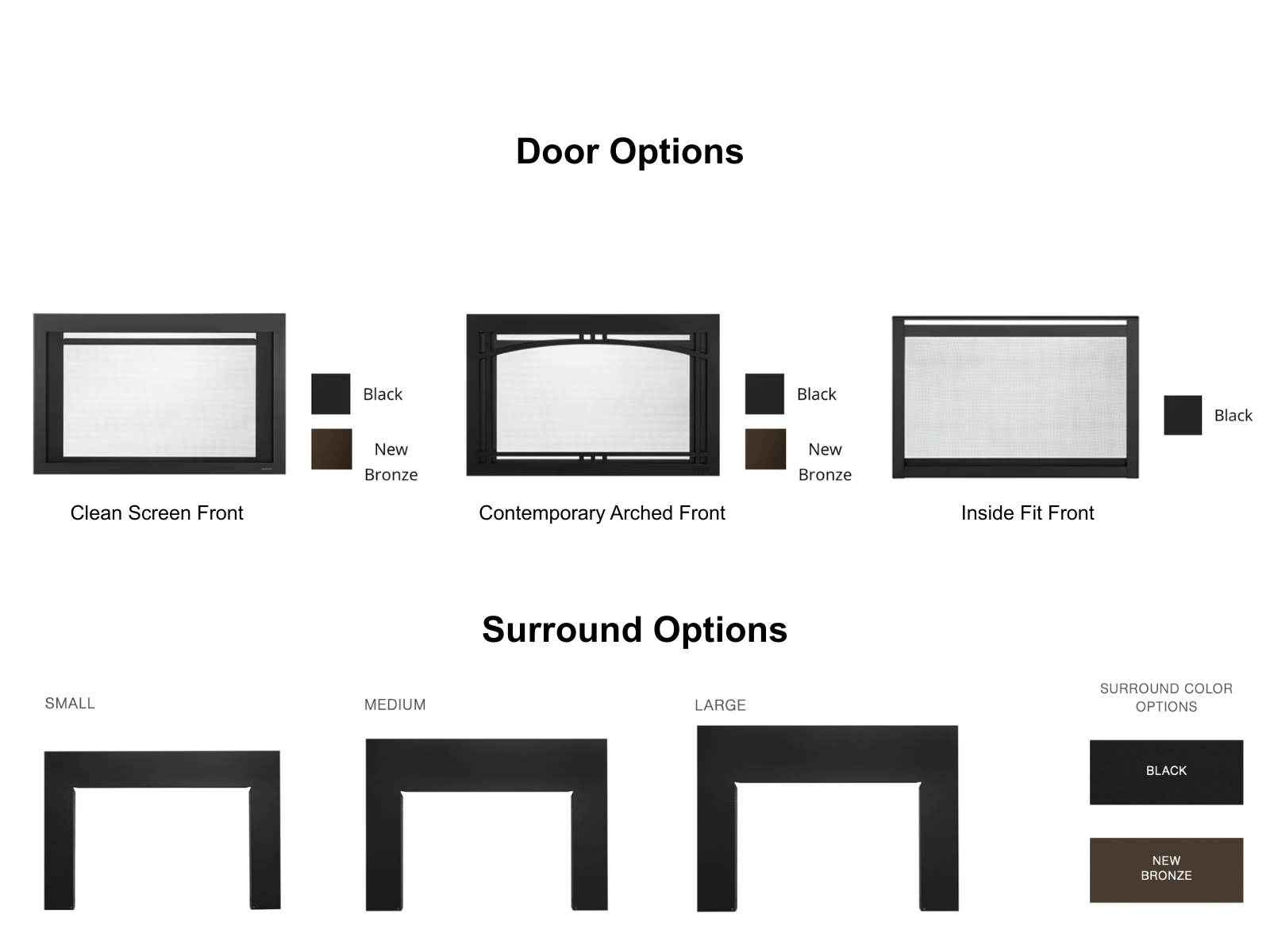

- Fronts - Black Clean Screen Front, New Bronze Clean Screen Front, Black Contemporary Arch Screen Front, New Bronze Contemporary Arch Screen Front, Black Inside Fit Screen Front

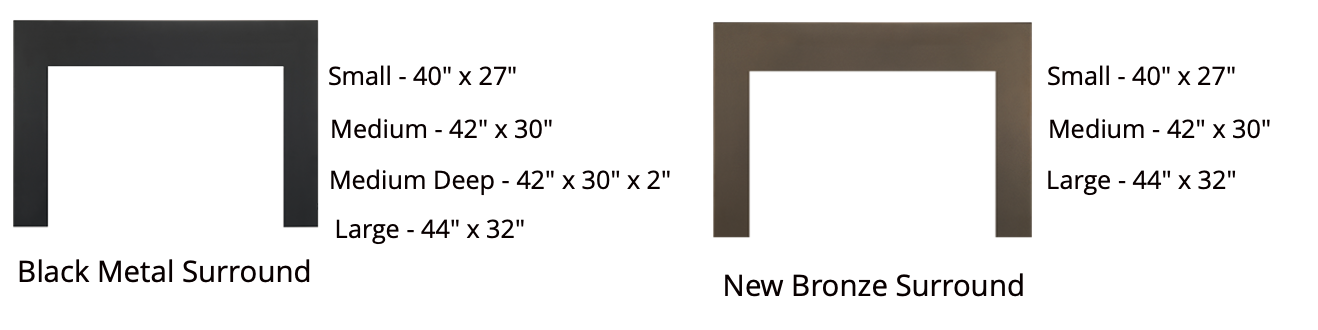

- Surrounds - Black Small Surround, New Bronze Small Surround, Black Medium Surround, Black Medium Deep Surround, New Bronze Medium Surround, Black Large Surround, New Bronze Large Surround
- Control Options - IPI Or SP Remote Control (On/Off,

Warranty
20-Year Coverage
- Firebox and heat exchanger
10-Year Coverage
- Burners
- Logs and refractory components (coverage varies by component)
5-Year Coverage
- Ignition system components
- Electrical and control components
- Blowers and fans
- Gas valves and pilot assemblies
1-Year Coverage
- Labor allowance for warrantable repairs
- Accessories and decorative components
Important Warranty Notes
- Warranty applies only to the original purchaser and original installation location.
- Product must be installed and operated according to manufacturer instructions.
- Damage caused by improper installation, misuse, abuse, lack of maintenance, or unauthorized modifications is not covered.
- Normal wear items, surface finishes, and discoloration from heat are generally excluded.
Please see owners manual for full warranty breakdown
