Overview

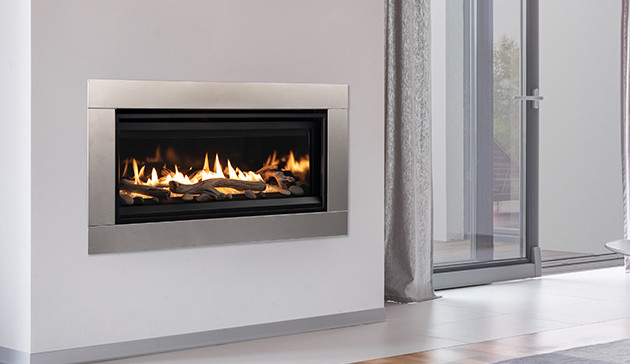

The DRL3500 Series Linear Direct Vent Gas Fireplace delivers a modern, low-profile design that fits beautifully in both contemporary and transitional spaces. Its sleek linear opening showcases an exceptional view of gently dancing flames, while integrated floor lighting enhances the presentation and lets you customize the mood to match your space.
Main Features:
- Available in 35”, 45”, and 55” linear sizes to accommodate a wide range of wall layouts and room designs
- Optional HeatFlo™ heat management kit redirects heat above TVs or heat-sensitive décor (45” & 55” models only)
- Electronic ignition with battery backup ensures reliable operation during power outages
- Clean-face design with integrated tile stops allows for seamless finishing with stone, tile, or other materials
- High heating efficiency delivers consistent warmth while helping reduce energy costs
- Tempered glass with protective safety screen enhances durability and peace of mind

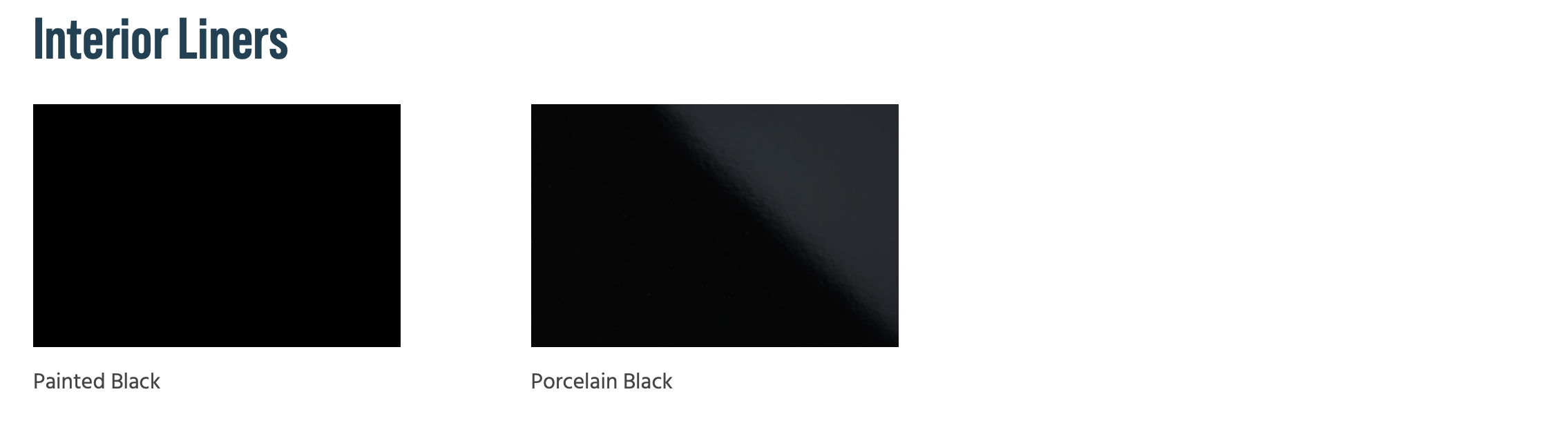

- Black painted interior standard with an optional reflective porcelain liner for added flame depth
- Platinum crushed glass media included with additional color media options available
- Integrated floor lighting with six mood-enhancing color settings
- Factory-installed heat-circulating blower with six adjustable speed levels

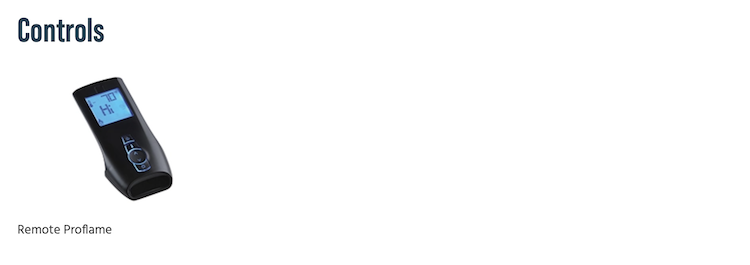

- Multi-function remote control included to manage flame height, thermostat, blower, lighting, and IPI/CPI modes
- 20-year limited warranty for long-term reliability and confidence

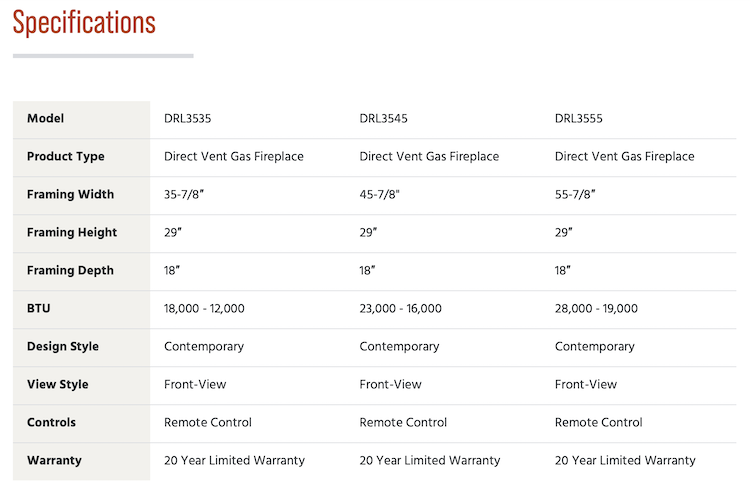

Specifications:
- Model: DRL3535
- Fuel Type: Natural Gas or Propane
- Max Heat Output: Max Heat Output 18,000 BTU/hr
- Viewing Area (W × H): 30" W x 16 3/4" H

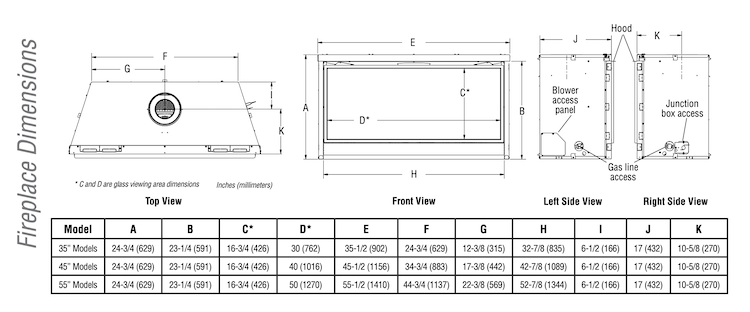

- Unit Dimensions: 35 1/2" W x 24 3/4" H x 17" D
- Framing Dimensions: 35 7/8" W x 29" H x 18" D
- Venting: Top Vent
- Ignition & Controls: Electronic Ignition
- Warranty: 20-year Limited Warranty
- Manufactured In: Russelville, Alabama USA

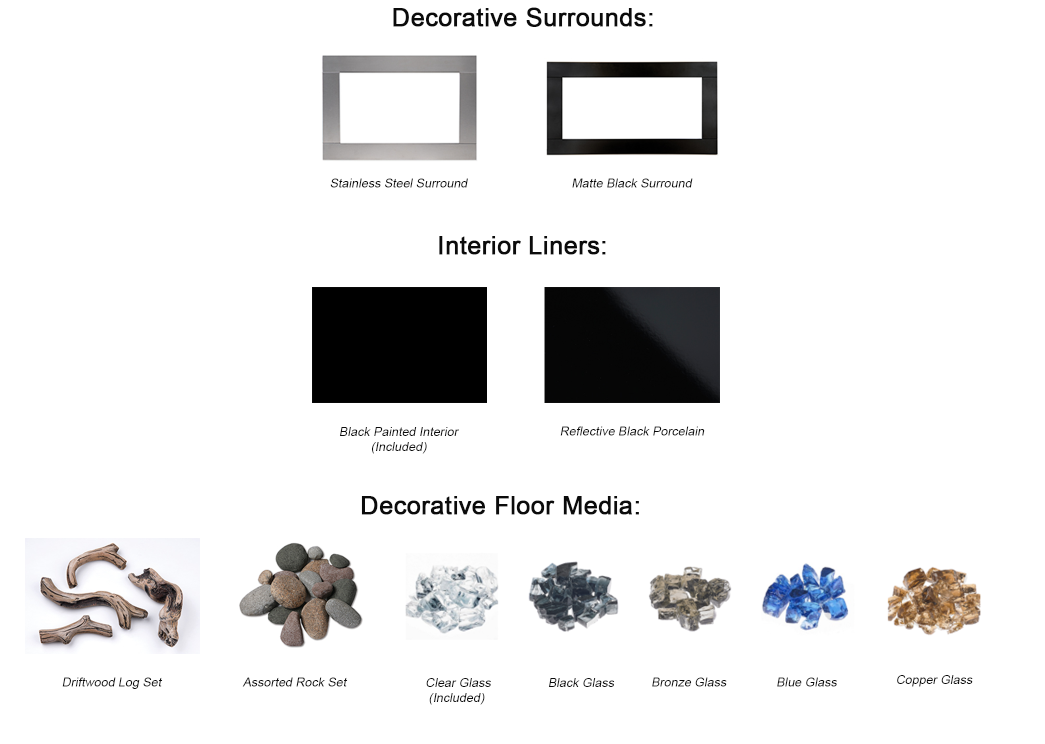

Accessories:

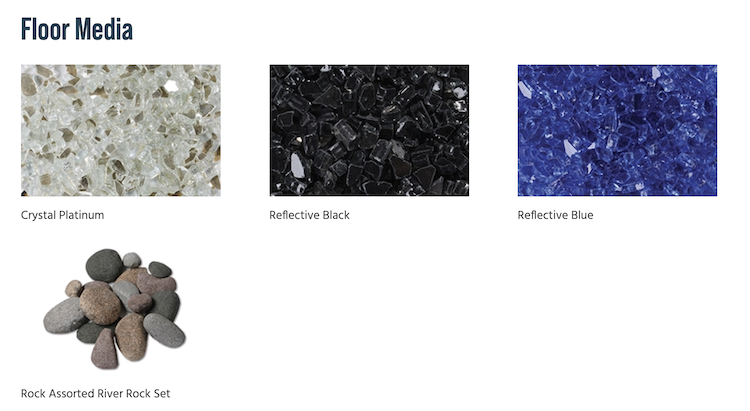

- Glass Media Kits: Black Glass, Clear Glass, Bronze Glass, Blue Glass, Copper Glass (Optional)

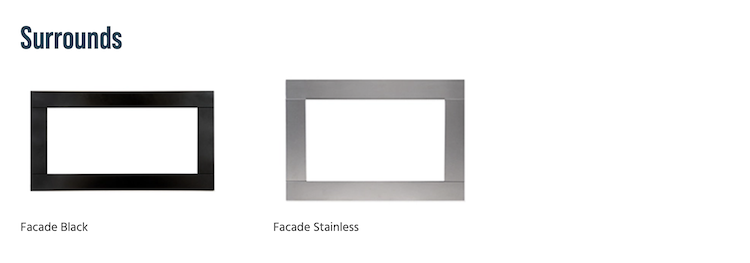

- Surrounds: Black Matte, Stainless (Optional)
- Liner Kits: Black Porcelain (Optional)
FAQs:
Q: What is included with the fireplace?
A: IPI/CPI Ignition with battery backup, platinum crushed glass media, tempered glass, black painted interior, multi function remote and standard protective screen barrier
Q: Is the venting included with the fireplace?
A: The venting is not included because each vent run has different needs. Please give us a call or text and we would be happy to create a venting package that is perfect for you needs!
Q: What does top vent mean?
A: This means that the fireplace can be vented out the top of the unit or straight out the back of the unit. There are venting ports on both the top and rear of the unit.
