Overview
Main Features:
- Available in 48″, 60”, 72″ and 84″ linear configured models
- Indoor see-through conversion kit available to allow viewing from two living spaces
- Indoor/Outdoor see-through conversion kit available to enjoy the fire both inside and out (48” model only)
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Six flame settings with up to a 30% turn down for precise heat control
- Outstanding heating efficiency for increased comfort and lower operating costs
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Factory installed blower with six speed settings to fine tune your heating needs**
- Black porcelain liner interior for a reflective view of the fire
- Platinum crushed glass media included with several optional colors available to customize the look
- Mood enhancing floor lighting enhances the fireplace interior with or without a fire
- Multi-function remote included (IPI/CPI, thermostat, flame height, blower, lighting)
- Optional Power-Vent system available for down-and-out installations
- 20-year limited warranty
Specifications:
- Model: DRL6048
- Fuel Type: Natural Gas or Propane
- Max Heat Output: Max Heat Output 35,000 BTU/hr
- Viewing Area (W × H): 46" W x 14 1/2" H
- Unit Dimensions: 54 1/4" W x 32 7/8" H x 20" D
- Framing Dimensions: 55 5/8" W x 39 1/8" H x 19 1/2" D, (18 1/2" D, See Through Option)
- Venting: Top Vent
- Ignition & Controls: Electronic Ignition
- Warranty: 20-year Limited Warranty
- Manufactured In: Russelville, Alabama USA

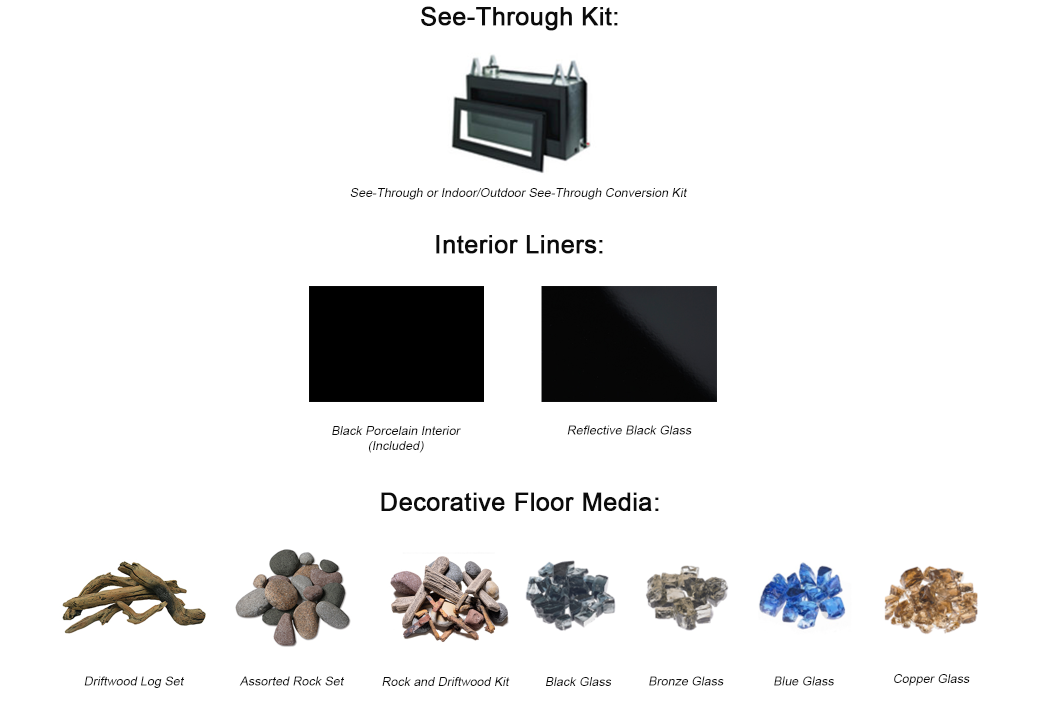

Accessories:
- Glass Media Kits: Black Glass, Clear Glass, Bronze Glass, Blue Glass, Copper Glass (Optional)
- Floor Media Kits: River Rock, Driftwood Pieces and Rock Media Kit, Driftwood Log Set (Optional)
- Surrounds: Black Linear (Optional)
- Liner Kits: Black Reflective Glass (Optional)
- Configuration Kit: Linear Direct Vent See-Through Conversion Kit, Linear Indoor/Outdoor See-Through Conversion Kit, HeatFlo Convection Air Circulation Kit (Optional)
- Control Options: On/Off, T-Stat Remote (Optional)
FAQs:
Q: What is included with the fireplace?
A: IPI/CPI Ignition with battery backup, platinum crushed glass media, floor lighting, ceramic glass, variable speed blower, full-function hand held remote, black porcelain interior, and standard protective screen barrier
Q: Is the venting included with the fireplace?
A: The venting is not included because each vent run has different needs. Please give us a call or text and we would be happy to create a venting package that is perfect for you needs!
Q: What does top vent mean?
A: This means that the fireplace can be vented out the top of the unit or straight out the back of the unit. There are venting ports on both the top and rear of the unit.
