Overview
The new Glass Marine Grade radiant patio heater is SunStar’s newest line of heaters designed for restaurants and other hospitality service industries. Radiant infrared heating is easy to install and energy efficient. The SunStar Glass Marine Grade radiant patio heater is ideal for outdoor or partially covered dining areas, bars, patios, verandas, smoking areas, vestibules and other outdoor covered areas.
Like the radiant warmth from the sun, radiant heat warms people and objects directly at floor level without first heating the surrounding air. Customers can dine and relax under the radiant warmth of the (Glass Marine Grade), and help you to maximize the use of your seating areas during those colder winter months. Ask your SunStar distributor about all the great features and benefits of SunStar’s new Glass Marine Grade radiant patio heater and how it can help to maximize your profits.
**For 15° - 60° angled mounting installations**

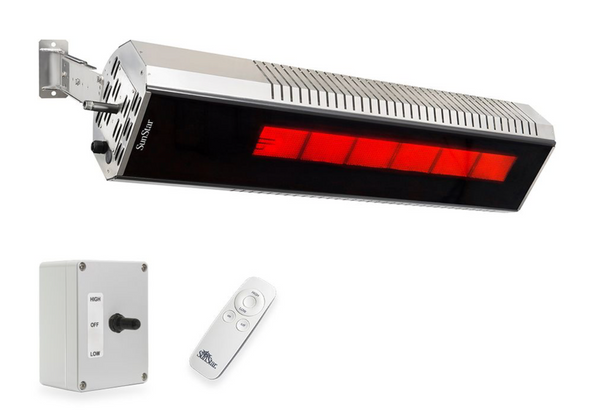

Package Includes:
- Two Stage Marine Grade 35,000 to 24,000 BTU Infrared Heater
- Adjustable 15° - 60° Wall/Ceiling Mounting Kit
- 3 Position Switch Kit (high/low/off?
- Wireless Remote Control
Features:
- Designed for restaurants, residential patios and other hospitality service industries, SunStar Glass MG is wind resistant up to 40MPH
- High temperature tinted glass provides additional protection on windy days and enhances heater’s aesthetic appeal
- The SunStar Glass radiant patio heater is ideal for out door or partially covered dining areas, bars, patios, verandas, smoking areas, vestibules and other outdoor areas
- Clearances above can be as low as 10” with optional heat shield
- Covers 12’ by 12’ area with minimal wind conditions
- Designed for harsh environments
- 316 Stainless Steel
- Outdoor rated
- Can be mounted from 15° to 60°
- Available for natural gas and LPG
- Chain suspension or wall mounted
- Aesthetically designed with glass front to blend with nearly any décor
- 3 year limited warranty on burner assembly
- 1 year limited warranty on controls
Clearance to Combustibles:
| Mounting Angle |
Ceiling | Ceiling* w/Shield |
Back | Back* w/Shield |
Side | End | Below | Front |
|---|---|---|---|---|---|---|---|---|
| 0º | 20" | 10" | N/A | N/A | 24" | 12" | 40" | 48" |
| 30º | 23" | 14" | 8" | 8" | 24" | 12" | 40" | 48" |
| 60º | 24" | 17" | 12" | 12" | 24" | 12" | 40" | 48" |
Specifications & Dimensions:
| Model | Gas Type | Input BTU/HR | Mounting Height Horiz/Angle |
Space Between Horiz/Angle |
Burner Pressure |
|---|---|---|---|---|---|
| SGL35-N10-MG | Natural | 35,000 - 24,000 | 8 - 11 ft | 8 - 16 ft / 6 - 14 ft | 6.0" W.C. |
| SGL35-L10-MG | Propane | 35,000 - 24,000 | 8 - 11 ft | 8 - 16 ft / 6 - 14 ft | 11.0" W.C. |
| Height | Width | Length |
|---|---|---|
| 9 1/2" | 11 1/2" | N/A |
