Overview
Like the radiant warmth from the sun, radiant heat warms people and objects directly at floor level without first heating the surrounding air. Customers can dine and relax under the radiant warmth of the Glass, and help you to maximize the use of your seating areas during those colder winter months. Designed with high temperature tinted glass, SunStar Glass is wind resistant up to 40MPH.
**For 0° horizontal mounting installations**

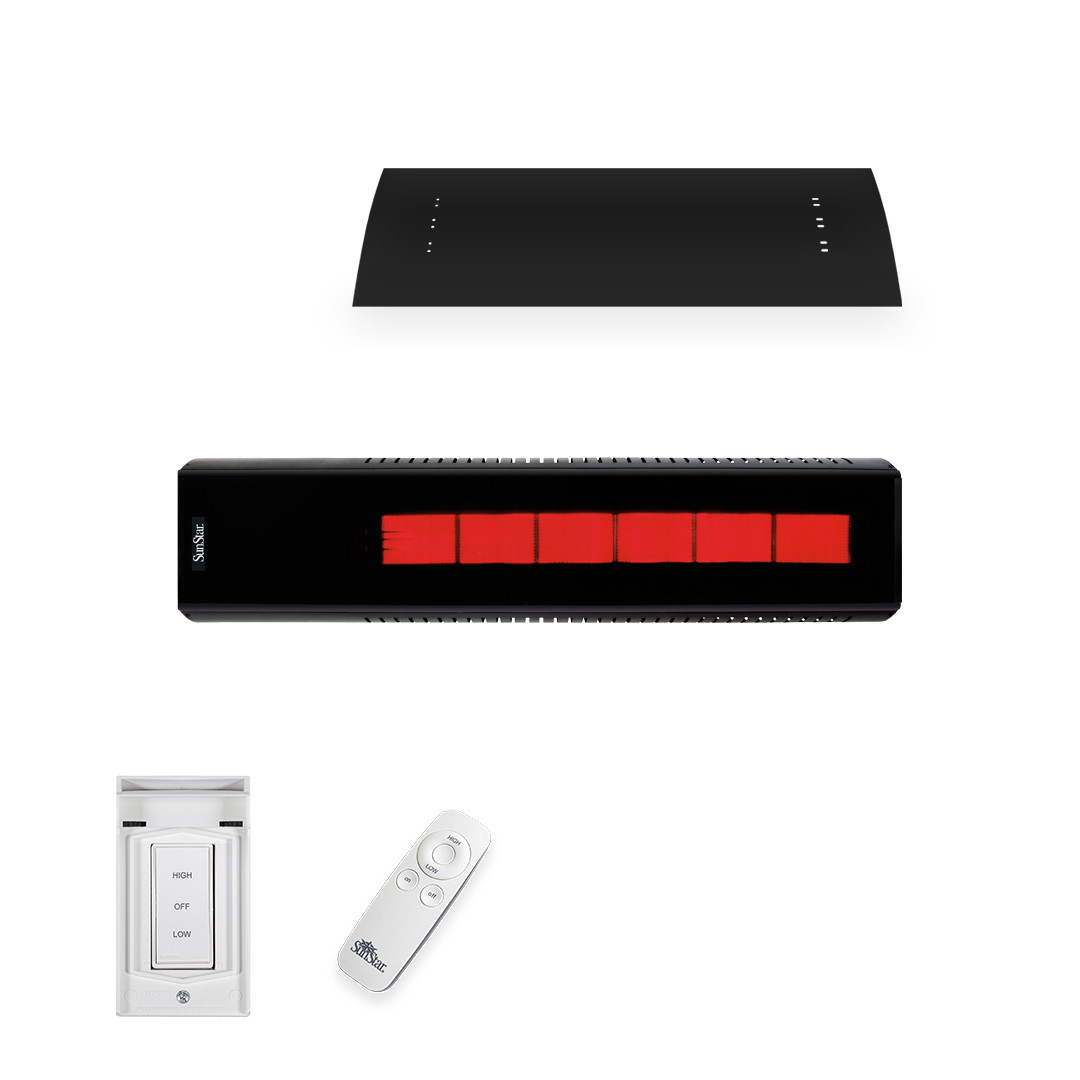

Package Includes:
- Two Stage 35,000 or 50,000 BTU Infrared Patio Heater
- Black 10" Fixed Ceiling Mount Kit
- 3 Postition Switch Kit (high/low/off)
- Wireless Remote Control
- Black Heat Shield Kit
Features:
- Designed for restaurants, residential patios and other hospitality service industries, SunStar GLASS is wind resistant up to 40MPH
- High temperature tinted glass provides additional protection on windy days and enhances heater’s aesthetic appeal
- The SunStar GLASS radiant patio heater is ideal for out door or partially covered dining areas, bars, patios, verandas, smoking areas, vestibules and other outdoor areas
- Clearances above can be as low as 10” with optional heat shield
- Covers 12’ by 12’ area with minimal wind conditions
- Outdoor rated
- Two-stage (high / low) models.
- Available for natural gas and liquid propane
- Chain suspension or wall mounted.
- Aesthetically designed with glass front to blend with nearly any decor
- CSA Design Certified -Z83.19 & Z83.26
- 3 year limited warranty on burner assembly.
- 1 year limited warranty on controls.

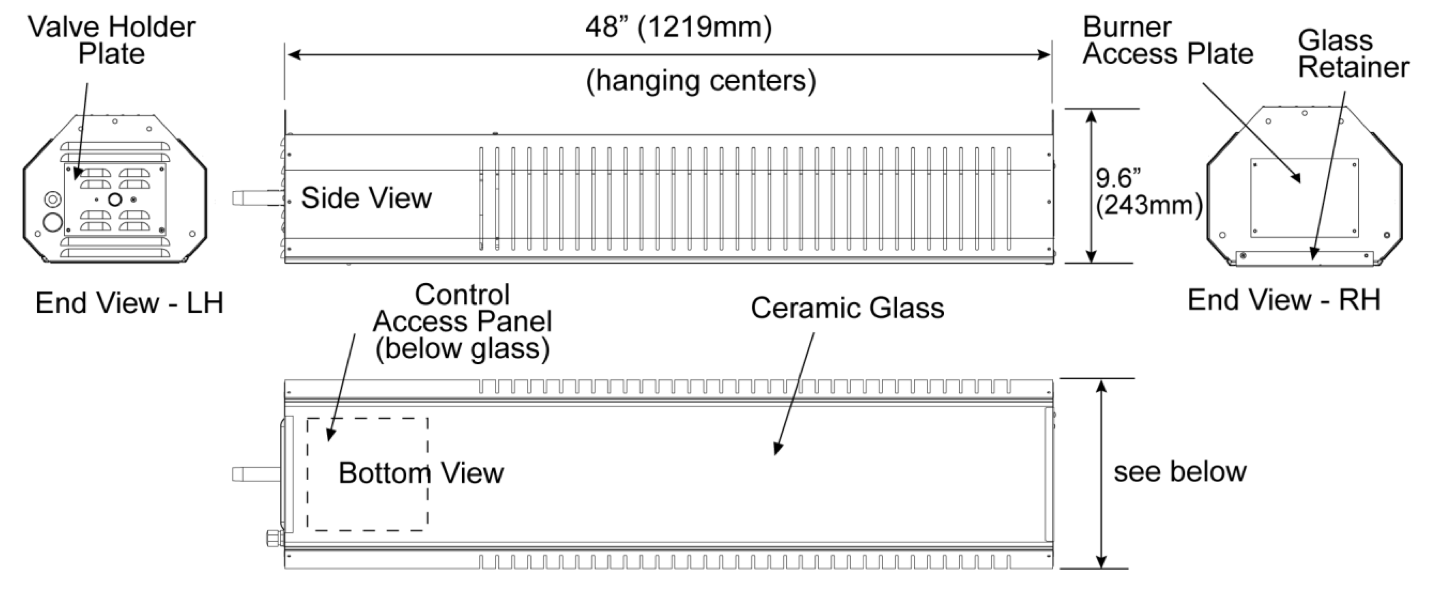

Specifications & Dimensions:
| Model | Gas Type | Input BTU/HR | Mounting Height Horiz/Angle |
Space Between Horiz/Angle |
Burner Pressure |
|---|---|---|---|---|---|
| SGL35-N10 | Natural | 35,000 - 24,000 | 8 - 1 ft / 8 - 11 ft | 8 - 16 ft / 6 - 14 ft | 6.0" W.C. |
| SGL35-L10 | Propane | 35,000 - 24,000 | 8 - 1 ft / 8 - 11 ft | 8 - 16 ft / 6 - 14 ft | 11.0" W.C. |
| SGL50-N10 | Natural | 50,000 - 34,000 | 9 - 12 ft / 8 - 11 ft | 8 - 16 ft / 10 - 20 ft | 7.0" W.C. |
| SGL50-L10 | Propane | 50,000 - 34,000 | 9 - 12 ft / 8 - 11 ft | 8 - 16 ft / 10 - 20 ft | 7.0" W.C. |
| Height | Width | Length |
|---|---|---|
| 9 1/2" | 11 1/2" | N/A |
Clearance to Combustibles:
| Mounting Angle |
Ceiling | Ceiling* w/Shield |
Back | Back* w/Shield |
Side | End | Below | Front |
|---|---|---|---|---|---|---|---|---|
| SGL35 - 0º | 20" | 10" | N/A | N/A | 24" | 12" | 40" | 48" |
| SGL35 - 30º | 23" | 14" | 8" | 8" | 24" | 12" | 40" | 48" |
| SGL35 - 60º | 24" | 17" | 12" | 12" | 24" | 12" | 40" | 48" |
| SGL50 - 0º | 22" | 10" | 12" | 12" | 28" | 16" | 60" | 50" |
| SGL50 - 30º | 22" | 14" | 12" | 12" | 50" | 16" | 60" | 50" |
| SGL50 - 60º | 27" | 17" | 12" | 12" | 50" | 16" | 48" | 50" |
