Overview
Main Features:
-
Available in 35", 40", and 45" models
-
17" mid-depth design saves valuable floor space
-
Top/rear flue combination for flexible installation
-
Choose Millivolt or Electronic Ignition
-
Electronic ignition includes battery backup for operation during power outages (IPI/CPI switch)
-
High heating efficiency for improved comfort and reduced operating costs
-
Tempered glass with included protective screen
-
Detailed ceramic fiber log set for a realistic flame appearance
-
Black painted interior with optional decorative liners
- Face options include the Vista inside-fit façade or multiple Designer overlap-fit facades (required)
-
Optional blower, touch remote, or handheld remote for all models
-
Durable textured powder-coat exterior finish
Specifications:
- Model: DRT3040
- Fuel Type: Natural Gas or Propane (NG to LP Conversion Available)
- Max Heat Output: Max Heat Output 24,000 BTU/hr
- Viewing Area (W × H): 34 1/4" W x 24 1/2 " H
- Unit Dimensions: 40 1/4" W x 37 1/8" H x 17" D
- Framing Dimensions: 40 7/8" W x 41 1/4" H x 18 1/2" D
- Venting: Top Vent, Rear Vent
- Ignition & Controls: Electric or Millivolt & Optional Blower and Remote Available
- Warranty: 20-year Limited Warranty
- Manufactured In: Russelville, Alabama USA
Accessories:

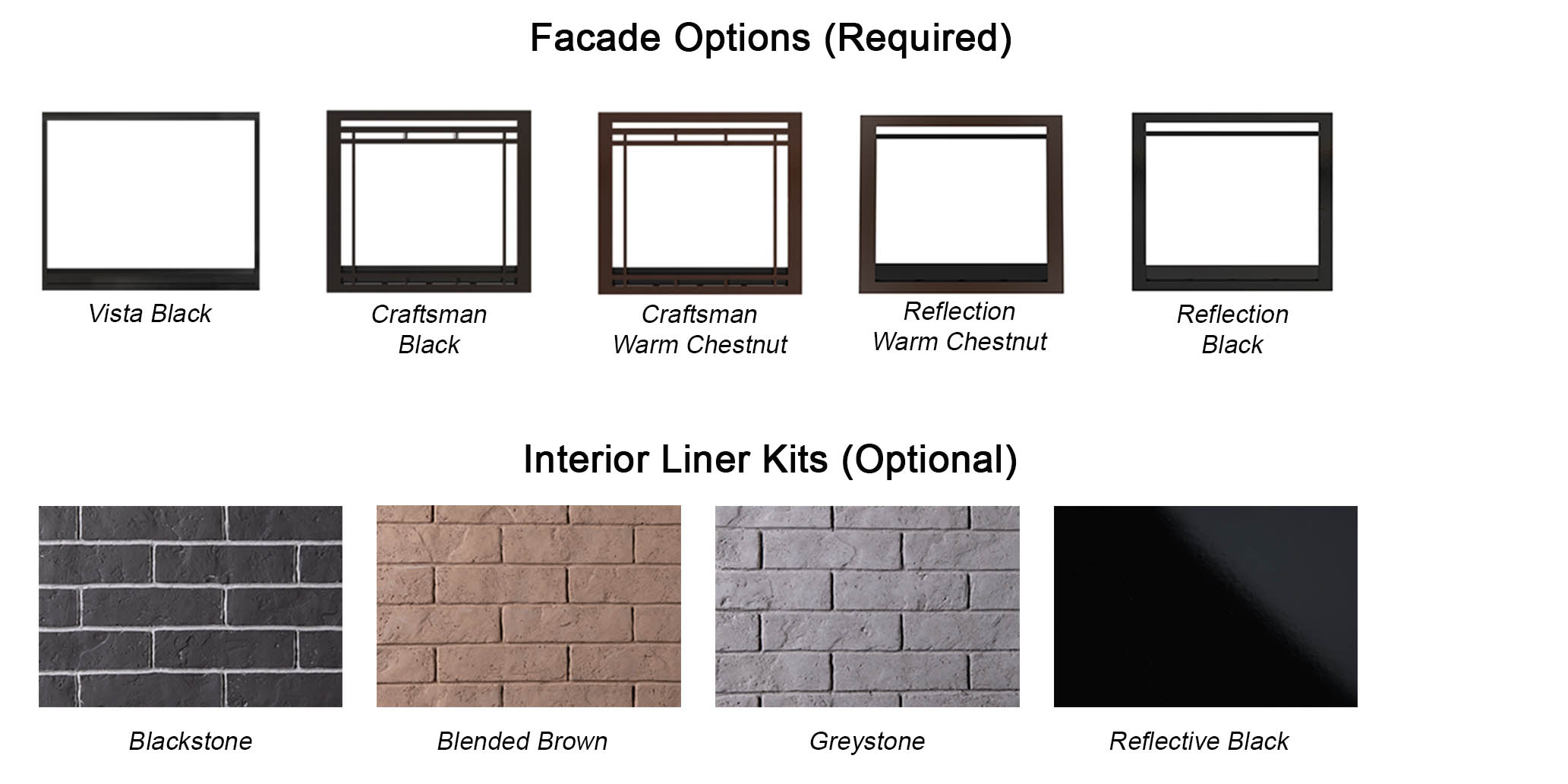

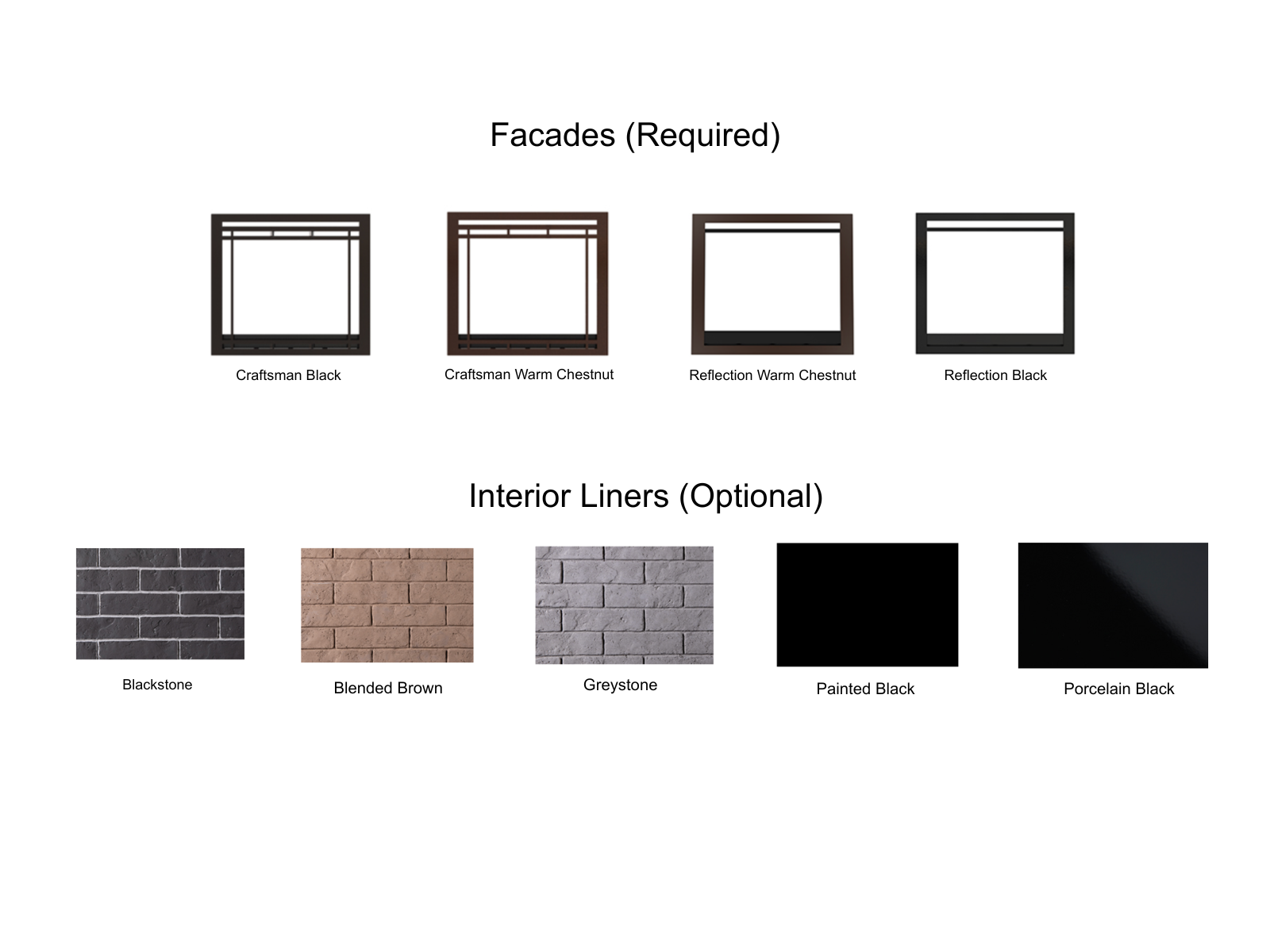

- Facades: Black Vista Frame, Black Reflection, Warm Chestnut Reflection, Black Craftsman, Warm Chestnut Craftsman (Required)
- Blower Kits: Standard, Variable Speed with Wall Switch, Variable Speed with Thermo Snap Switch (Optional)
- Liner Kits: Blackstone Stacked Ceramic, Greystone Stack Ceramic, Blended Brown Stacked Ceramic, Black Reflective Porcelain (Optional)
- Decorative Face Surrounds: 4 Sided Stainless, 3 Sided Stainless
- Control Options: Two Button Timer Remote with On/Off, Touch Screen On/Off Remote, Wall Mounted LCD Manual Control with Thermostat Modes, On/Off Remote and Receiver with White Wall Plate (Optional)
- Ember Media Kits: Glowing Embers (Optional)
FAQs:
Q: What items are included with the fireplace?
A: Battery backup, detailed ceramic fiber logs, black painted interior, tempered front glass, vista inside fit facade with protective screen barrier.
Q: Is the venting included with the fireplace?
A: The venting is not included because each vent run has different needs. Please give us a call or text and we would be happy to create a venting package that is perfect for you needs!
Q: What does top/rear vent mean?
A: This means that the fireplace can be vented from the top of the unit or straight out the back. Both options take the same type of venting - 4.5/7.5" Secure Vent
