Overview
Main Features:
- Efficient Supplemental Heat - Delivers up to 16,500 BTUs of heat on either natural gas or propane, providing comfortable supplemental warmth for your living space.
- Direct Vent Technology - The 4" x 6⅝" direct vent system safely removes combustion gases while drawing fresh air from outside, improving efficiency and maintaining excellent indoor air quality.
- IntelliFire® Ignition System - Advanced electronic ignition lights the fireplace only when needed, increasing energy efficiency while providing dependable, hassle-free operation.
- Battery Backup - Enjoy the warmth and ambiance of your fireplace even during power outages with the integrated battery backup system.
- Contemporary Onyx Media - Included Onyx glass media creates a sleek, modern appearance that beautifully reflects the flames for a striking focal point.
- Clear View Tempered Glass - Tempered glass provides a wide, unobstructed view of the fire while delivering long-lasting durability.
- Black Firescreen - A standard black firescreen offers an added layer of safety while maintaining a clean, contemporary look.
- Installation-Ready Design - Comes with a gas flex connector and junction box to simplify installation and make setup more convenient for your installer.
Specifications:
- Model: DVLINEAR36
- Fuel Type: Natural Gas or Propane (NG to LP Conversion Available)
- Max Heat Output: Max Heat Output 16,500 BTU/hr
- Viewing Area: 32 1/4" W x 15 1/4" H

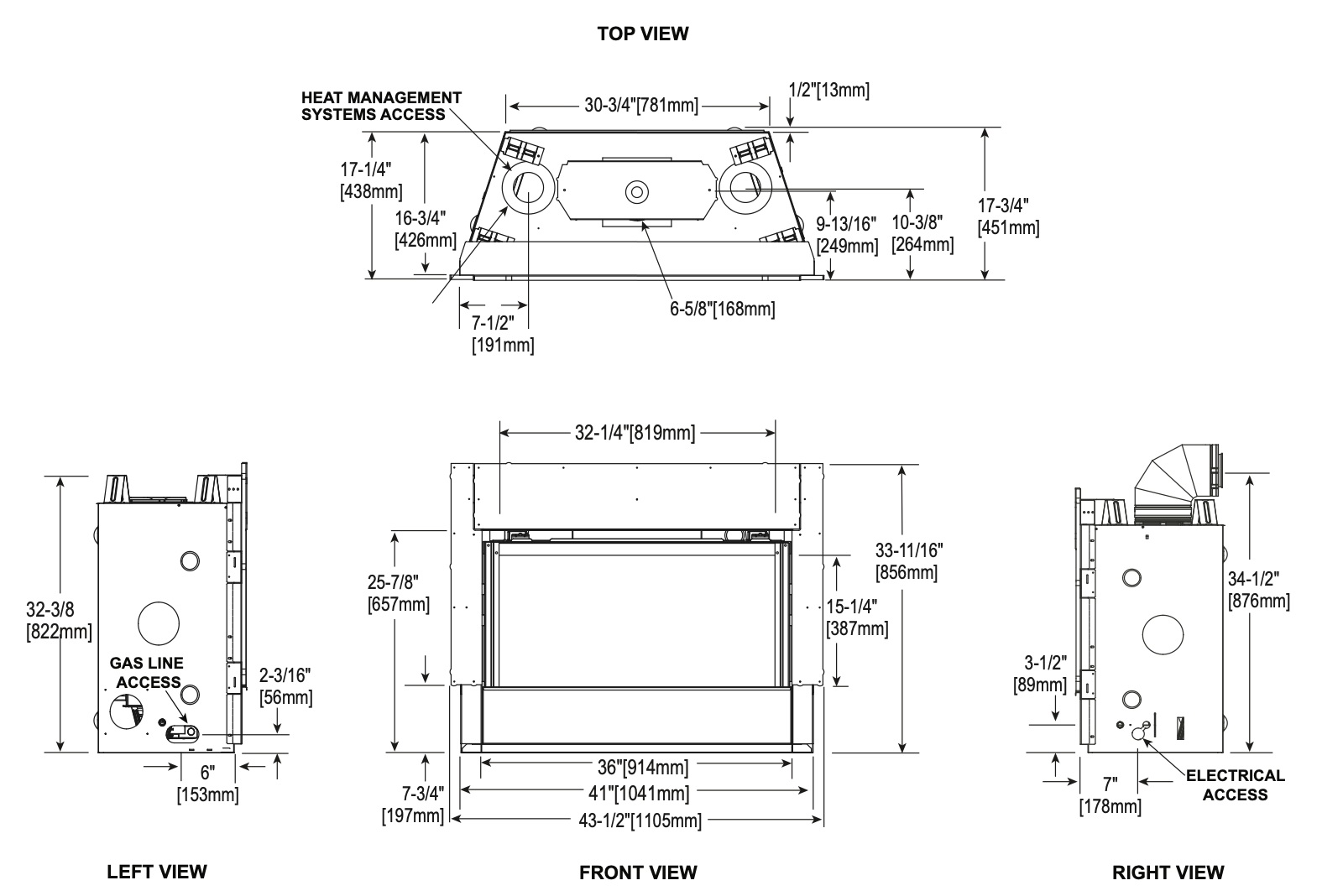

- Unit Dimensions: 41" W x 33 11/16" H x 17 3/4" D
- Framing Dimensions: 42" W × 32 3/4" H × 17 3/4" D
- Venting: Top Vent, Direct Vent (5/8")
- Ignition & Controls: IntelliFire Touch Ignition

Accessories:
- Fronts - Black Clean Face Trim
- Control Options - IPI Remote Control (On/Off, Fan Speed, Flame Control, Temperature Readout, Thermostat Mode, - IPI Or SP Remote Control (On/Off, Temp Readout, Thermostat Mode, Timer Mode)
Warranty:
20-Year Coverage
- Firebox and heat exchanger
10-Year Coverage
- Burners
- Logs and refractory components (coverage varies by component)
5-Year Coverage
- Ignition system components
- Electrical and control components
- Blowers and fans
- Gas valves and pilot assemblies
1-Year Coverage
- Labor allowance for warrantable repairs
- Accessories and decorative components
Important Warranty Notes
- Warranty applies only to the original purchaser and original installation location.
- Product must be installed and operated according to manufacturer instructions.
- Damage caused by improper installation, misuse, abuse, lack of maintenance, or unauthorized modifications is not covered.
- Normal wear items, surface finishes, and discoloration from heat are generally excluded.
Please see owners manual for full warranty breakdown
