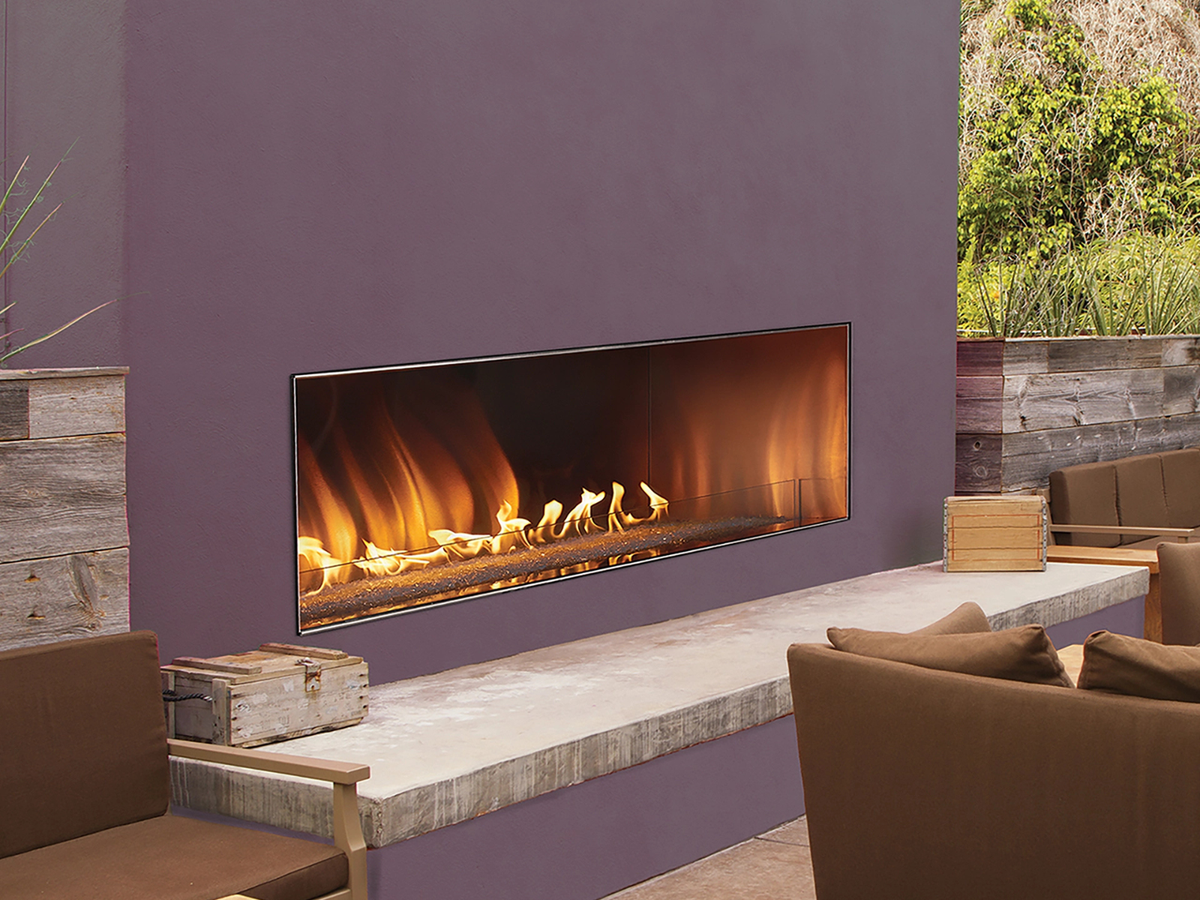

Main Features:

• Expansive 60-Inch Linear Design
  A wide viewing area and dramatic wall-to-wall flame create a stunning focal point for larger patios and outdoor living spaces.
• Vent-Free Outdoor Fireplace
  Designed specifically for outdoor installation, delivering beautiful flames without the need for venting.
• Premium Stainless Steel Construction
  Built from durable stainless steel to withstand the elements while maintaining its sleek, contemporary appearance.
• 55,000 BTU Heat Output
  Produces vibrant flames and comfortable warmth to help extend the enjoyment of your outdoor space.
• Three Flame Height Settings
  Manually adjust the flame between Low, Medium, and High to create the perfect ambiance for any occasion.
• Integrated Multi-Color LED Lighting
  Built-in LED lighting beneath the burner offers seven preset colors with adjustable brightness to beautifully illuminate the fire media.
• Concealed Tilt-Up Control Panel
  Keeps the push-button ignition, flame controls, and LED lighting controls hidden for a clean, streamlined appearance.
• Glass Wind Deflector Included
  Helps shield the flame from light breezes for more consistent performance. Optional taller wind deflectors are available for windier locations.
• Customizable Fire Media
  Designed for use with crushed glass media (required, sold separately) and compatible with an optional reflective black glass liner for added depth and visual impact.
• Single-Sided Viewing Design
  Provides an uninterrupted front-facing view of the fire, making it the perfect centerpiece for patios, outdoor kitchens, and entertainment areas.
• Built for Outdoor Living
  Engineered specifically for year-round outdoor use, delivering dependable performance and lasting durability.

Specifications:

• Fuel Type: Natural Gas or Propane
• Max Heat Output: Max Heat Output 55,000 BTU/hr
• Viewing Area: 60" W x 16 3/16" H

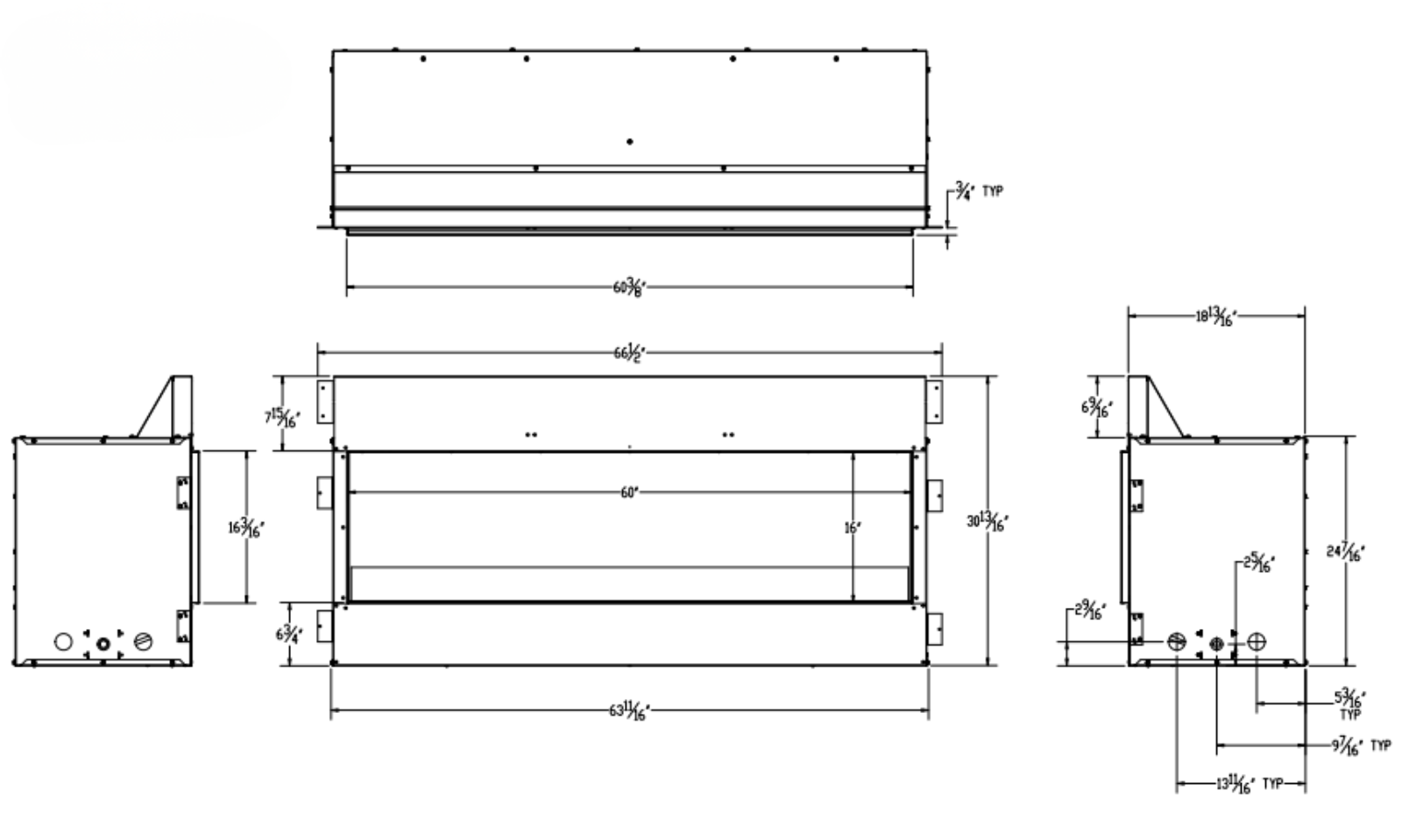

• Unit Dimensions (excluding nailing flanges): 63 3/4" W x 30 7/8" H x 19 1/8" D
• Framing Dimensions (See manual before framing): 64" W x 31" H x 19 1/4" D
• TV-Friendly Installation: Yes — With a Non-Combustible Mantel
• Ignition: Manual Electronic Valve with Push Button Ignition and AA Battery
• Flame Control: 3-Stage Manual Variable Flame Height
• Control Access: Concealed Tilt-Up Control Panel
• Warranty: Limited 5 Year Warranty

Accessories:

• Crushed Glass Media (Required) - Clear, Black, Blue, and Bronze available
• Black Glass Reflective Liner - Add depth to the flame
• Stainless Steel Weather Door - Optional, keep rain, snow, and other weather out of your fireplace
• Extra-Tall Glass Wind Guard - Optional, Replaces standard glass panel in windy applications
• Emergency Stop Timer - Optional, Emergency gas flow stop and timer. Compartment available.

Warranty:

The Carol Rose Outdoor Linear Fireplace is backed by Empire Comfort Systems' Limited Warranty, providing dependable protection for your investment when installed and operated according to the owner's manual.

Five-Year Limited Parts Warranty

The following components are covered for five (5) years from the original purchase date:

• Fireplace components
• Burner assembly
• Firebox
• Valve and ignition components
• All factory-installed parts (excluding items listed below)

If a covered component is found to be defective in materials or workmanship, Empire will repair or replace the part at its discretion.

One-Year Limited Parts Warranty

The following items are covered for one (1) year from the original purchase date:

• Remote controls
• Thermostats
• Accessories
• Replacement parts

Warranty Requirements

• Must be installed by a qualified gas appliance technician.
• Valid for the original purchaser only and is non-transferable.
• The fireplace must be operated and maintained according to Empire's installation and owner's manuals.
• Proof of purchase is required for all warranty claims.

What Isn't Covered

The warranty does not cover:

• Improper installation, misuse, abuse, or lack of maintenance.
• Labor, travel, diagnostic, shipping, removal, or reinstallation costs.
• Damage caused by unauthorized repairs or non-approved replacement parts.
• Normal wear, cosmetic damage, or issues unrelated to manufacturing defects.

For complete warranty details and claim procedures, refer to the Empire owner's manual
