Overview
The DRL4000 Series Linear Direct Vent Gas Fireplace delivers a sleek, modern look that fits beautifully in both contemporary and transitional spaces. Its wide ceramic glass viewing area offers a stunning view of vibrant flames dancing across a reflective black glass media floor, creating a bold visual centerpiece in any room.
For added comfort and convenience, you can upgrade with an optional heat circulating blower to improve warmth distribution, along with a multi-function remote that makes adjusting flame and heat settings effortless.
Main Features:
- Available in 48″, 60”, 72″ and 84″ linear configured models
- Indoor see-through conversion kit available to allow viewing from two living spaces
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*

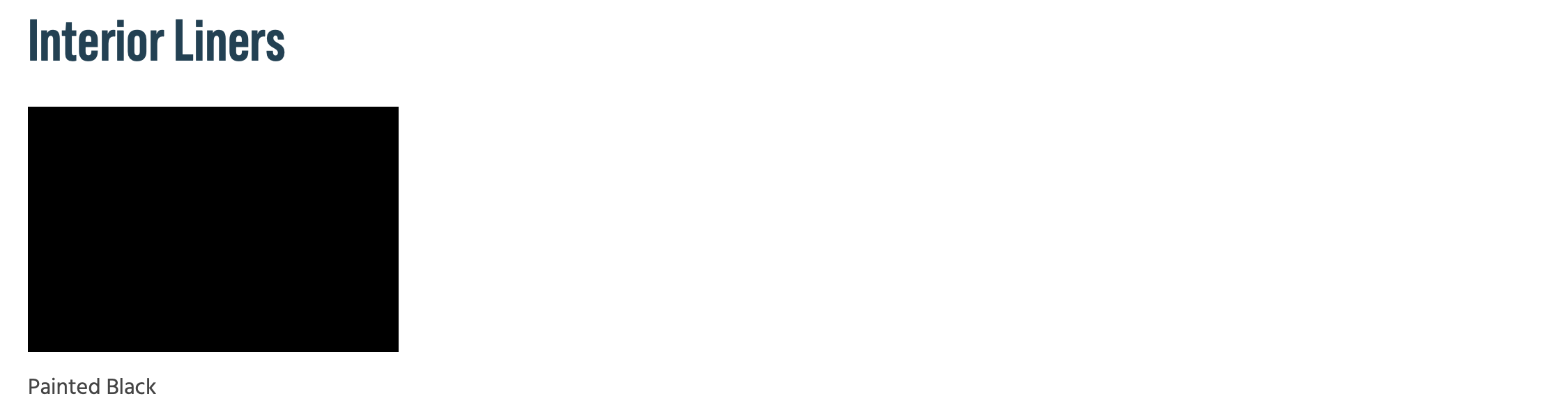

- Black painted interior standard with a reflective glass liner available
- Reflective black crushed glass media included with several optional colors available to customize the look
- Optional blower and hand held multi-function remote control available
- 20-year limited warranty

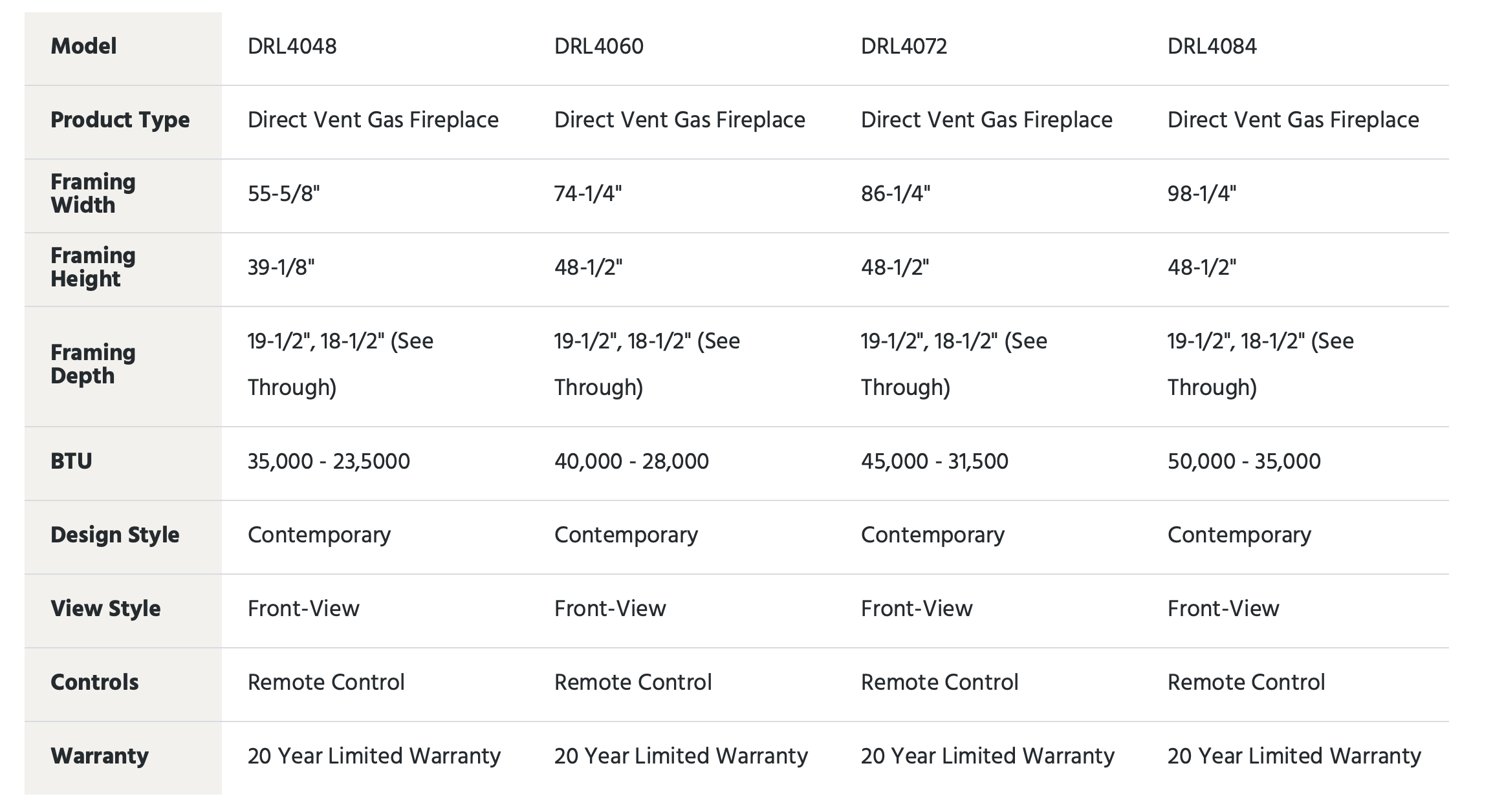

Specifications:
- Model: DRL4072
- Fuel Type: Natural Gas or Propane
- Max Heat Output: Max Heat Output 40,000 BTU/hr
- Viewing Area (W × H): 68 5/8" W x 15 5/8" H
- Unit Dimensions: 86" W x 40 3/8" H x 20 1/8" D

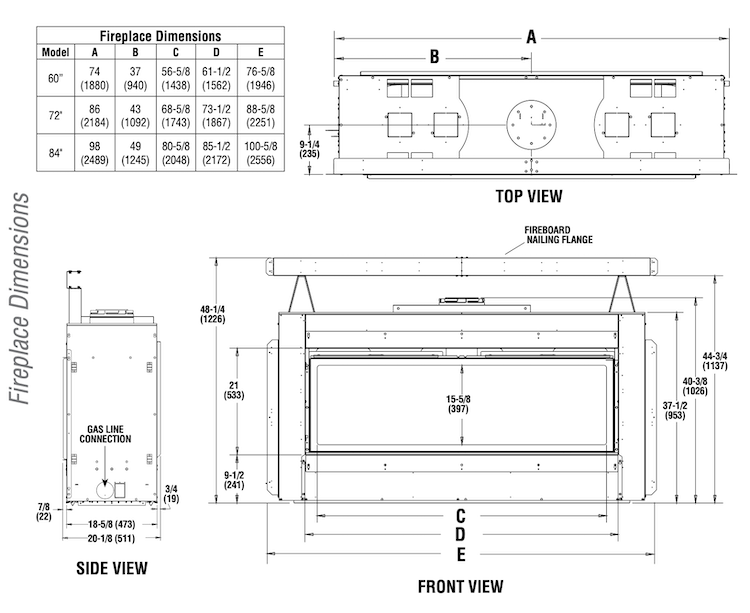

- Framing Dimensions: 86 1/4"" W x 48 1/2" H x 19 1/2" D, (18 1/2" D, See Through Option)
- Venting: Top Vent
- Ignition & Controls: Electronic Ignition
- Warranty: 20-year Limited Warranty
- Manufactured In: Russelville, Alabama USA
Accessories:
- Glass Media Kits: Black Glass, Clear Glass, Bronze Glass, Blue Glass, Copper Glass (Optional)

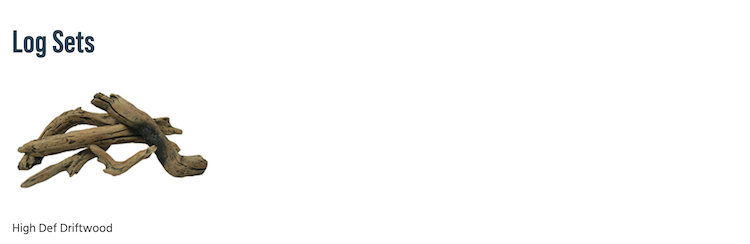

- Floor Media Kits: River Rock, Driftwood Log Set (Optional)
- Surrounds: Black Linear (Optional)
- Liner Kits: Black Reflective Glass (Optional)
- Configuration Kit: Linear Direct Vent See-Through Conversion Kit, Linear Indoor/Outdoor See-Through Conversion Kit, HeatFlo Convection Air Circulation Kit (Optional)

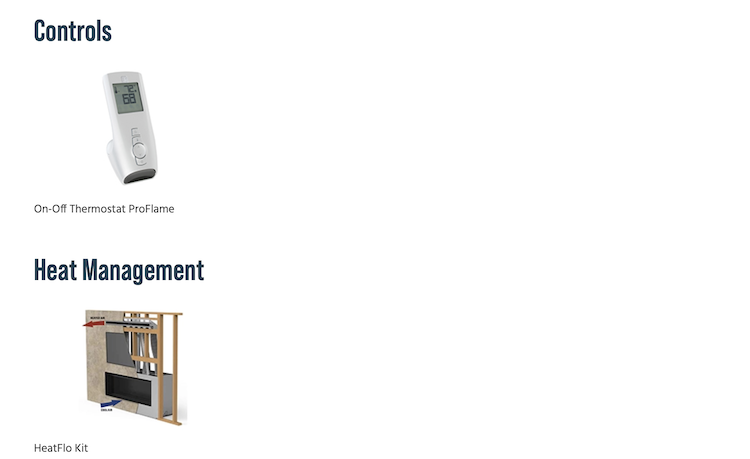

- Control Options: On/Off, T-Stat Remote (Optional)
FAQs:
Q: What is included with the fireplace?
A: IPI/CPI Ignition with battery backup, reflective black crushed glass media, ceramic glass, black painted interior, and standard protective screen barrier
Q: Is the venting included with the fireplace?
A: The venting is not included because each vent run has different needs. Please give us a call or text and we would be happy to create a venting package that is perfect for you needs!
Q: What does top vent mean?
A: This means that the fireplace can be vented out the top of the unit or straight out the back of the unit. There are venting ports on both the top and rear of the unit.
