Overview
The DRL4000 Series Linear Direct Vent Gas Fireplace delivers a sleek, modern look that fits beautifully in both contemporary and transitional spaces. Its wide ceramic glass viewing area offers a stunning view of vibrant flames dancing across a reflective black glass media floor, creating a bold visual centerpiece in any room.
For added comfort and convenience, you can upgrade with an optional heat circulating blower to improve warmth distribution, along with a multi-function remote that makes adjusting flame and heat settings effortless.
Main Features:
-
48″, 60″, 72″ & 84″ linear configured models flexible sizing for a variety of wall layouts
-
Optional indoor see through conversion kit view flames from two interior living spaces
-
Optional indoor outdoor see through conversion kit 48″ model only enjoy the fire inside and outside
-
Optional HeatFlo™ heat management kit directs heat above TVs and heat sensitive wall hangings
-
Electronic ignition with battery backup continued operation during power outages
-
Sleek clean face design with integrated tile stops simplified finishing and modern appearance
-
Durable ceramic glass viewing area with protective screen optimal heat transfer and added safety
-
Standard black painted interior with optional reflective glass liner for enhanced flame depth
-
Included reflective black crushed glass media with additional color options available
-
Optional heat circulating blower improved warmth distribution
-
Optional hand held multi function remote control convenient flame and heat management
-
Backed by a 20 year limited warranty long term reliability and confidence

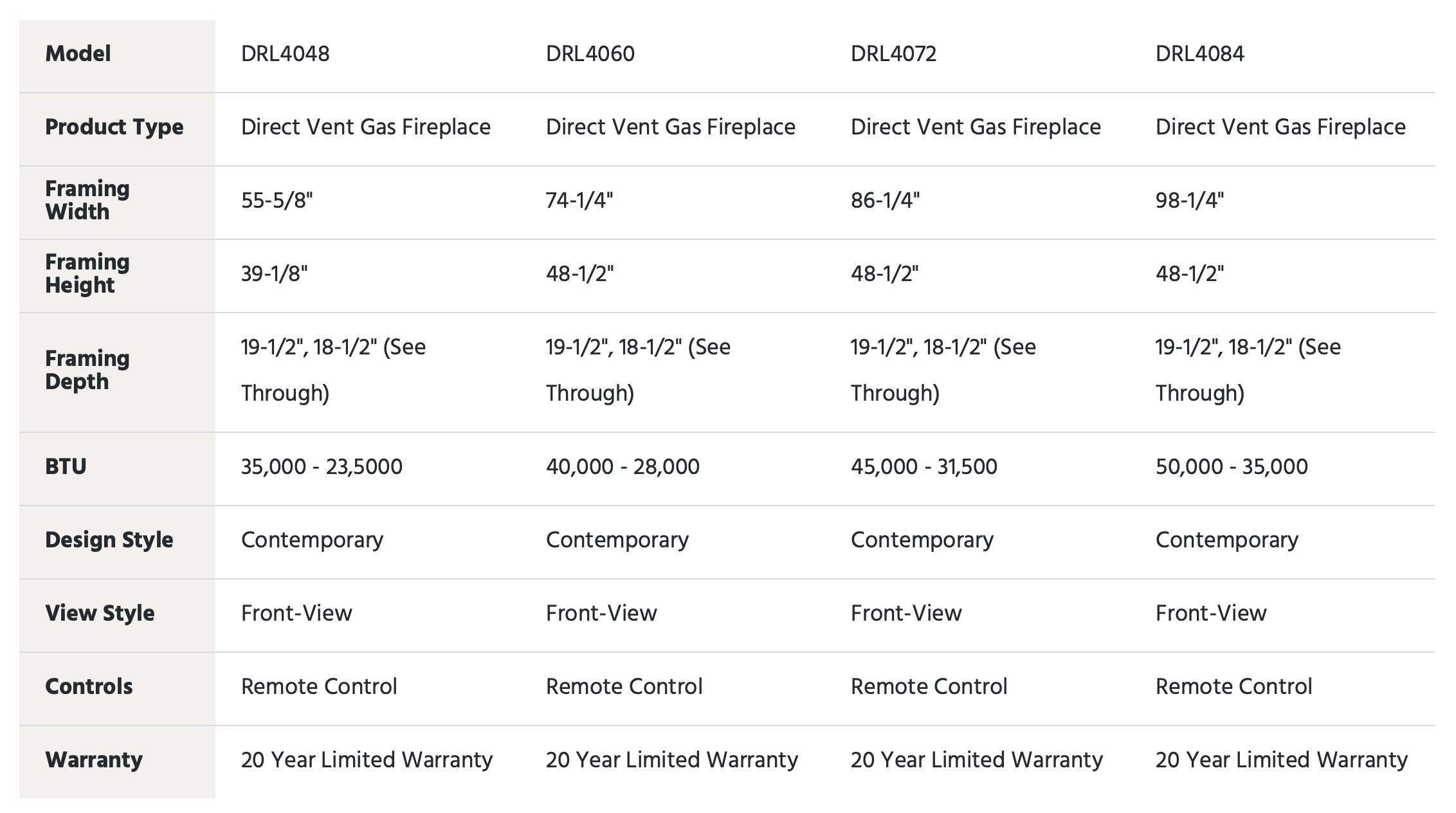

Specifications:
- Model: DRL4048
- Fuel Type: Natural Gas or Propane
- Max Heat Output: Max Heat Output 35,000 BTU/hr
- Viewing Area (W × H): 48" W x 12" H
- Unit Dimensions: 54 1/4" W x 32 7/8" H x 20" D
- Framing Dimensions: 55 5/8" W x 39 1/8" H x 19 1/2" D, (18 1/2" D, See Through Option)
- Venting: Top Vent
- Ignition & Controls: Electronic Ignition
- Warranty: 20-year Limited Warranty
- Manufactured In: Russelville, Alabama USA

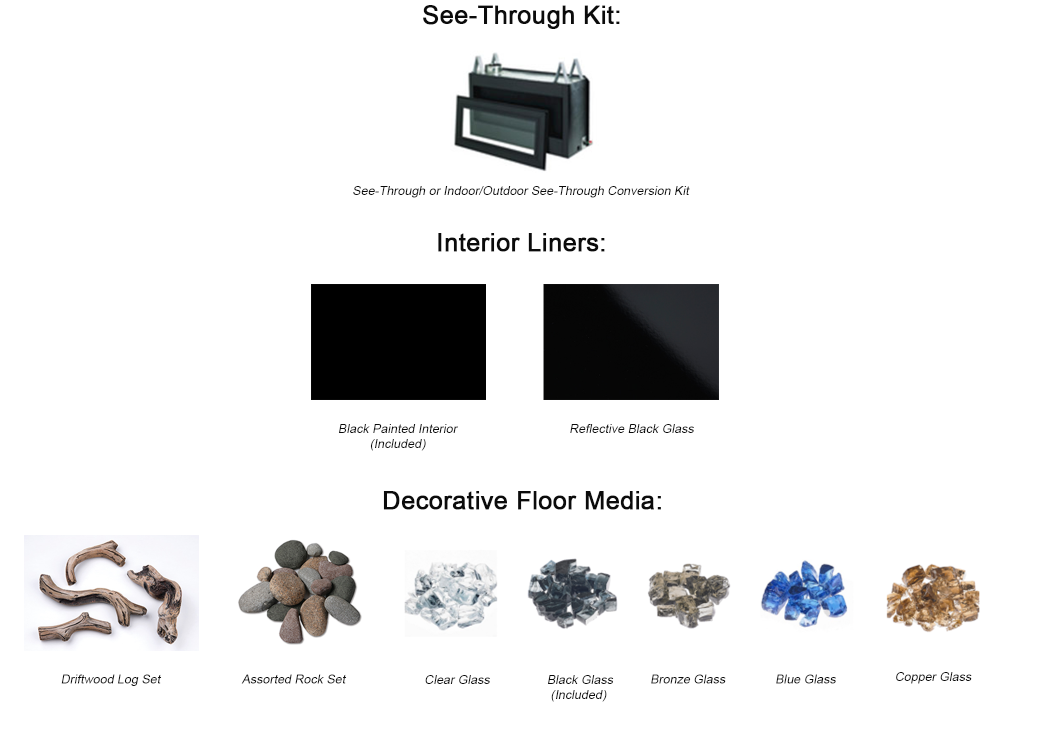

Accessories:

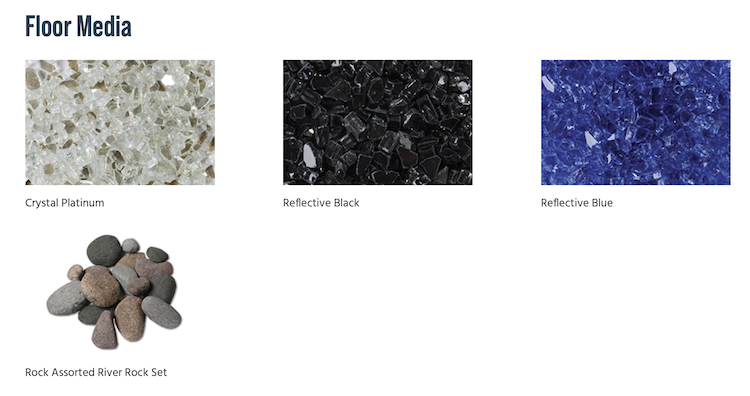

- Glass Media Kits: Black Glass, Clear Glass, Bronze Glass, Blue Glass, Copper Glass (Optional)

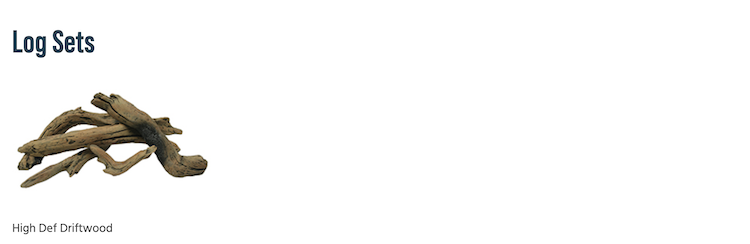

- Floor Media Kits: River Rock, Driftwood Log Set (Optional)
- Surrounds: Black (Optional)

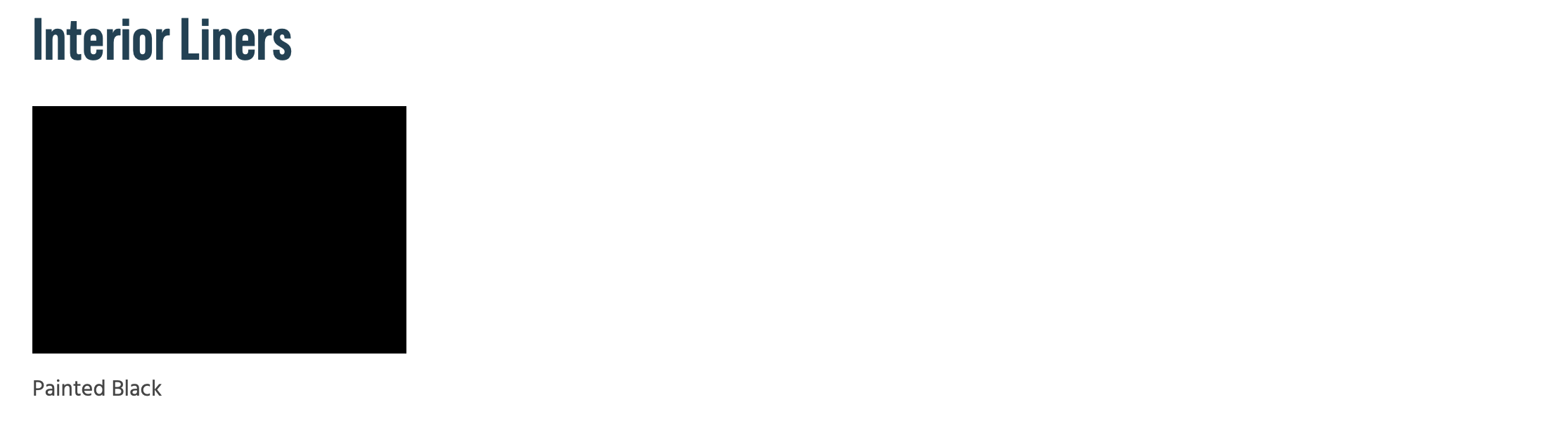

- Liner Kits: Black Reflective Glass (Optional)

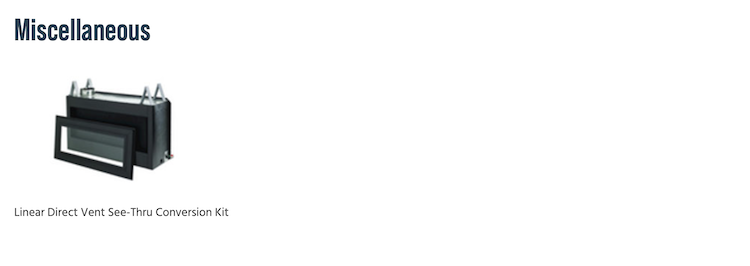

- Configuration Kit: Linear Direct Vent See-Through Conversion Kit, Linear Indoor/Outdoor See-Through Conversion Kit, HeatFlo Convection Air Circulation Kit (Optional)

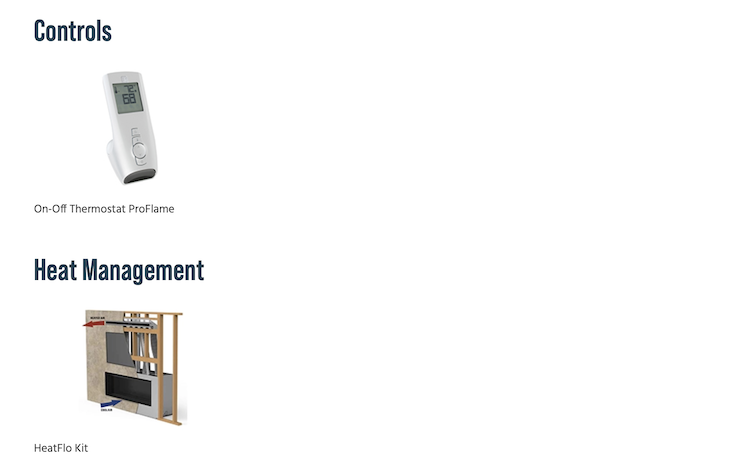

- Control Options: On/Off, T-Stat Remote (Optional)
FAQs:
Q: What is included with the fireplace?
A: IPI/CPI Ignition with battery backup, reflective black crushed glass media, ceramic glass, black painted interior, and standard protective screen barrier
Q: Is the venting included with the fireplace?
A: The venting is not included because each vent run has different needs. Please give us a call or text and we would be happy to create a venting package that is perfect for you needs!
Q: What does top vent mean?
A: This means that the fireplace can be vented out the top of the unit or straight out the back of the unit. There are venting ports on both the top and rear of the unit.
Product Resources
