Overview
Main Features:
-
Available in 35", 40", and 45" models
-
17" mid-depth design saves valuable floor space
-
Top/rear flue combination for flexible installation
-
Electronic ignition with seamless battery backup for operation during power outages (IPI/CPI switch standard)
-
High heating efficiency for increased comfort and lower operating costs
-
Tempered glass with included protective screen*
-
Reflective black crushed glass media included (optional colors available)
-
Face options include a Vista inside-fit façade or multiple Designer overlap-fit facades (required)
-

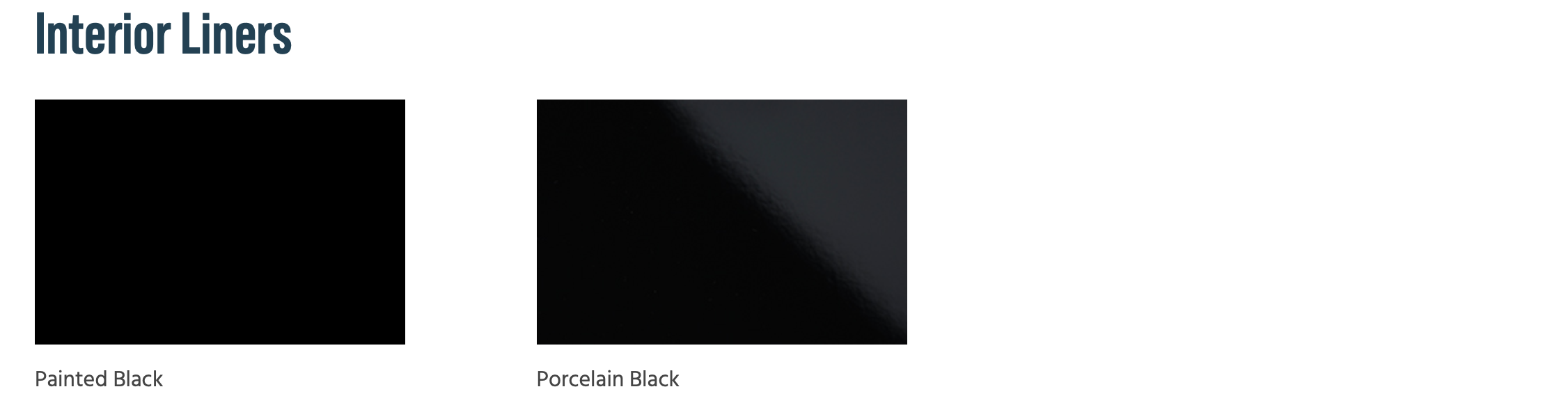

Black painted interior, with an optional liner upgrade
-
Optional blower, touch remote, or handheld remote available for all models
-
Durable textured powder-coat finish
-
Backed by a 20-year limited warranty

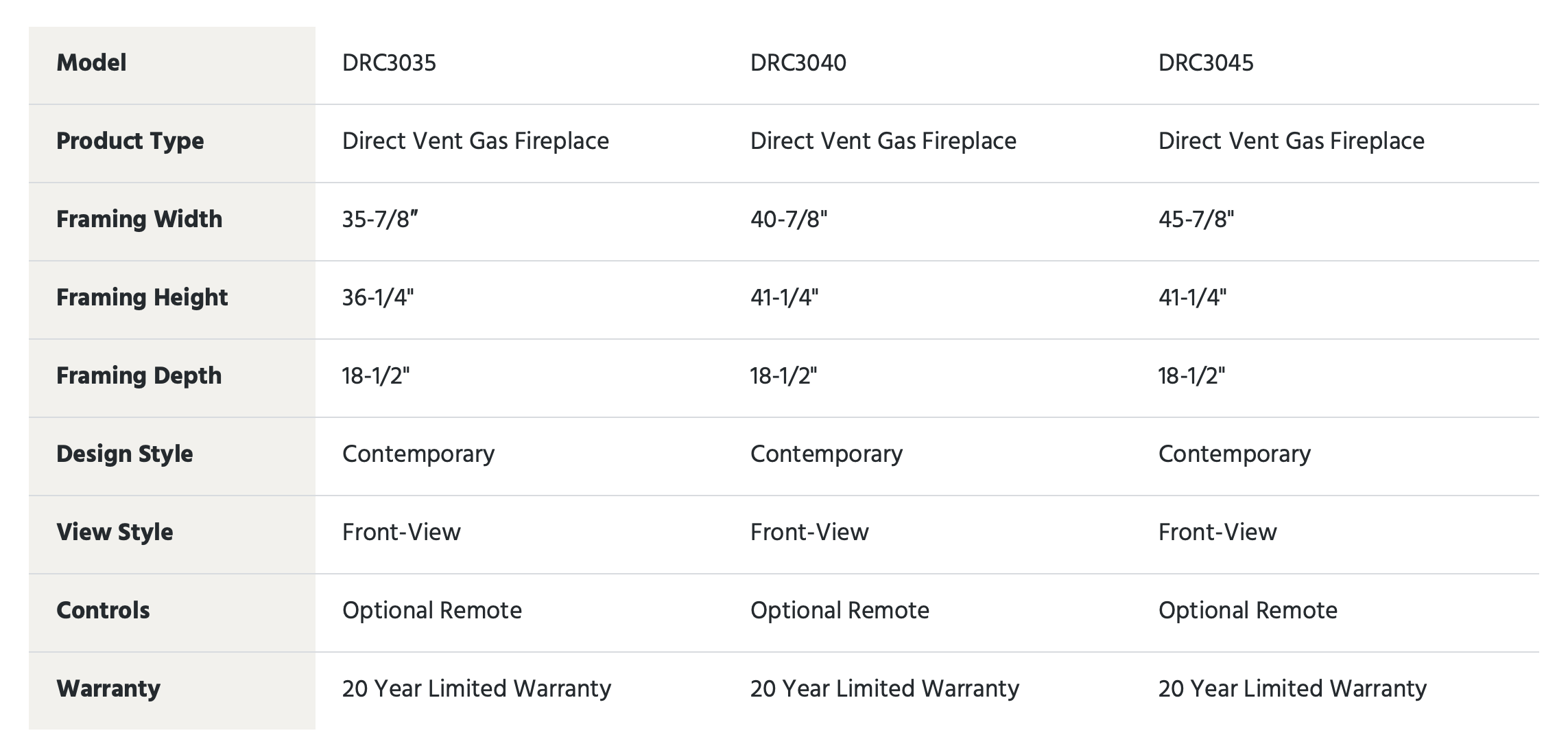

Specifications:
- Model: DRC3040
- Fuel Type: Natural Gas or Propane
- Max Heat Output: Max Heat Output 24,000 BTU/hr
- Viewing Area (W × H): 34 1/4" W x 24 1/2" H
- Unit Dimensions: 35 1/4 " W x 32 1/8" H x 17" D
- Framing Dimensions: 35 7/8" W x 36 1/4" H x 18 1/2" D
- Venting: Top or Rear Vent
- Ignition & Controls: Electronic Ignition
- Warranty: 20-year Limited Warranty
- Manufactured In: Russelville, Alabama USA
Accessories:
- Facades: Black Vista Frame, Black Reflection, Warm Chestnut Reflection (Required)
- Log Sets: Driftwood Log Set (Optional)
- Liner Kits: Black Reflective Porcelain (Optional)
- Blower Kits: Standard Blower, Variable Speed with Wall Switch, Variable Speed with Thermo Snap Switch (Optional)
- Remote Control Kits: LCD Display with Thermostat and Time modes, Two Button with Timer or On/Off Mode (Optional)
- Glass Media Kits: Black Glass, Clear Glass, Bronze Glass, Blue Glass, Copper Glass (Optional)
Accessories:
FAQs:
Q: What is included with the fireplace?
A: Combination top/rear flue, electronic IPI/CPI ignition with battery back-up, reflective black crushed glass media, tempered glass and black painted interior.
Q: Is the venting included with the fireplace?
A: The venting is not included because each vent run has different needs. Please give us a call or text and we would be happy to create a venting package that is perfect for you needs!
Q: What does top vent mean?
A: This means that the fireplace can be vented out the top of the unit or straight out the back of the unit. There are venting ports on both the top and rear of the unit.
