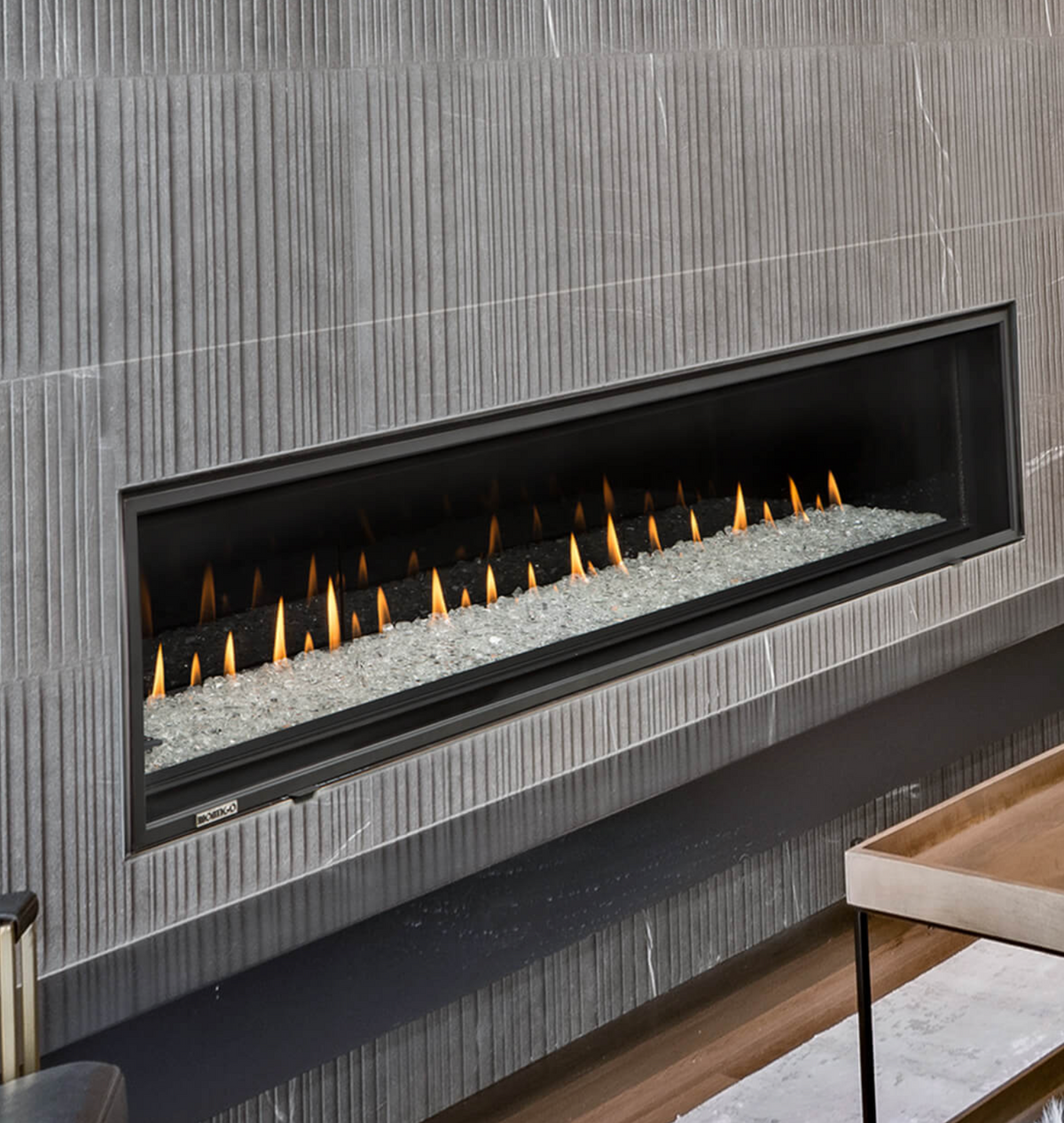

Montigo DelRay Linear 72" Full Load Direct Vent Gas Fireplace - DRL7213NI-2

Starting at: Subtotal: $7,139.00 $7,139.00
Size:
72"
DelRay Linear 72" Full Load Direct Vent Gas Fireplace - #2 Rated Gas Fireplace

In Stock

Montigo DelRay Linear 72" Full Load Direct Vent Gas Fireplace - DRL7213NI-2

Starting at: Subtotal: $7,139.00 $7,139.00
Size:
72"

| Model #: DRL7213NI-2-

Clear All

Please select all the required options

Starting at: Subtotal: $7,139.00 $7,139.00
DelRay Linear 72" Full Load Direct Vent Gas Fireplace - #2 Rated Gas Fireplace

In Stock

Montigo DelRay Linear 72" Full Load Direct Vent Gas Fireplace - DRL7213NI-2

Starting at: Subtotal: $7,139.00 $7,139.00


Brochure            Manual          Spec Sheet



The DelRay 72" Full Load Linear gas fireplace is part of our #2-rated series in our Top 5 linear fireplaces, offering clean, modern design with efficient performance at an entry-level price. Its slim framing depth makes it ideal for both new construction and retrofit installations without taking up valuable floor space. This high-efficiency, direct-vent fireplace is mobile-home approved and fully customizable with a variety of burner media options. Combustible wood finishes can be installed right to the glass for a seamless, built-in look. Optional upgrades like heat management, propane conversion, and trim kits add flexibility for your installation.





Main Features:

  • Wide, striking flame view with a 72½″ glass opening that becomes a bold focal point in your space.

  • Concealed burner with Ice fire glass for a sleek, modern look and warm, inviting glow.

  • Multi-function remote control for easy flame and heat adjustment from anywhere in the room.

  • Remote-controlled fans help circulate warm air evenly throughout your living space.

  • Micro mesh safety screen & black reflective glass enhance safety without disrupting the clean design.

  • Halogen downlighting adds ambient lighting and visual depth even when the fire isn’t running.

  • Optional upgrades include propane conversion, adjustable trim kits, driftwood & stone or glass media, and heat management kits for personalized style and installation flexibility.

  • The included Cool Wall Release kit helps to protect electronics and maintain a comfortable wall surface. Check out our blog explaining the option!



Specifications:

  • Model: DRL7213NI-2 (Full Load Model)
  • Fuel Type: Natural Gas or Propane (NG to LP Conversion Available)
  • Max Heat Output: Max Heat Output 35,000 BTU/hr
  • Viewing Area: 72 1/2"" W X 14 11/16" H
  • Unit Dimensions: 82 3/4" W x 27" H x 14 7/16" D
  • Framing Dimensions: 81" W × 33 11/16″ H × 16"″ D
  • Venting: Top Vent, Direct Vent (5/8")
  • TV-Friendly Installation: Yes — with Cool Wall Release
  • Ignition & Controls: Proflame 2 IPI with Remote Control
  • Warranty: 15 Year Limited Warranty (Check manual for full warranty breakdown)





Accessories:

  • Crushed Glass Media: Choice of Color - Clear (included), Copper, Black, Blue, and Bronze (Optional)
  • Remote Control: Multi-function Remote Control (Included), Wall Mounted ProFlame 2 Remote, Wifi Dongle for Bluetooth Control (Optional)
  • Fan Kit: Included
  • Mesh Screen: Included
  • Interior Liner: Reflective Glass Panels (Included)
  • Log Set: Driftwood (Optional)
  • Ember Media Kits: Speckled Stones (Optional)
  • Heat Management: Cool Wall Release Kit (Included, use is optional)
  • Trim Kit: Optional 1" Adjustable Trim Kit (standard kit for up to 11/16" deep facing materials & extra deep kit for 1 1/2" - 2" deep facing materials)

FAQs:



Q: What accessories come standard with the Full-Load version of the fireplace?
A: Multi-function remote, remote controlled fans, mesh screen, black reflective glass panels, halogen downlighting, battery backup.

Q: What is the difference between the Full-Load and Basic versions?
A: The Full Load comes standard with all the accessories mentioned above. The Basic does not include any of those accessories but has a lower price point. Any accessories can be added to the Basic for an additional price.

Q: Can I install a TV above the fireplace?
A: Yes! Montigo recommends using one of their heat management solutions to redirect heat away from the front of the fireplace, helping create a safer area for mounting a TV above. The Cool Wall Release is included with this fireplace and uses built-in knockouts on the unit to allow heat to rise behind the wall and exit through a heat-release opening. This helps reduce heat buildup directly above the fireplace. Full installation requirements and clearances are outlined in the installation manual.




Have a different question? Call or text us and our experienced team will be happy to help!
