Manual               Spec Sheet

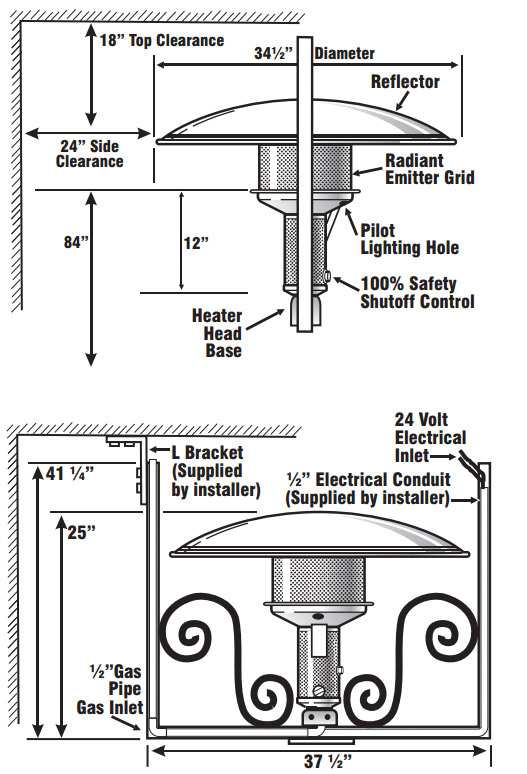

The Sunglo model A244 suspended heater frees your deck by supporting heaters from above. The distinctive frame works well in a variety of decors. Optional automatic control systems make these heaters easy to operate even though they may be out of easy reach. Heat coverage varies depending on the wind exposure on patio. The average spacing between these heaters is 12 feet. This heater is available with a variety of control systems. Each control system is equipped with 100% safety shutoff. The A244 is a manual heater requiring no electrical hookup. The A244V with solenoid gas valve allows the heater to be turned OFF/ON at the turn of a switch. The A2445E offers a completely automated ignition system. Both the A244V and A244E requires an external 24 VAC source. This heater offers a large deep aluminum disk reflector for maximum comfort, a primary aerated burner to minimize noise, and 100% safety shutoff. The wrought iron frame with classic metal scroll design comes in a black powder coat finish.







Features:

• Input Rating 50,000 BTU/HR
• Fuel Type Natural Gas
• Ignition Pilot or Electronic

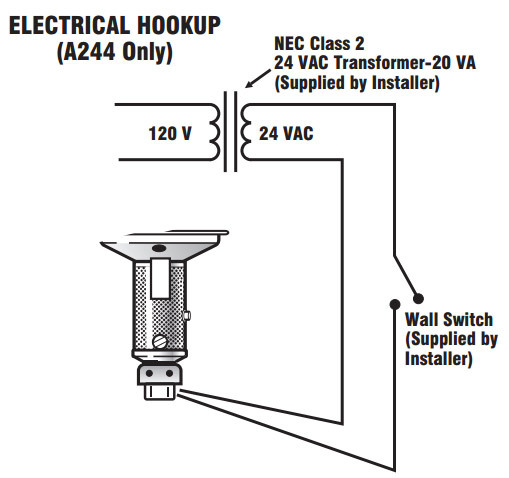

• Electrical (A244V & E) 24 VAC – 20 VA
• 24 VAC Transformer Not Included
• Wind Rating 10 mph Horizontal
• Nominal Spacing 12 feet
• Mounting Suspended
• Manufactured United States
• Certification CSA International
• Warranty One Year / Parts Only
• Weight 49 lbs
