Overview

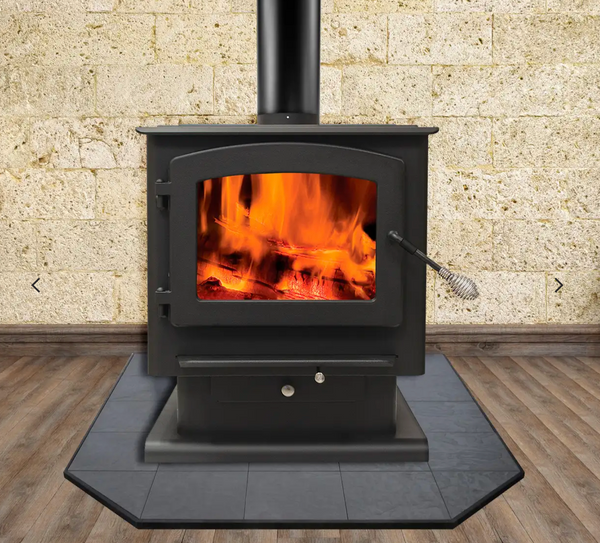

The 3.5 ft³ firebox can take logs up to 20” long and can put out enough heat to warm up to 2,400 ft² of living space. The cast iron arched door with an extra-large glass surface provides a great view of this stove’s beautiful burn and makes a cozy addition to any room. A rear heat shield and ash pan provide additional convenience, and side heat shields (not included) may be added for even closer clearances to combustibles. The stove is Mobile Home approved (USA) and can potentially generate more than 75,000 BTUs when burning seasoned cordwood.
Features:
- Made in USA
- Heats up to 2,400 ft²
- Burns wood logs up to 20" long
- Up to 14 h burn time per filling
- EPA latest certification means High Efficiency and Low Emissions
- Mobile Home Approved (USA only)
Specifications:
| Fuel type | Dry cordwood (16" recommended) |
| Heating area | 900 - 2,400 ft² |
| Overall firebox volume | 3.5 ft³ |
| EPA loading volume | 33 lb |
| Maximum burn time | 10 h |
| Maximum heat output-dry cordwood | 41,480 BTU/h (12.2 kW) |
| Minimum overall heat output rate | 16,038 BTU/h (4.7 kW) |
| Maximum overall heat output rate | 39,623 BTU/h (11.6 kW) |
| Average overall efficiency-dry cordwood (HHV) | 69% |
| Average overall efficiency-dry cordwood (LHV) | 74% |
| Optimum efficiency | 76% |
| Optimum heat transfer efficiency | 70% |
| Average particulate emission rate | 2.0 g/h |
| Average CO | 138 g/h |
| Mobile home approved | Yes, in the US only |
| Certified according to applicable standards | By an accredited laboratory (CAN/USA) |
| Overall dimension (Width) | 23" |
| Overall dimension (Height) | 29 5/8" |
| Overall dimension (Depth) | 31 1/2" |
| Combustion technology | Non catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Distance-center of the flue outlet to back unit | 7 1/2" |
| Distance-center of the flue outlet to side unit | 12" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 15" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 15" |
| Door opening size (Height) | 10 3/4" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 13 7/8" x 9 7/8" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 1/4" |
| Firebox size (Width) | 19 7/8" |
| Firebox size (Height) | 12 1/2" |
| Firebox size (Depth) | 22 5/8" |
| Log positioning | Loading over width or length |
| Maximum log length | 20" |
| Firebox lined with refractory bricks | Yes |
| Baffle type | Ceramic fiberboard (2 layers of 1/2" ea.) |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | ASTM E3053-17, EPA Alt 125 |
| Canadian Standard (safety) | ULC-S 627-00 |
| USA Standard (safety) | UL 1492-2011 |
| Warranty | 5 years limited |
| Shipping weight | 440 lb |
