Overview

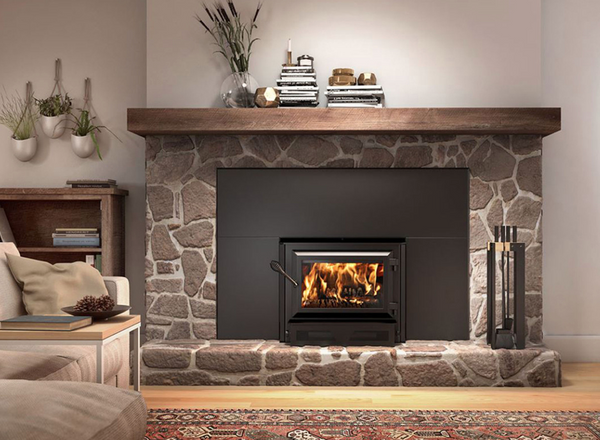

The Ventis HEI170 medium sized wood burning insert is recommended for heating smaller spaces from 500 - 1, 800 sq. ft. The firebox is lined with refractory bricks for better heat distribution. The HEI170 offers non-catalytic combustion technology, and a Stainless-steel secondary-air system which improves gas combustion. This unit has a 6hr Maximum Burn Time, can hold 18" logs and is EPA 2020 approved.
The Ventis HEI170 qualifies for a biomass stove tax credit! What does that mean? How do you take advantage of this credit? Please see our blog explaining the process.
Wood-burning inserts must only be installed inside an existing masonry fireplace and never in a wooden or combustible structure.
Features:
- Medium size wood insert suitable for smaller spaces
- Glass air wash system for a cleaner view of the flames
- EPA certified
- Non-catalytic combustion technology
- Cast iron door
- 144 CFM blower
- Stainless steel heat shield added to the firestop
Specifications:

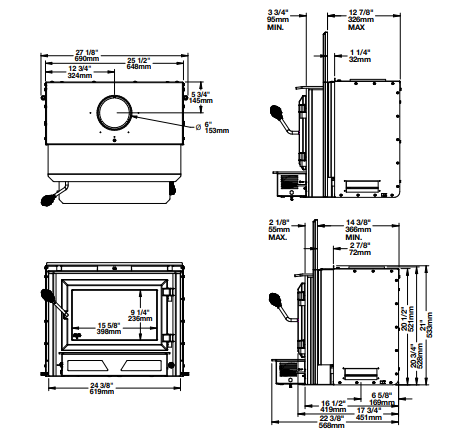

- Overall Dimensions: 27 1/8" W x 21" H x 22 3/8" D
- Minimum fireplace opening: 27 1/2" W x 21 1/2" H x 12 3/4" D
- Firebox Dimensions: 19 5/8" W x 11 7/8" H x 13 1/2" D
- Door Opening: 17 1/4"" W x 8 3/4" H
- 65,000 BTUs
- 1.86 ft³ overall firebox volume
- 500 - 1,800 ft² heating area
- Optimum efficiency: 76%
- Emissions: 2.4 g/h
- Maximum log length: 18''
- Flue diameter: 6"
