Overview

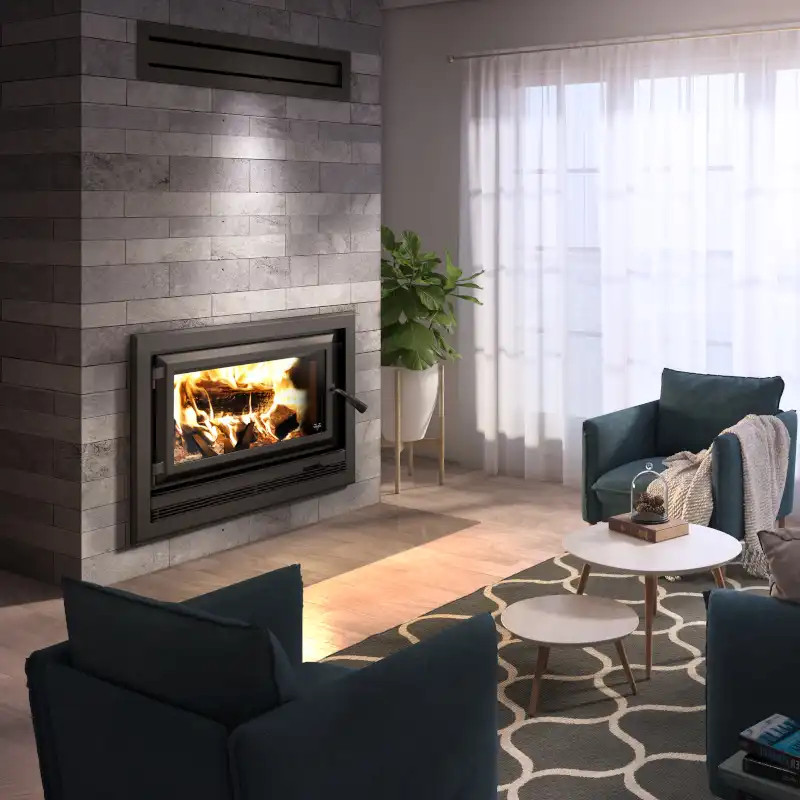

The HE275CF is a unique, clean-face, modern design unit. It features non-catalytic technology for a clean burn and a stainless steel secondary-air system, which improves gas combustion A choice of modern or traditional-look hot air gravity kit are required for this unit so that hot air can be introduced into another room. This unit include a firescreen door option to allow the enjoyment of an open fire. The Ventis HE275CF large-sized contemporary single-door wood-burning fireplace is recommended for heating larger spaces from 750 - 2,200 sq.ft. The firebox is lined with molded refractory bricks for better heat distribution. This unit has an 8-hour maximum burn time, can hold 20" logs, and is EPA 2020 approved. 6" Ventis Stainless Steel anchor plate & fresh air intake included. *Required Gravity Air Distribution Kit (Traditional or modern NOT INCLUDED)*.
â–ªDesigned mainly for heating
â–ªLarge contemporary fireplace with single door
â–ªEPA 2020 certified
â–ªNon-catalytic combustion technology
â–ªInstallation authorized on the Island of Montreal
â–ªFirestop made of high density insulation board
â–ªMinimalist Ventis distinctive louver
â–ªMolded refractory stones
â–ª6" Ventis stainless steel anchor plate included
â–ªFresh air intake adapter and andiron included
Required option: hot air gravity kit traditional (AC01375K) or modern (AC01389K)
General Features:
| Premium quality blower included (CFM) | Optional |
|---|---|
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 15" |
| Overall dimension (Width) | 36 3/4" |
| Overall dimension (Height) | 40 5/8" |
| Overall dimension (Depth) | 27 1/4" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 25 3/8" |
| Door opening size (Height) | 10 1/2" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 24" x 10 5/8" |
| Firebox size (Width) | 20 3/4" |
| Firebox size (Height) | 12 1/8" |
| Firebox size (Depth) | 12 7/8" |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Baffle type | High density insulation board |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S610 |
| USA Standard (safety) | UL 127 |
| Warranty | Lifetime limited |
| Shipping weight | 495 lb (225 kg) |
Appliance Performance
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Recommended heating area (9) | 750 - 2,200 ft² |
| Overall firebox volume | 2.5 ft³ |
| EPA loading volume | 1.94 ft³ |
| Maximum burn time (9) | 8 h |
| Maximum heat output-dry cordwood (4) | 80,000 BTU/h |
| Minimum overall heat output rate (4) (5) | 12,700 BTU/h (3.72 kW) |
| Maximum overall heat output rate (4) (5) | 60,700 BTU/h (17.79 kW) |
| Average overall efficiency-dry cordwood (HHV) (5) (6) | 64 % |
| Average overall efficiency-dry cordwood (LHV) (5) (7) | 68 % |
| Optimum efficiency (1) (2) | 70 % |
| Optimum heat transfer efficiency (8) | 68 % |
| Average particulate emission rate (3) | 1.2 g/h |
| Average CO (10) | 98 g/h |
