Overview

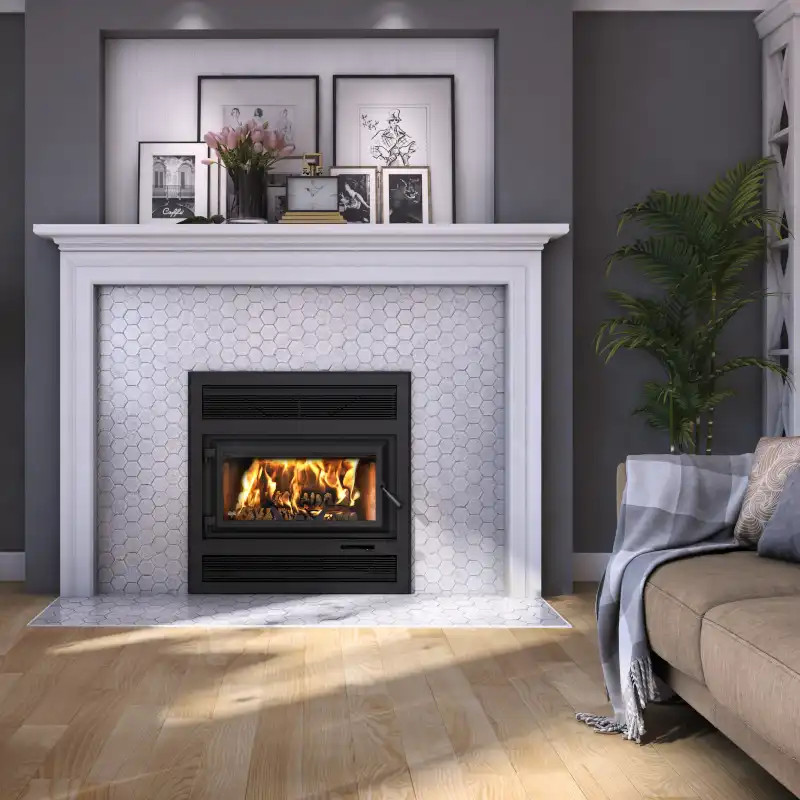

The Ventis HE250R large sized classic ecological single cast iron door wood burning fireplace is recommended for heating larger spaces from 750 - 2, 200 sq. ft. The firebox is lined with molded refractory bricks for better heat distribution. The HE250R offers non-catalytic combustion technology, and a Stainless-steel secondary-air system which improves gas combustion. This unit has a 8hr Maximum Burn Time, can hold 20" logs, 80,000 BTU/H Max, and is EPA 2020 approved. 6" Ventis Stainless Steel anchor plate & fresh air intake included.
â–ªLarge classic fireplace with single door
â–ªEPA 2020 certified
â–ªNon-catalytic combustion technology
â–ªInstallation authorized on the Island of Montreal
â–ªFirestop made of high density insulation board
â–ªVentis distinctive louvers included
â–ª176 CFM blower included
â–ªMolded refractory stones
â–ª6" Ventis stainless steel anchor plate included
â–ªFresh air intake adapter included
General Features:
| Premium quality blower included (CFM) | 176 CFM included |
|---|---|
| Certified according to applicable standards | CAN/USA accredited laboratory |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 15" |

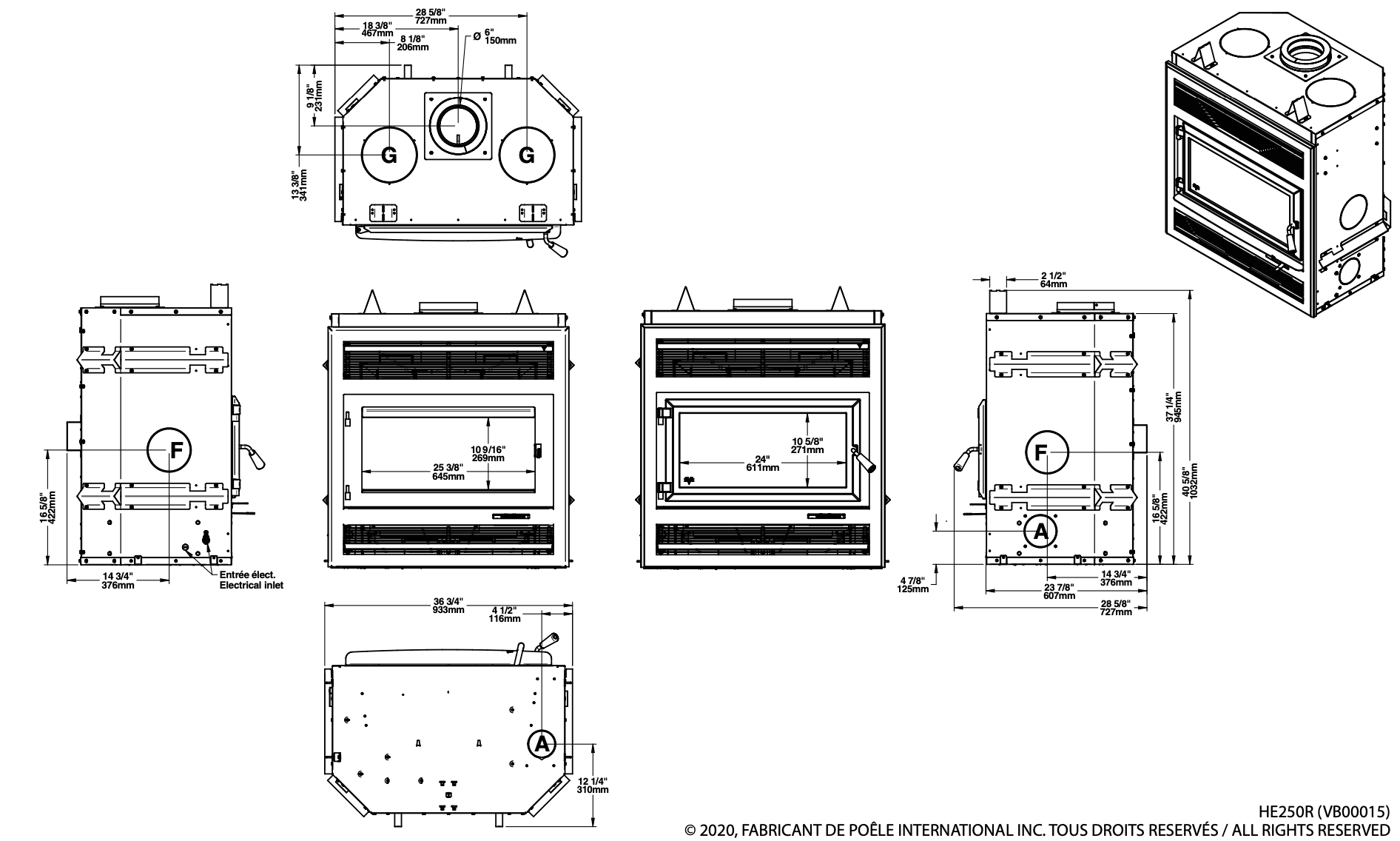

| Overall dimension (Width) | 36 3/4" |
| Overall dimension (Height) | 37 1/4" |
| Overall dimension (Depth) | 28 5/8" |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 25 3/8" |
| Door opening size (Height) | 10 9/16" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 24" x 10 5/8" |
| Firebox size (Width) | 20 3/8" |
| Firebox size (Height) | 12 1/8" |
| Firebox size (Depth) | 13" |
| Maximum log length | 20" |
| Log positioning | Loading over width |
| Baffle type | High density insulation board |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S610 |
| USA Standard (safety) | UL 127 |
| Warranty | Lifetime limited |
| Shipping weight | 495 lb (225 kg) |
Appliance Performance:
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Recommended heating area (9) | 750 - 2,200 ft² |
| Overall firebox volume | 2.5 ft³ |
| EPA loading volume | 1.94 ft³ |
| Maximum burn time (9) | 8 h |
| Maximum heat output-dry cordwood (4) | 80,000 BTU/h |
| Minimum overall heat output rate (4) (5) | 12,700 BTU/h (3.72 kW) |
| Maximum overall heat output rate (4) (5) | 60,700 BTU/h (17.79 kW) |
| Average overall efficiency-dry cordwood (HHV) (5) (6) | 64 % |
| Average overall efficiency-dry cordwood (LHV) (5) (7) | 68 % |
| Optimum efficiency (1) (2) | 70 % |
| Optimum heat transfer efficiency (8) | 68 % |
| Average particulate emission rate (3) | 1.2 g/h |
| Average CO (10) | 98 g/h |
