Just because the sun goes down or the weather unexpectedly turns chilly doesn’t mean your outdoor dining, entertaining, or outdoor event has to stop. You can comfortably and efficiently warm your outdoor dining and entertaining areas and extend your outdoor entertaining season for several months with our great line-up of Sunpak Patio Heaters. Sunpak Outdoor Infrared patio heaters are produced by Infrared Dynamics, the recognized leader in the outdoor comfort heating industry. Produced with Pride in the USA Since 1966.

Sunpak heaters are simple to operate and use draft free and highly energy efficient infrared radiant energy just like the sun’s warming rays. Sunpak heaters warm objects rather than trying to inefficiently heat the air. Each heater will heat about a 12ft x 12ft area depending on wind conditions. Sunpak heaters have been installed world-wide in thousands of premium residential and discerning commercial installations.

The S34 is a dual stage output controlled with a hand held remote or “On-Off-Hi-Low” wireless wall control (Model TSR Only). All Sunpak heaters are CSA Design Certified and are equipped for clean burning, cost effective, and highly efficient Natural Gas or Propane fuels. Please consult your local building codes for proper installation and safety requirements. Sunpak heaters are design certified for outdoor use and outdoor installations only.



Features:

• Fully Automatic On/Off Control System
• High Efficiency Ceramic Infrared Burner System
• Direct Spark Ignition with Auto Re-light & Flame Sensor System
• Sunpaks can be ceiling or wall mounted
• 34,000 BTU Models
• Dual Stage “TSR” Remote Controlled Unit
• Available in High Temp Powder Coated Aluminized Steel (Black) or “Series 304” Commercial Grade Stainless Steel
• Produced with Pride in Yorba Linda, California, USA





Specifications:

• Measurements: 48” L x 8” H x 8” D
• Mounting Options: Ceiling or Wall
• Approx. Coverage: 12’ x 12’ with minimal wind and at sea level

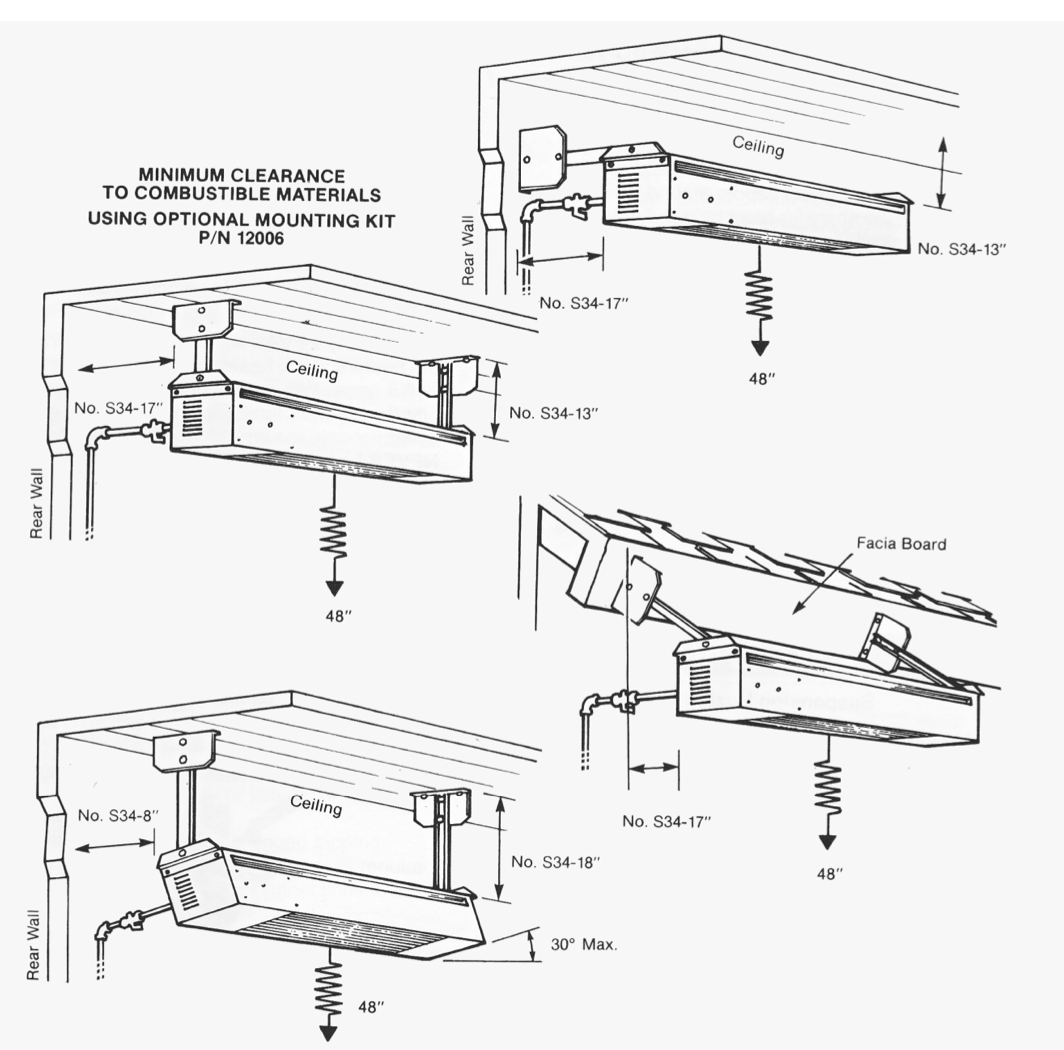

• Clearances: Horizontal: 24” 17” 13” 48”. 30 Deg Max 24” 8” 18” 48”
• Mounting Angles: From Horizontal to a maximum 30 Degrees
• Shipping Weight: S25 & S34 41 Lbs. SST & TSR 51 Lbs.
• Fuel Types: Please Specify Propane or Natural Gas. Minimum Inlet Gas Pressure 6.0” W.C. for Natural Gas and 11.0” W.C. For Propane (LP)
• Requires: S25 & S34 Require Optional Transformer and Mounting Kit (Included in SST & TSR Deluxe Cartons)
• Certifications: CSA (Canadian Standards Association for US & Canada)
