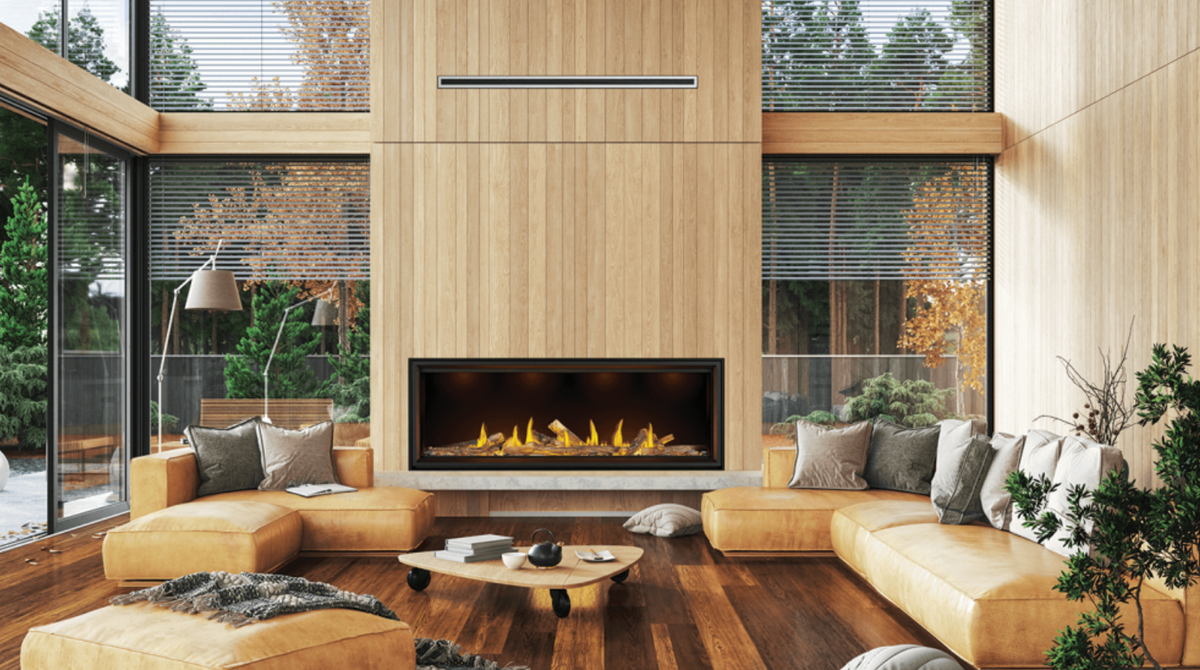

The Tall Vector 74 by Napoleon is a large, modern gas fireplace designed to make a bold statement. It offers impressive flame visuals, efficient fuel use, and excellent heat distribution. With optional DHC & DHM heat management, you can safely place a TV above it and enjoy flexible installation without extra blowers or power venting. Customize your look with a variety of log sets, rocks, glass, and other contemporary or traditional media. The nearly frameless design keeps the focus on the fire, or you can add an optional trim for a more finished look. Set the mood with top lighting and a vibrant LED ember bed. Control your fireplace from your phone using the eFire app or the included remote. The Tall Vector 74 brings luxury, comfort, and striking design to any space.

Main Features:

• Up to 48,000 BTU’s of powerful, comfortable heat

• Premium Safety Barrier included for peace of mind

• Stunning multi-coloured LED ember bed for year-round ambiance

• Choose from Oak, Driftwood, or Birch high-definition log sets

• Multiple designer media kits, Fire Art options, and glass choices to match any style

• Frameless modern design or optional 4-piece finishing trim for a clean, custom look

• MIRRO-FLAME™ reflective panels enhance brightness and flame depth

• Comes with the eFIRE app controller and remote for easy operation

• Easy-access air control for simple adjustments

•  Media-Wall Friendly: Thanks to optional heat-management systems (LHAD, DHC & DHM), the surface directly above the fireplace stays cool enough to install a TV, artwork or electronics seamlessly — no bulky heat shield required.
• NIGHT LIGHT™ system adds a soft glow even when the fire is off

• TV-friendly design supports modern media-wall installations

• Battery backup system ensures operation during power outages

Specifications:

• Model: TLV74N
• Fuel Type: Natural Gas or Propane (NG to LP Conversion Available)
• Max Heat Output: Max Heat Output 48,000 BTU/hr
• Viewing Area (W × H): 76 9/16 X 26 13/16

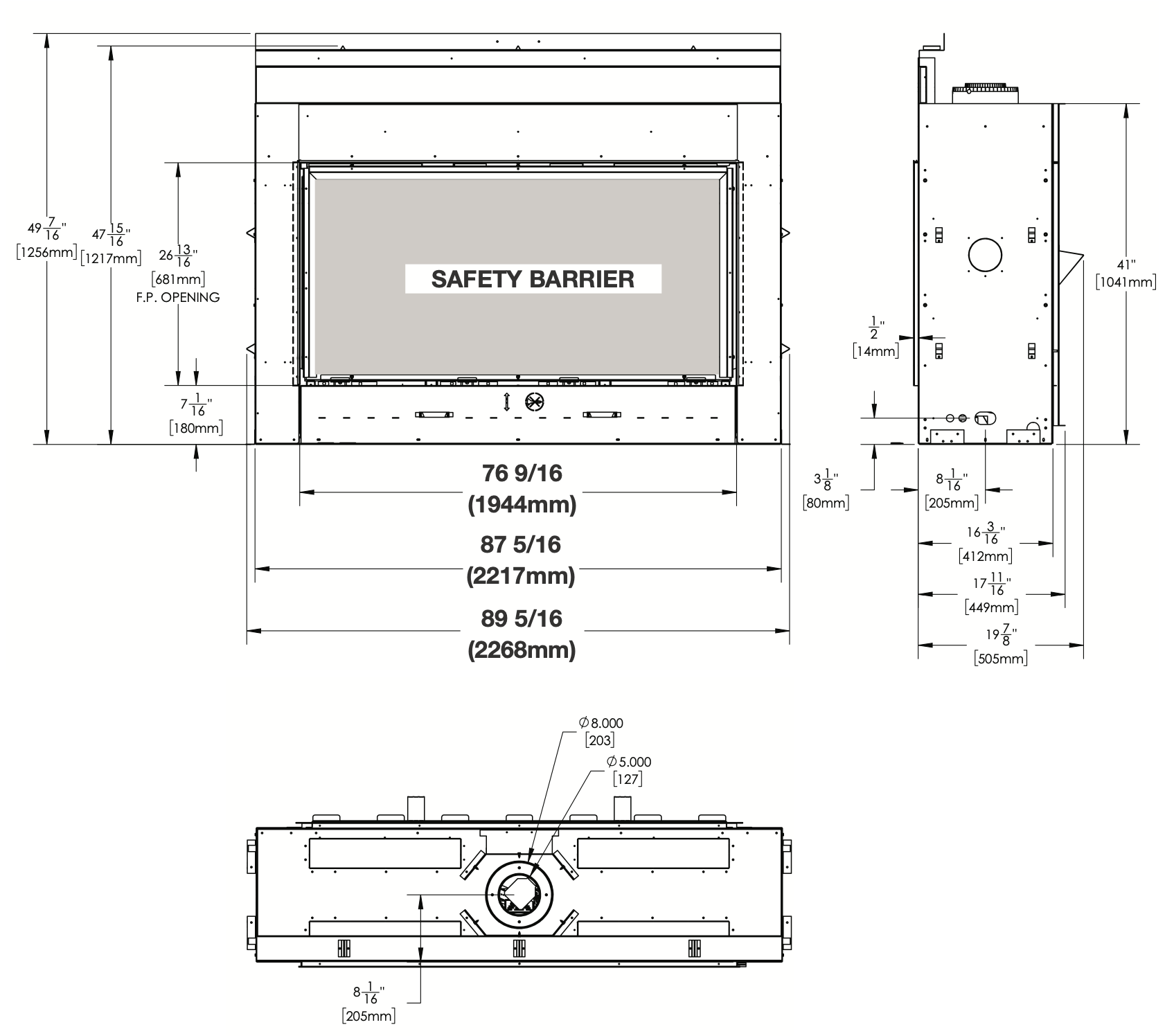

• Unit Dimensions: 89 5/16" W x 47 15/16" H x 19 7/8" D
• Framing Dimensions: 89 13/16" W × 48 3/16" H × 20 1/8" D
• Venting: Direct Vent (5/8")
• Heat Management Compatible: DHC , DHC+, DHM, LHAD
• TV-Friendly Installation: Yes — With Heat Management System
• Ignition & Controls: eFIRE App + Remote Included
• Warranty: President’s Limited Lifetime Warranty
• Manufactured In: Ontario, Canada

Accessories:

• Crushed Glass Media: Choice of Color - Clear, Copper, Black, Blue, and Bronze (Required)
• Log Set: Oak, Driftwood, or Birch (Optional)
• Ember Media Kits: Wrought Iron Globes, Woodland Kit (rocks, glowing embers, charcoal, shale, glass, vermiculite), Mineral Rock Kit (Optional)
• Finishing Trim Kit: Black 5/8" 4-Sided Trim (Optional)
• Heat Circulation: Dynamic Heat Control, Dynamic Heat Control with Blower, Hot Air Distribution (Optional, Required for install below TV)

FAQ's:

Q: Why is this version "Tall"?

A: The Tall Vector series has a taller viewing area than the Vector series, which allows for a better view of the fire (TLV vs LV - 26.81" H vs 18.62" H)

Q: What venting configurations are available?

A: Either rigid or flex venting can be used from the top of the unit. Give us a call and we would be happy to assist with your venting configuration. Call or Text Us
