Overview
The impressive Oakville™ Gas Fireplace Insert has an exclusive dual burner split-flow system that results in a firebox filled with a stunning triple flame pattern and allows the option of independently operating the front and rear burners. A superior heat circulating blower comes included with this model and when paired with the Oakville™'s airflow improvement directional baffles generate maximum blower efficiency. A stunning triple flame and massive viewing area make this fireplace insert a perfect choice for larger rooms where a passion for luxury is evident. We've made installation is simpler, with the ability to slide the firebox all the way to the back of the existing fireplace opening. The perfect solution for replacing and updating an inefficient old masonry setting.
Features:
- Up to 40,000 BTU's featuring a unique and stunning Triple Flame
- Clean Face Design and Flush Finish Accessories
- Slide the unit all the way back into the insert cavity with an optional 45' vent kit
- Exclusive dual burner split flow system allows for full modulation of both front and rear burners from 16,000 up to 40,000 BTU’s;
- Full view design with massive 518 sq. in. viewing area;
- SIT Proflame II Electronic Ignition for easy and reliable startups
- Exclusive NIGHT LIGHT™ radiates a warm glow to the room even when the fireplace is off
- Premium clean face safety barrier maximizes viewing area
- Directional baffles increase air flow for maximum blower efficiency;

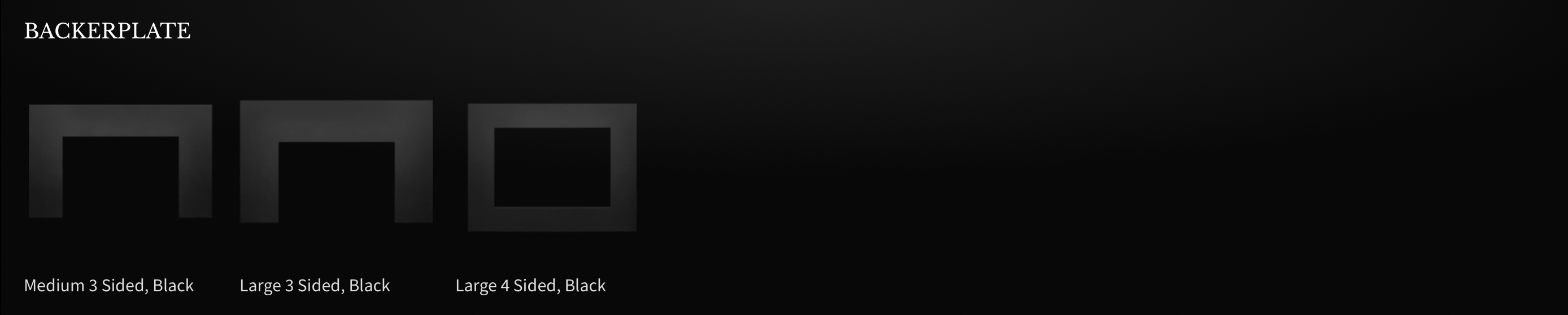

- Clean contemporary faceplates and backerplates available for design flexibility

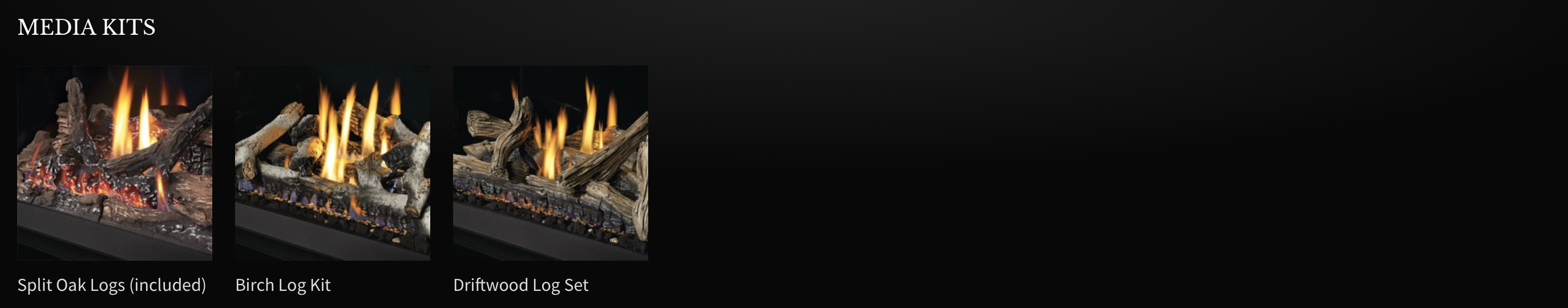

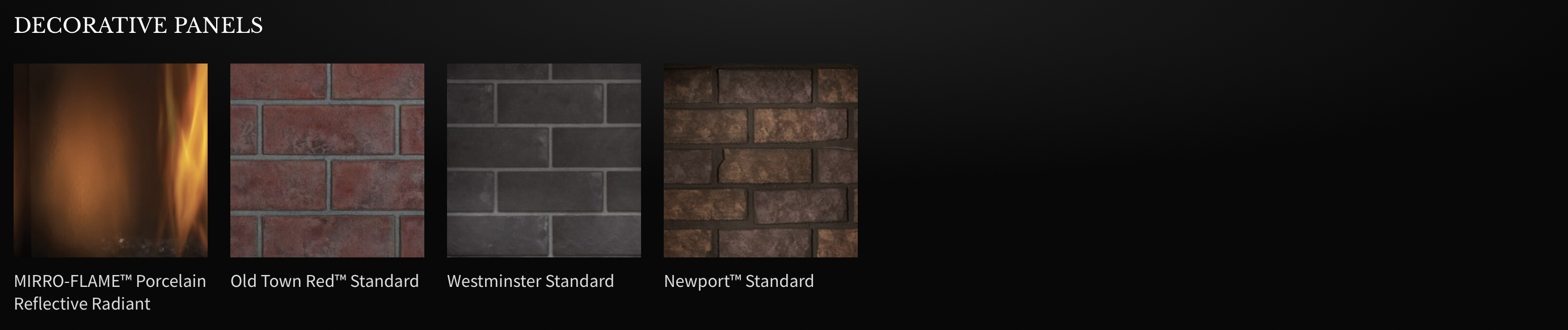

- Wide range of media kits, brick panels and porcelain panels available for endless design possibilities

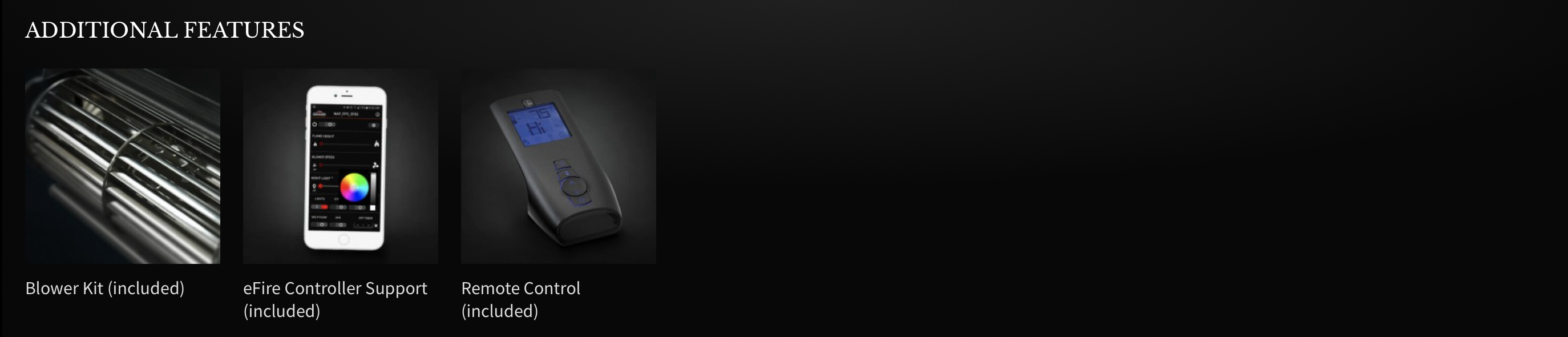

- Superior heat circulating blower included

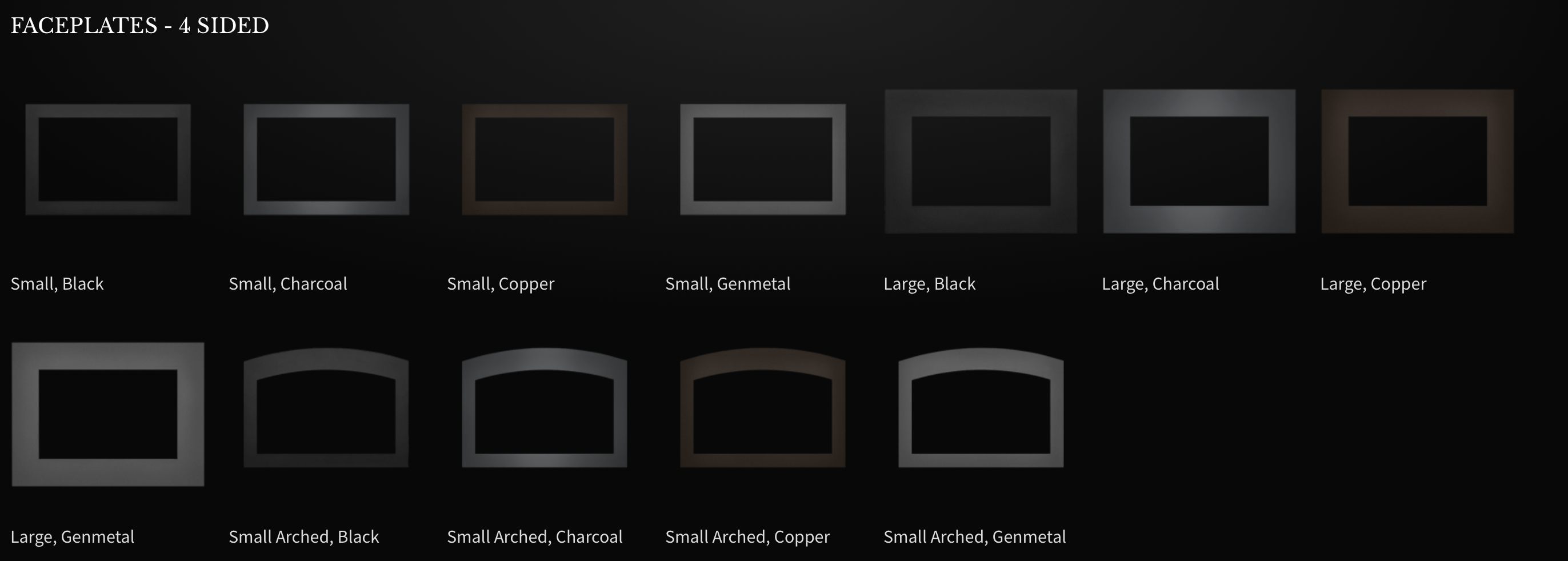

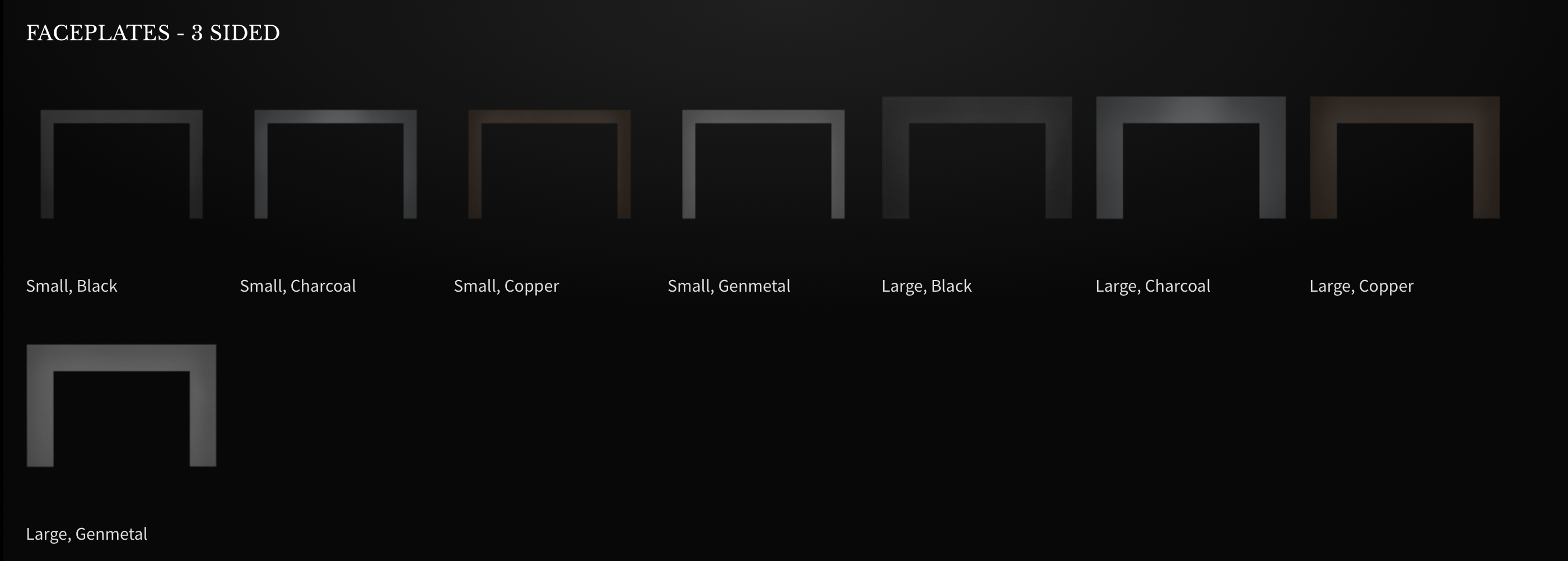

- Optional Faceplates 2.5" and 5" Widths In 3-Sided Or 4-Sided Configurations
- eFIRE enabled with app; remote control included
| Model |
Oakville X4 |
| Warranty |
Presidents Limited Lifetime Warranty |
| Fuel Type |
Natural Gas or Propane (NG-LP Conversion Kit) |
| Max Heat Output |
30,000 BTU |
| Viewing Area |
27.75" x 11.69" |

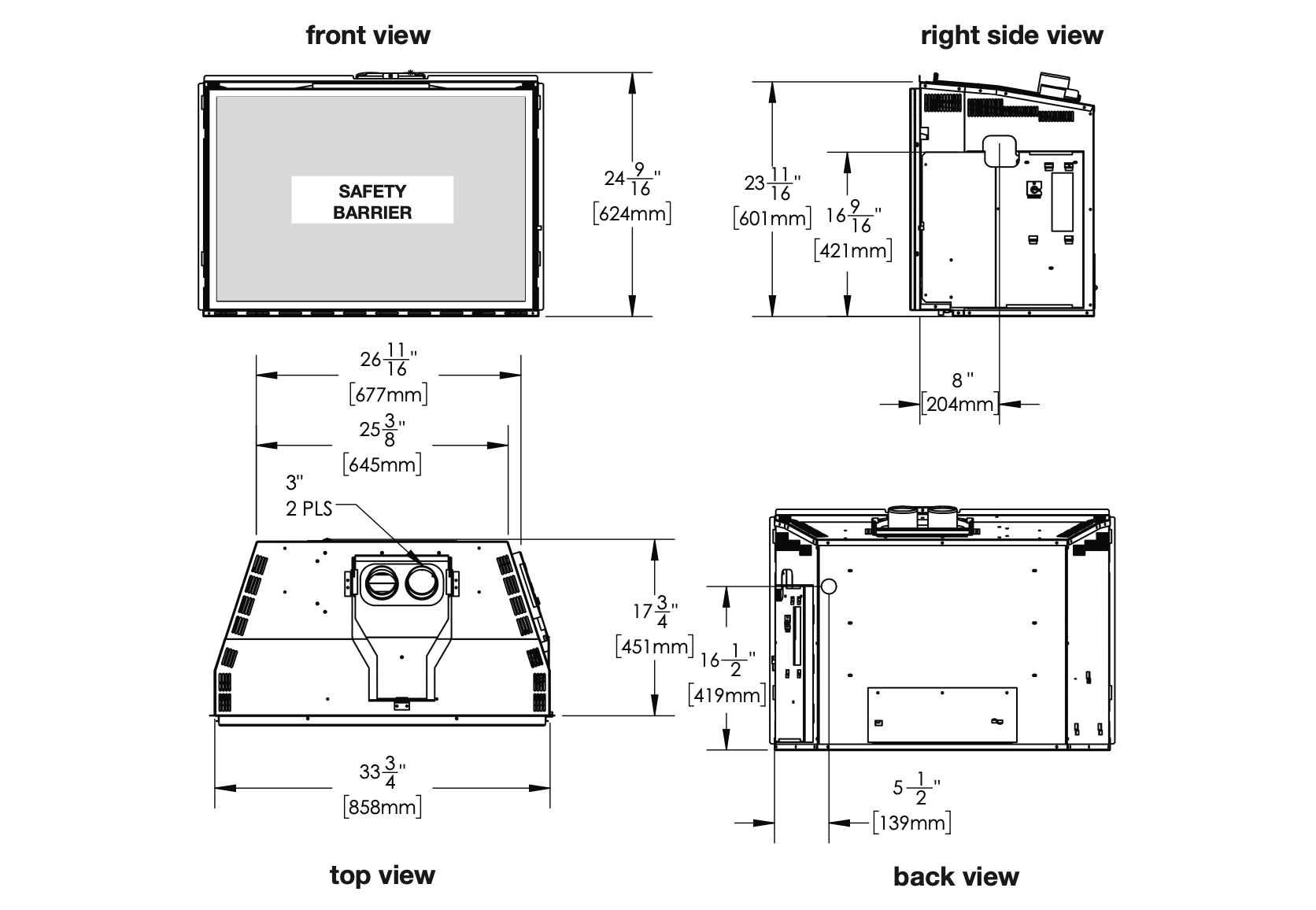

| Fireplace Dimensions |
34.13" W x 24.56" H x 18.75" D |
