Overview
The Carrollton wood insert is available in two sizes, 2.3 and 3.0 cu.ft. interior, and offers a more efficient approach to home heating, utilizing our TFT (Thermal Fin Technology) to add more heat to your home. Standard features include: air-boost timer, ceramic glass, interior brick and baffle, air wash system, 150 cfm blower and a 6" flue outlet. Finish options include: Steel or Cast-Iron warming top (1-required), Surround panels in multiple sizes (1-required) and decorative door trim in multiple finishes.
Features:
-
Thermal Fin heat exchanger creates 32% more surface area than a standard insert design resulting in more heat entering the room.
-
Air-boost timer automatically adjusts the air intake control making startup and reloading easier.
-
Tall opening provides an expansive view of the burning fire.
-
Ceramic glass for extra strength and optimum heat transfer.
-
Unique, integral air wash system keeps the glass clean and clear for a wide-open view of the fire.
-
Precision-cut, heavy-gauge steel provides dependable, long-lasting operation.
-
High-density firebrick retains heat longer, resulting in increased efficiency.
-
One-touch control ensures easy operation and comfort.
-
Standard 150 CFM variable speed blower quickly moves heat from the insert into your room.
-
Choose from several sizes of surround panel kits to match your opening size (1-required)
-
Choose between a steel or cast-iron warming top (1-required).
-
Optional decorative door trim in Brushed Nickel or Nickel allow customization to your style.
-
EPA-certified and Washington State-approved for clean and efficient operation.
-
Limited Lifetime Warranty

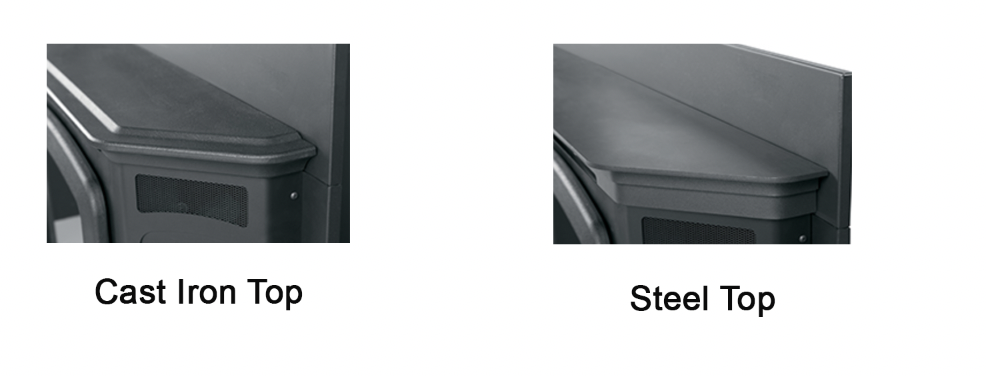

Warming Top Options:
Decorative Door Trim:
Specifications:
| Front Width | 36 5/8" |
| Reat Width (Rear Taper Width) | 24 1/2" (22 1/2" |
| Front Height | 21 3/4" |
| Rear Height | 21 1/4" |
| Depth Into Fireplace | 15 1/2" |
| Flue Diameter | 6" |
| Weight | 390lbs |
