Overview
The Eclipse Elevated
Suitable for our Eclipse heaters, the Affinity Eclipse Controllers allow for incremental adjustment of both heat and light output for precise control, and more settings than ever to enjoy the comforts of your Eclipse outdoor heater.
More Channels Than Ever
The new Affinity Eclipse Series comes in available channel options of 1 or 5 – with each channel allowing for one Eclipse electric heater’s heat and light functions, already included in our Eclipse Portable model.
Wi-Fi & Bluetooth Enabled
All controllers within the Affinity Collection are Wi-Fi & Bluetooth enabled to receive commands from our Bromic Heating App from anywhere within your Wi-Fi network or 30ft via Bluetooth.
Features:
- WiFi, Bluetooth or Ethernet connectivity
- Complete control of heat output with On/Off and Dimming functionality
- Multi-heater management of unlimited connected controllers
- Create heater grouping within zones
- Timer & schedule settings
- Voice control integration with Amazon Alexa & Google Home
- Manage multiple sites from one app
- Admin control with multi-user management
- Connect with home automation or building management systems
Specifications:
- No. Of Channels - 1 CH
- Voltage-Max Capacity Per Channel - 220-240V – 4kW
- Operating Temperature Range - 4°F to +86°F
- Non-Operating Temperature Range - 22°F to +158°F
- Protection Rating - IP54

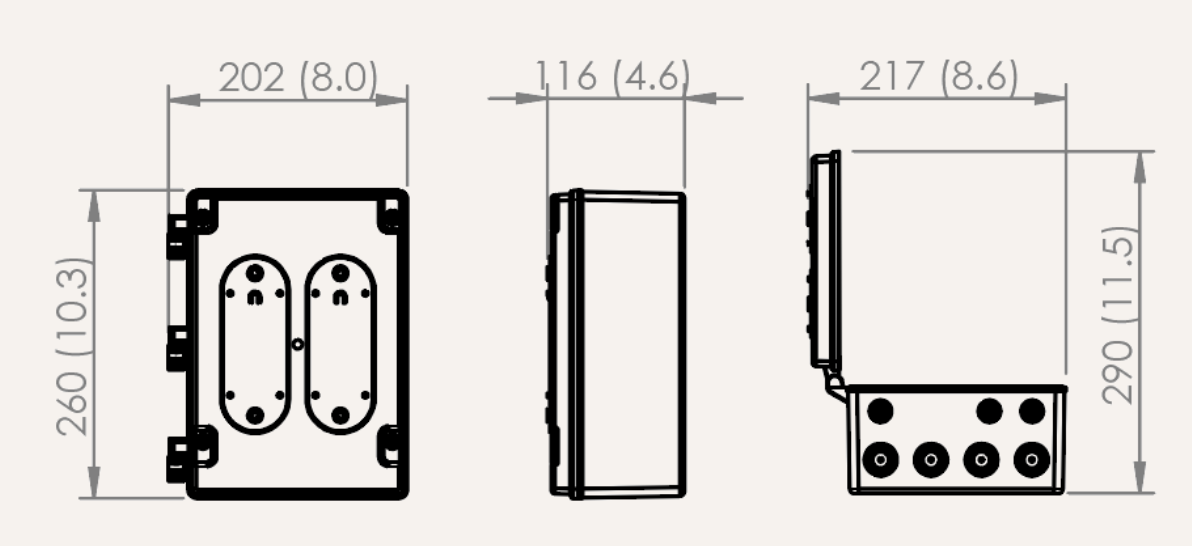

- Dimensions - 11.4 x 8.0 x 4.4″
- Weight - 3.5 lbs
- Wifi Connectivity - 2.4GHZ
- Warranty - 1 Year Parts
- Heater Compatibility - Eclipse Electric
