Overview
The Ventis HES170 medium sized single cast iron door wood burning stove on pedestal is recommended for heating smaller spaces from 500 to 1, 800 sq. ft. The firebox is lined with refractory bricks for better heat distribution with a fresh air intake allows for mobile home & alcove installation. The HES170 offers non-catalytic combustion technology and top heat deflector and side shields. This unit has a 6hr Maximum Burn Time, can hold 18" logs and is EPA 2020 approved.
Features:
â–ªMedium size wood stove on pedestal
â–ªSuitable for smaller spaces
â–ªEPA certified at only 1.26 g/h
â–ªSolidity and manufacturing quality
â–ªNon-catalytic combustion technology
â–ªInstallation authorized on the Island of Montreal
â–ªCast iron door
â–ªTop heat deflector and side panels
â–ªStainless steel heat shield added to the firestop
| Alcove installation approved | Yes |
|---|---|
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | CAN/USA accredited laboratory |

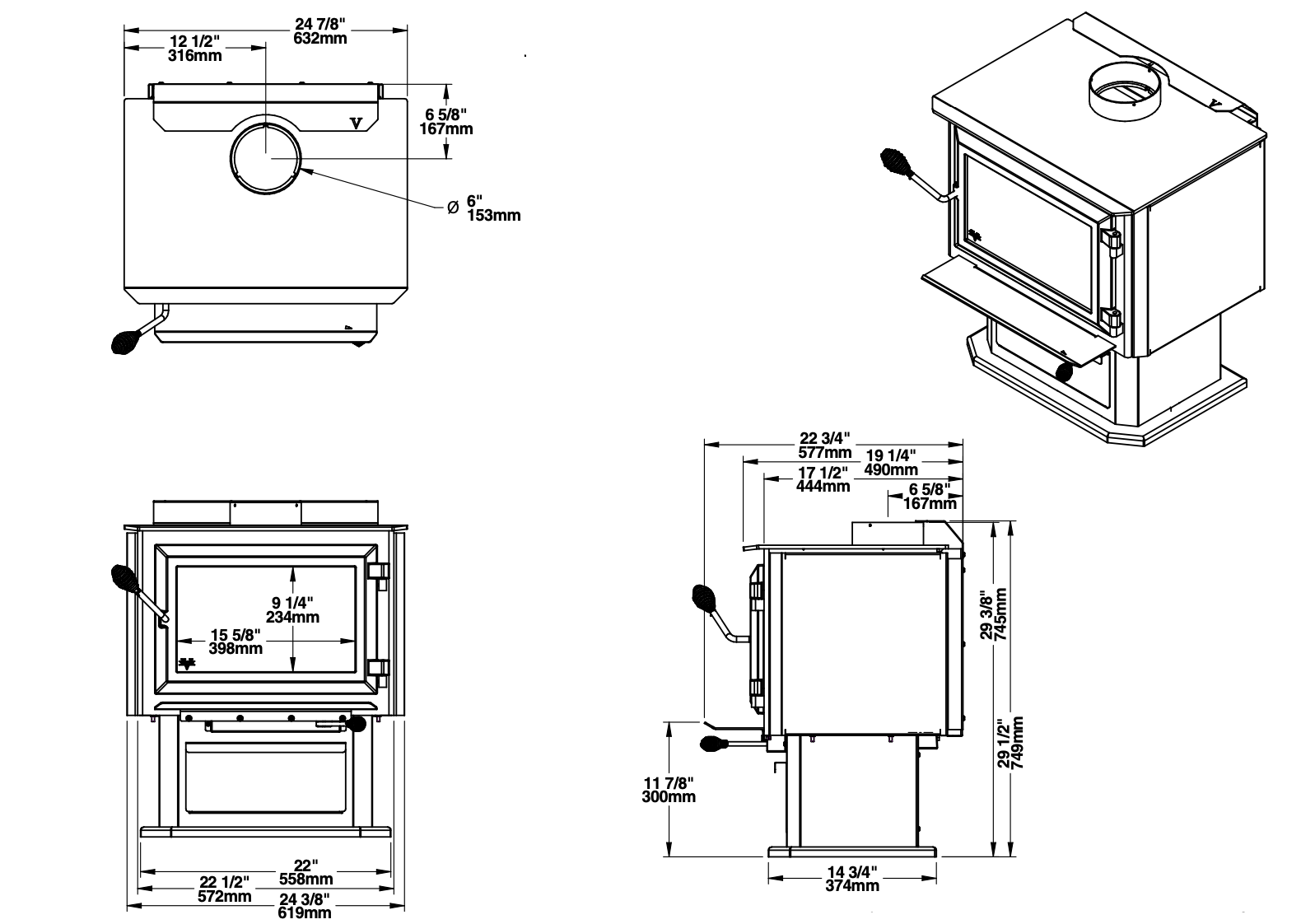

| Overall dimension (Width) | 24 7/8" |
| Overall dimension (Height) | 29 1/2" |
| Overall dimension (Depth) | 22 3/4" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12' |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 17 1/4" |
| Door opening size (Height) | 8" |
| Glass type | Single, glass with cast iron frame |
| Glass surface - W x H | 15 5/8" x 9 1/4" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 5/16" |
| Firebox size (Width) | 19 5/8" |
| Firebox size (Height) | 11 7/8" |
| Firebox size (Depth) | 13 1/2" |
| Log positioning | Loading over width |
| Maximum log length | 18" |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 certified |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited lifetime |
| Shipping weight | 328 lb (149 kg) |
Appliance performance
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Recommended heating area (9) | 500 - 1,800 ft² |
| EPA loading volume | 1.44 ft³ |
| Maximum burn time (9) | 6 h |
| Maximum heat output-dry cordwood (4) | 65,000 BTU/h |
| Minimum overall heat output rate (4) (5) | 15,650 BTU/h (4.6 kW) |
| Maximum overall heat output rate (4) (5) | 23,300 BTU/h (6.83 kW) |
| Average overall efficiency-dry cordwood (HHV) (5) (6) | 70 % |
| Average overall efficiency-dry cordwood (LHV) (5) (7) | 75 % |
| Optimum efficiency (1) (2) | 78 % |
| Optimum heat transfer efficiency (8) | 74 % |
| Average particulate emission rate (3) | 1.26 g/h |
| Average CO (10) | 58 g/h |
