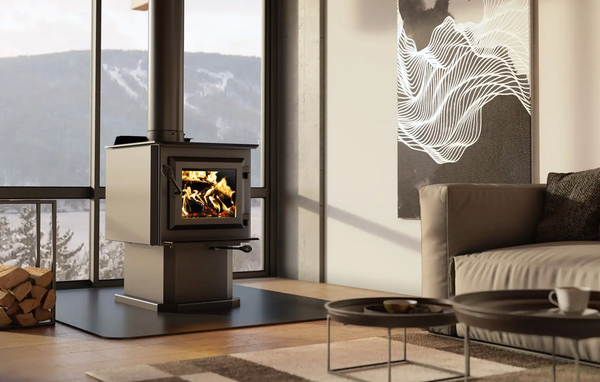

Ventis HES140 Wood Stove - VB00023 TAX CREDIT QUALIFIED

Now: $1,959.00

| Model #:
VB00023

"*" INDICATES REQUIRED FIELDS

Clear All

Please select all the required options

Ventis HES140 Wood Stove - VB00023 TAX CREDIT QUALIFIED

In Stock

Now: $1,959.00

 Manual              Spec Sheet         Tax Credit Form


Features:
  • Small wood stove on pedestal
  • EPA certified at only 1.8 g/h
  • Solidity and manufacturing quality
  • Non-catalytic combustion technology
  • Installation authorized on the Island of Montreal
  • Cast iron door
  • Top heat deflector and side panels
  • Stainless steel heat shield added to the firestop


Optional Accessories:
  • Variable Speed Blower Kit
  • Rigid Firescreen Barrier
  • 5" Fresh Air Intake Kit


General Features:
Alcove installation approved Yes
Mobile home approved Yes, with fresh air intake
Certified according to applicable standards CAN/USA accredited laboratory

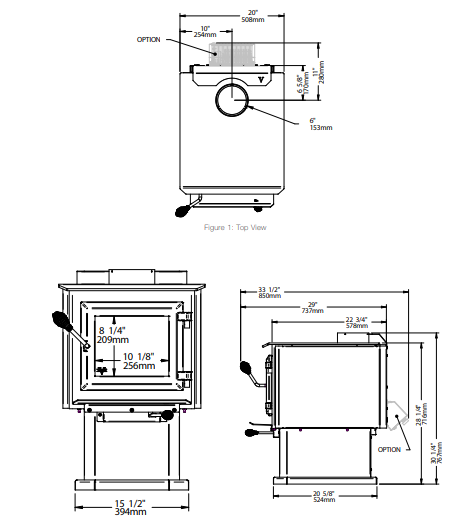

Overall dimension (Width) 20''
Overall dimension (Height) 30 1/4''
Overall dimension (Depth) 29''
Premium quality blower included (CFM) Optional
Combustion technology Non-catalytic
Stainless-steel secondary-air system Yes
Flue outlet diameter 6"
Recommended chimney diameter 6"
Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height 12'
Door type Single, glass with cast iron frame
Door opening size (Width) 12"
Door opening size (Height) 7 5/8"
Glass type Ceramic glass
Glass surface - W x H 10 1/8" x 8 1/4"
Steel thickness-body 3/16"
Steel thickness-top 5/16"
Firebox size (Width) 14 1/4"
Firebox size (Height) 11 3/4"
Firebox size (Depth) 19 1/8"
Log positioning Loading over depth
Maximum log length 17"
Firebox lined with refractory bricks Yes
Baffle type High quality vermiculite
High-efficiency certified appliance Yes, EPA 2020 certified
Canadian Standard (emissions) CSA B415.1-10
USA Standard (emissions) EPA
Canadian Standard (safety) ULC S627
USA Standard (safety) UL 1482, UL 737
Warranty Limited lifetime
Shipping weight 282 lb (128 kg)




Appliance Performance:
Fuel type Dry cordwood (16" recommended)
Recommended heating area (9) 250 - 1,200 ft²
Overall firebox volume 1.8 ft³
EPA loading volume 1.55 ft³
Maximum burn time (9) 5 h
Maximum heat output-dry cordwood (4) 45,000 BTU/h
Minimum overall heat output rate (4) (5) 12,124 BTU/h (3.55 kW)
Maximum overall heat output rate (4) (5) 26,700 BTU/h (7.83 kW)
Average overall efficiency-dry cordwood (HHV) (5) (6) 74 %
Average overall efficiency-dry cordwood (LHV) (5) (7) 79 %
Optimum efficiency (1) (2) 80 %
Optimum heat transfer efficiency (8) 79 %
Average particulate emission rate (3) 1.8 g/h
Average CO (10) 74 g/h
