Overview
The Ventis HES350 Wood Insert with Blower is a 3.5 cu. ft. black freestanding pedestal fireplace with a heating capacity of between 1,000 to 12,700 sq. ft. A perfectly designed solution to heat your home and has a max log length of 22". This unit is 2020 EPA Certified.
The Ventis HES350 qualifies for a biomass stove tax credit! What does that mean? How do you take advantage of this credit? Please see our blog explaining the process.
See the Tax Credit Certificate here.
Features:
- Extra-large wood stove on pedestal
- EPA certified at only 1.6 g/h
- Solidity and manufacturing quality
- C-Cast heat shield added to the firestop â–ªNon-catalytic combustion technology
- Installation authorized on the Island of Montreal
- Cast iron door
- Top heat deflector and side panels
Optional Accessories:
- Blower Kit with Variable Speed Control
- Rigid Firescreen
- Fresh Air Intake
General Features:
| Alcove installation approved | Yes |
|---|---|
| Mobile home approved | Yes, with fresh air intake |
| Certified according to applicable standards | CAN/USA accredited laboratory |

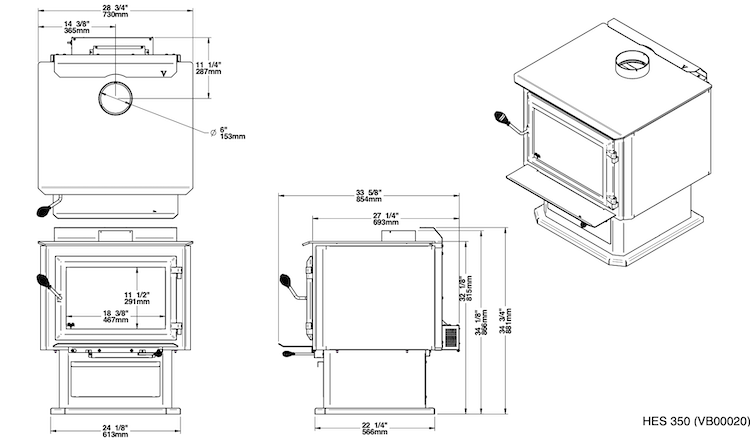

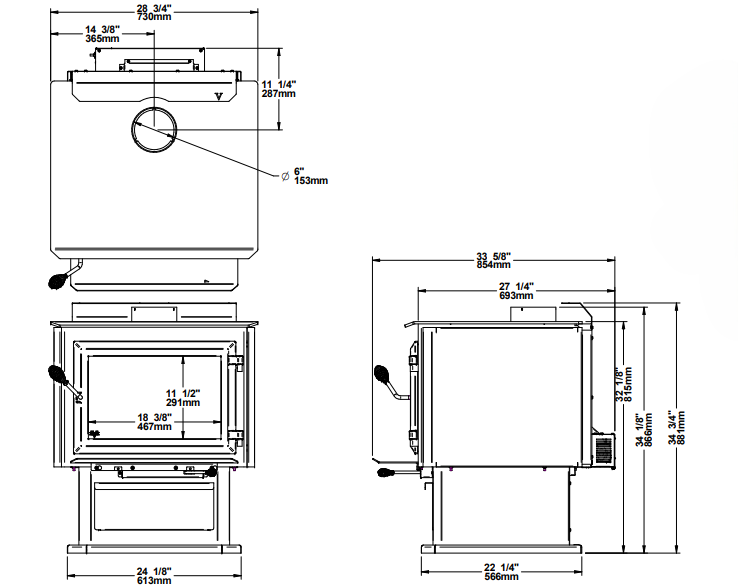

| Overall dimension (Width) | 28 3/4" |
| Overall dimension (Height) | 34 3/4" |
| Overall dimension (Depth) | 30 5/8" |
| Premium quality blower included (CFM) | Optional |
| Combustion technology | Non-catalytic |
| Stainless-steel secondary-air system | Yes |
| Flue outlet diameter | 6" |
| Recommended chimney diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height | 12' |
| Door type | Single, glass with cast iron frame |
| Door opening size (Width) | 19" |
| Door opening size (Height) | 9 1/4" |
| Glass type | Ceramic glass |
| Glass surface - W x H | 18 3/8" x 11 1/2" |
| Steel thickness-body | 3/16" |
| Steel thickness-top | 5/16" |

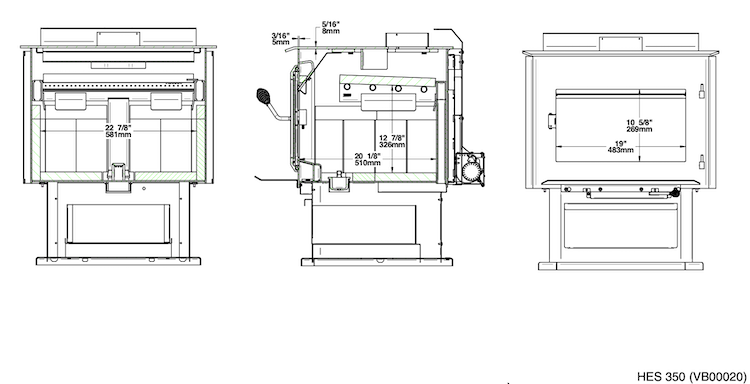

| Firebox size (Width) | 22 7/8" |
| Firebox size (Height) | 12 3/4" |
| Firebox size (Depth) | 20 1/8" |
| Log positioning | Loading over width and over depth |
| Maximum log length | 22" |
| Firebox lined with refractory bricks | Yes |
| Baffle type | High quality vermiculite |
| High-efficiency certified appliance | Yes, EPA 2020 certified |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA Standard (emissions) | EPA |
| Canadian Standard (safety) | ULC S627 |
| USA Standard (safety) | UL 1482, UL 737 |
| Warranty | Limited lifetime |
Appliance Performance:
| Fuel type | Dry cordwood (16" recommended) |
|---|---|
| Recommended heating area (9) | 1,000 - 2,700 ft² |
| Overall firebox volume | 3.5 ft³ |
| EPA loading volume | 2.88 ft³ |
| Maximum burn time (9) | 10 h |
| Maximum heat output-dry cordwood (4) | 110,000 BTU/h |
| Minimum overall heat output rate (4) (5) | 17,200 BTU/h (5.0 kW) |
| Maximum overall heat output rate (4) (5) | 57,800 BTU/h (16.9 kW) |
| Average overall efficiency-dry cordwood (HHV) (5) (6) | 71 % |
| Average overall efficiency-dry cordwood (LHV) (5) (7) | 76 % |
| Optimum efficiency (1) (2) | 77 % |
| Optimum heat transfer efficiency (8) | 75 % |
| Average particulate emission rate (3) | 1.6 g/h |
| Average CO (10) | 73 g/h |
